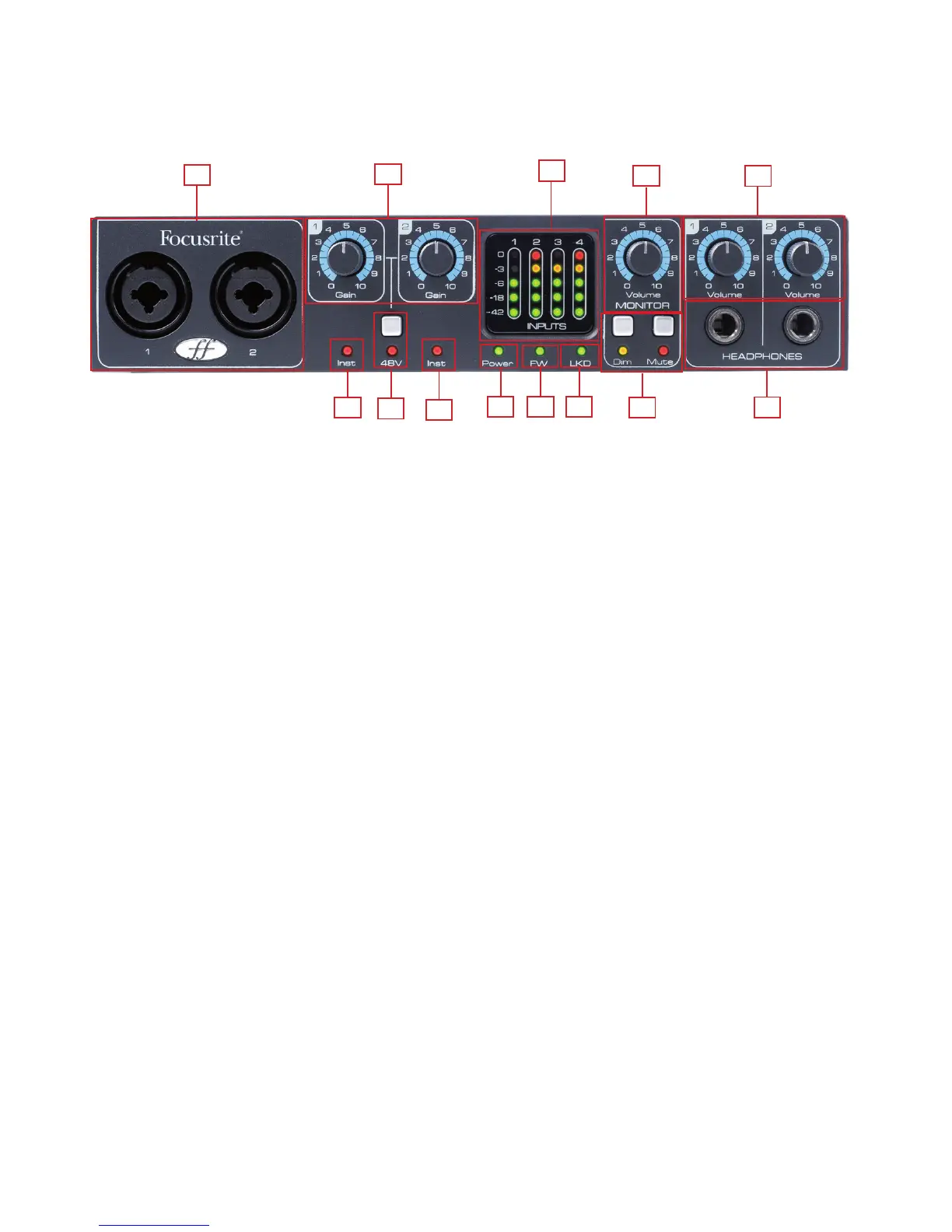

Front Panel
The Front Panel includes the input connectors for Mic, Line and Instrument signals, as well as the input gain controls and
monitoring controls.
1 Channels 1 and 2 with Combo XLR input sockets for Mic / Line / Instrument
2 Channels 1 and 2 Gain control
3 Channels 1 and 2 Instrument LEDs
4 Phantom power switch with LED for Mic inputs 1-2
5 Power LED - Lit when the unit receives power from FireWire or external power supply unit
6 FW (Active) LED - Lit when the unit connects to the FireWire driver
7 LKD (Locked) LED - Lit when the unit locks to its internal clock, or to an external clock source
8 Separate 5 LED meter for each input channel -42, -18, -6, -3, 0
9 Monitor Level control
10 Monitor Dim and Mute switches with associated LED’s
11 Headphones 1 and 2 level control
12 Headphones 1 and 2 output ¼” jacks
1
8
9
11
2
4
6
3
7
3
5
10
12
