Reference # Description Part #
1 Fan motor, evaporator 00104919
2 Bracket, fan motor 00104927
3 Fan blade 00104935
4 Fan guard 00104943
5 Evaporator (includes parts above) 00104885
6 Filter drier & capillary tube 00103267
7 Compressor 00104950
8 Starting capacitor 00104968
Not shown Starting relay 00104976
Not shown Overload protector 00104984
9 Condenser fan motor 00104992
10 Condenser fan blade 00105007
Not shown Fan motor bracket 00157412
11 Condensing unit 00105106
12 Wiring strain relief 00105577
13 Condenser 00105619
Not shown Cap, starting capacitor 00105627
14 Shroud, condenser 00157347
15 Drain tube, evaporator (includes clamp) 00121681

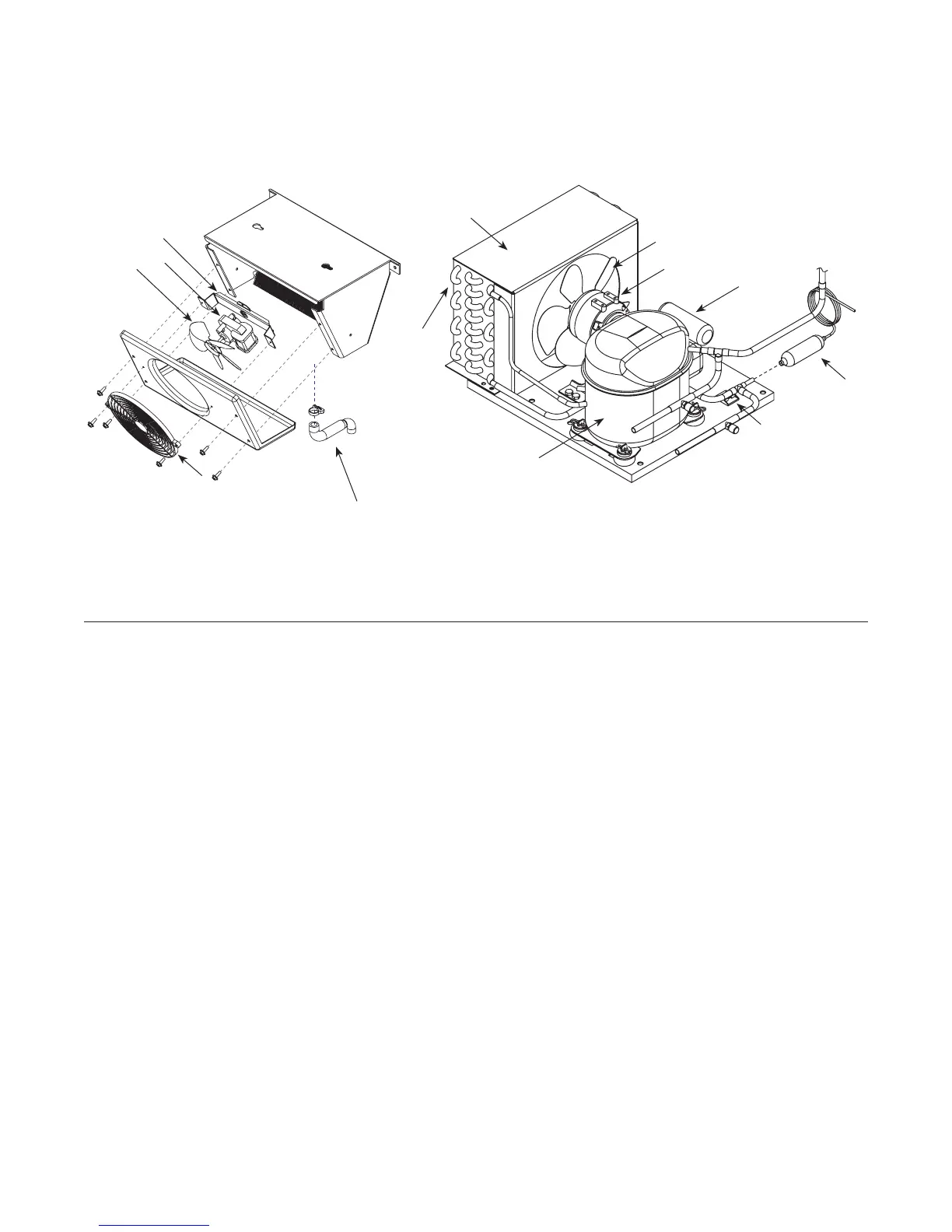

Replacement parts
Refrigeration
Evaporator - Reference #5
Condensing unit - Reference #11
