FOLSOM IP-2003 - Installation; Imagepro Rear Panel Connectors

Manual # 26-0302000-00 / Revision E ImagePRO – Multi Format Image Processor
7
Installation
ImagePRO™ Rear Panel Connectors
UNIVERSAL INPUT 1
IN
LOOP
IN
LOOP
UNIVERSAL INPUT 2
H/C
G/Y/COMPOSITER/R-Y/C
UNIVERSAL INPUT 3
B/B-Y
V
IN IN IN
IN IN
LOOP
H/C
UNIVERSAL INPUT 3
G/Y/COMPOSITE
R/R-Y/C
B/B-Y
V
LOOP LOOP LOOP
LOOP
OUTPUT OUTPUT 1
S-VIDEO
R/R-Y
G/Y/COMPOSITE B/B-Y
GENLOCK INOUTPUT 2
COMPOSITE
OUTPUT
H/C V
H/C/BURST
REMOTE CONTROL
RS-232
ETHERNET
V

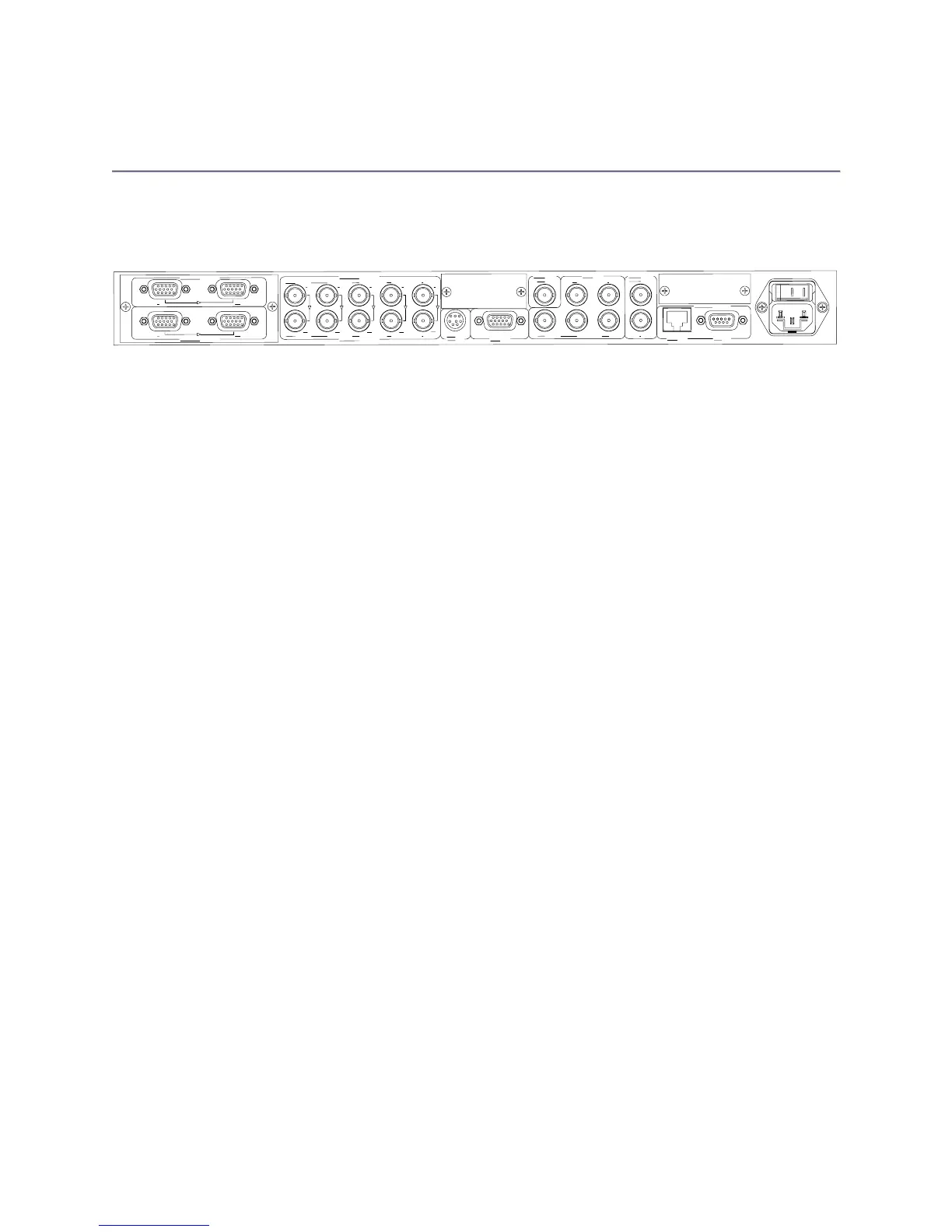

Figure 2-1: ImagePRO™ Rear Panel
Video Input BNC connectors with loop-through (Universal Input 3)
Video Input HD-15 connectors with loop-through (Universal Inputs 1 & 2)
Video Output BNC connectors (Output 2)
Video Output HD-15 connectors (Output 1)
S-video on 4-pin mini-DIN connector
Composite Output BNC
Genlock BNCs
Remote Control RJ-45 Ethernet Connector
Remote Control RS-232 DB-9 Connector
AC Power connector
