Manual # 26-0302000-00 / Revision E ImagePRO – Multi Format Image Processor
15
RS-232 Remote Control Connections
The Remote serial port can be connected to a PC or other Remote Controller to support remote control of the
ImagePRO
TM

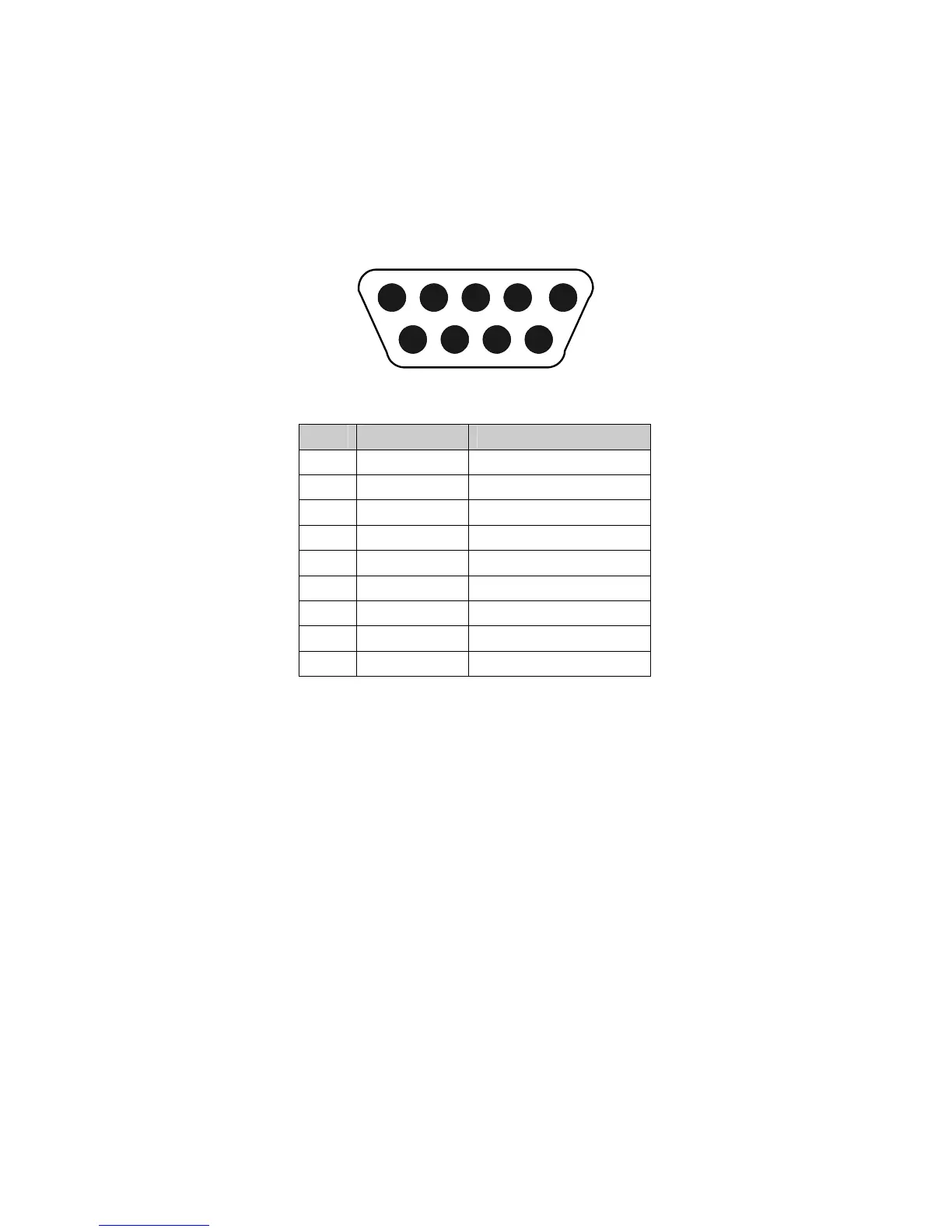

unit. Pinouts for the remote port are shown below.
1 2 3 4 5
6 7 8 9
DB-9 RS-232 Signal Description
1 CD Carrier Detect
2 RXD Received Data
3 TXD Transmitted Data
4 DTR Data Terminal Ready
5 GND Signal Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Unused
Refer to Section 3, SYSTEM: RS-232 Menu, for configuring the hardware handshake.
