FOLSOM IP-2003 - Imagepro-HD Rear Panel Connectors

Manual # 26-0302000-00 / Revision E ImagePRO – Multi Format Image Processor
9
ImagePRO-HD™ Rear Panel Connectors
RS-232
REMOTE CONTROL
H/C
GENLOCK IN
H/C/BURST
DVI-D OUTPUT
OUTPUT 2
H/C
V
SDI OUTPUT
OUTPUT
COMPOSITE
SDI INPUT
V
G/Y/COMPOSITE
B/B-Y
UNIVERSAL INPUT 3
R/R-Y/C
UNIVERSAL INPUT 1
H/C
V
ETHERNET
B/B-Y
G/Y/COMPOSITE
OUTPUT 1
V
S-VIDEO
OUTPUT
G/Y/COMPOSITE
B/B-Y
UNIVERSAL INPUT 3
R/R-Y/C
UNIVERSAL INPUT 2
R/R-Y
INININ
ININ
LOOP
IN
LOOPLOOPLOOP
LOOPLOOP
LOOP
IN

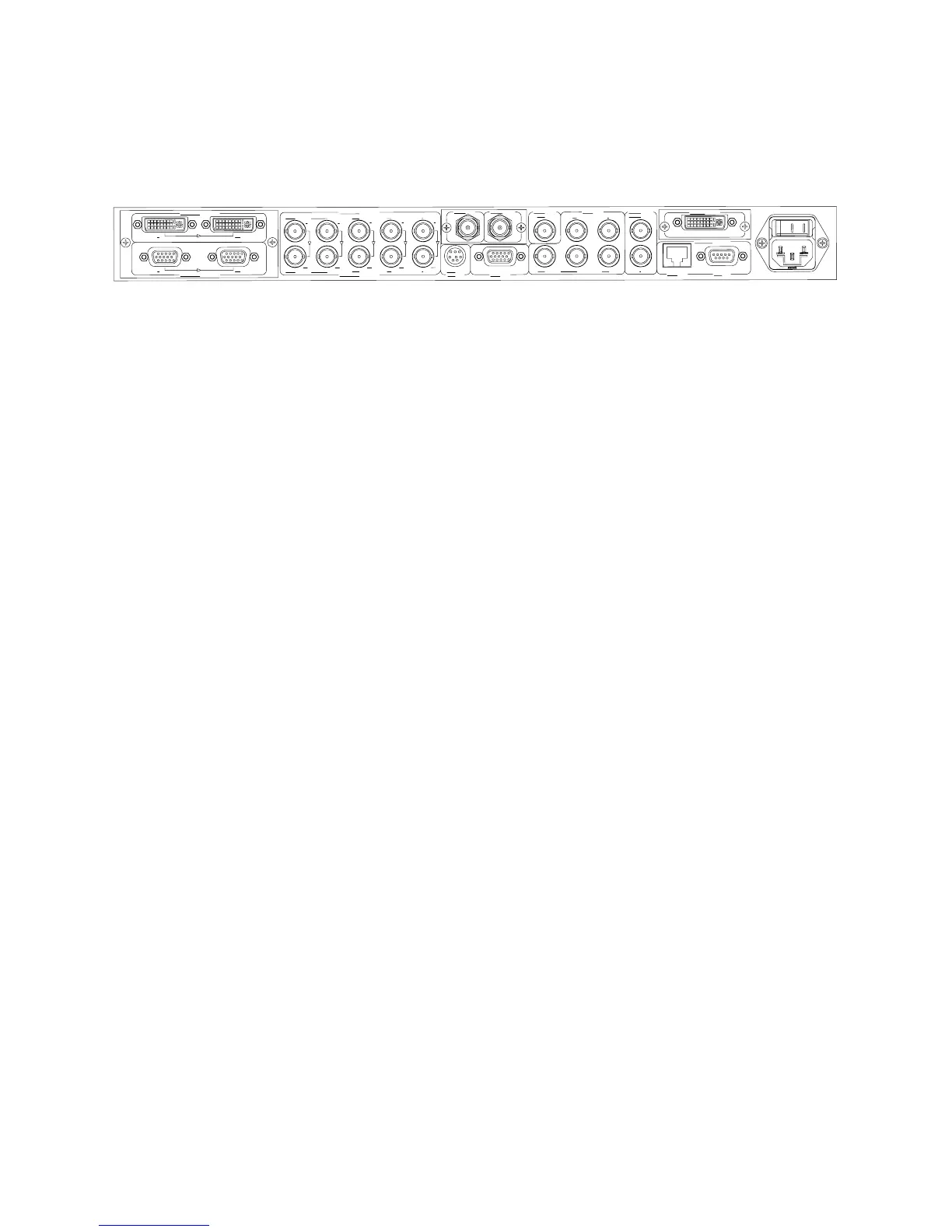

Figure 2-3: ImagePRO-HD™ Rear Panel
Video Input BNC connectors with loop-through (Universal input 3)
Video Input HD-15 connectors with loop-through (Universal input 2)
Digital / Analog Video Input on DVI-I Connector with loop-through (Universal input 1)
Standard Definition/High Definition SDI Digital Video Input BNC
Video Output BNC connectors (Output 2)
Video Output HD-15 connectors (Output 1)
DVI Digital Video Output on DVI-D Connector
S-video on 4-pin mini-DIN connector
Composite Output BNC
Genlock BNCs
Standard Definition/High Definition SDI Digital Video Output BNC
Remote Control RJ-45 Ethernet Connector
Remote Control RS-232 DB-9 Connector
AC Power connector
