FOLSOM IP-2003 - Video Output Connections

12 ImagePRO – Multi Format Image Processor Manual # 26-0302000-00 / Revision E
Video Output Connections
Four independently buffered outputs (one five wire BNC connection, one HD-15, one S-Video, and one Composite
video BNC) are provided. Both 5-wire and HD-15 outputs provide the same Video in RGB or YPbPr format. Outputs
are available depending on the resolution selected. For example, RGB video at 1024x768@60Hz
will be available
both on the 5-wire BNC and HD-15 outputs. Likewise, NTSC Video will be available on the Composite, S-Video and
SDI output connectors.
The operator can select the type of output sync to match application requirements. Separate C (Composite) or
separate H/V (Horizontal/Vertical) as well as sync on Green Video sync modes are supported.

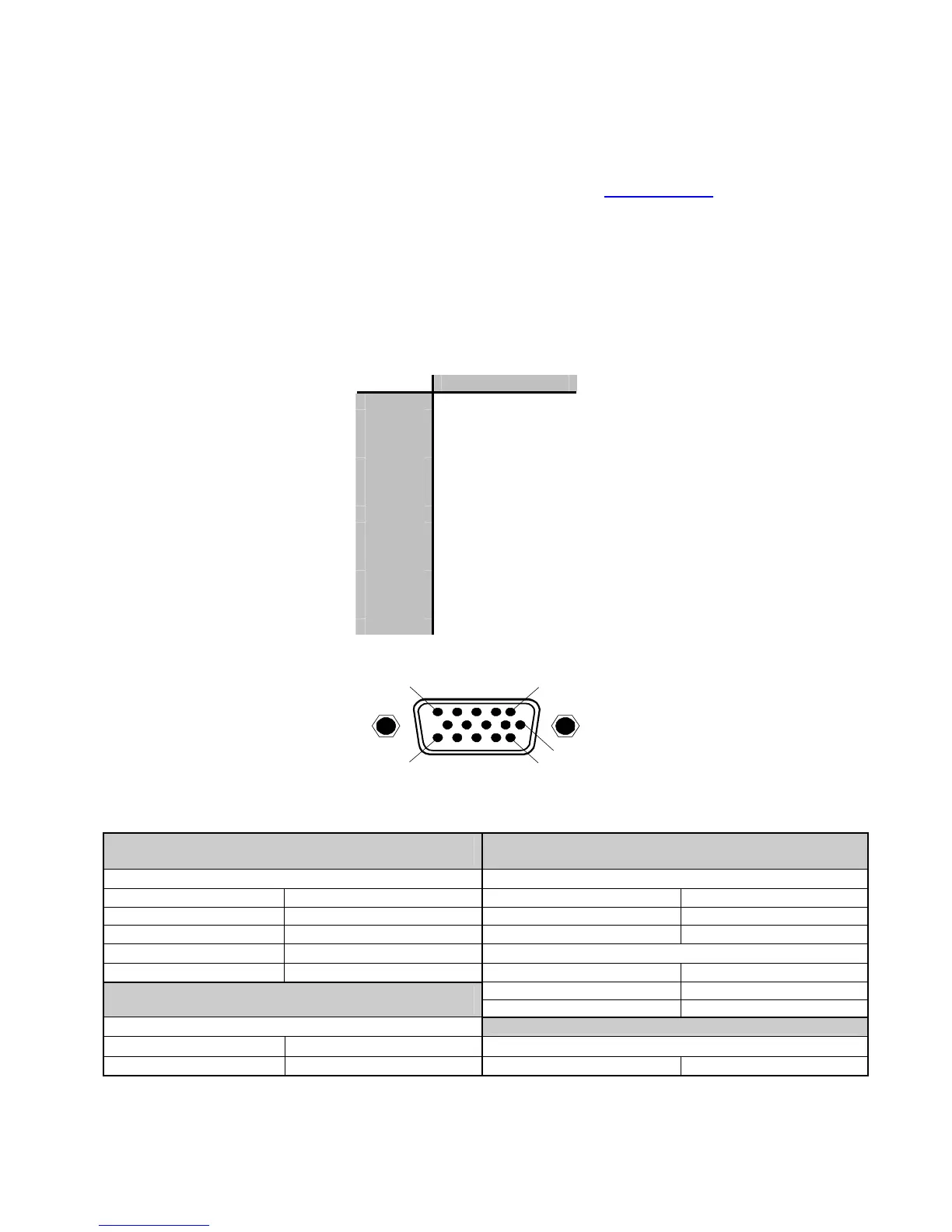

HD-15 Output Connector Pinout
RGB Output
Pin 1
RED
Pin 2
GREEN
Pin 3
BLUE
Pin 4
Pin 5
Pin 6
RED return
Pin 7
GREEN return
Pin 8
BLUE return
Pin 9
Pin 10
GND
Pin 11
Pin 12
Pin 13
Hsync or Csync
Pin 14
Vsync
Pin 15
15
1115
6
HD-15 Output Connector Pinout
(as viewed from rear of unit)
Format – RGB
(Typical Devices: Monitor/Plasma/Projector)
Format – YUV or Y Pr Pb (Betacam)
(Typical Devices: Betacam Deck)
Sourced from ImagePRO
TM
Sourced from ImagePRO
TM
R R/R-Y/C Y G/Y/COMPOSITE
G G/Y/COMPOSITE Pr R/R-Y
B B/B-Y Pb B/B-Y
H H/C or
V V Y G/Y/COMPOSITE
U R/R-Y
Format – S-Video (Y/C)
(Typical Devices: S-Video VCR,Monitor)
V B/B-Y
Sourced from ImagePRO
TM
Format – Composite (Typical Devices: NTSC/PAL VCR,Monitor)
Y G/Y/COMPOSITE Sourced from ImagePRO
TM
C B/B-Y NTSC/PAL/SECAM G/Y/COMPOSITE
*NOTE: Composite sync or separate Hsync and Vsync signals as well as Sync on Green are supported.
