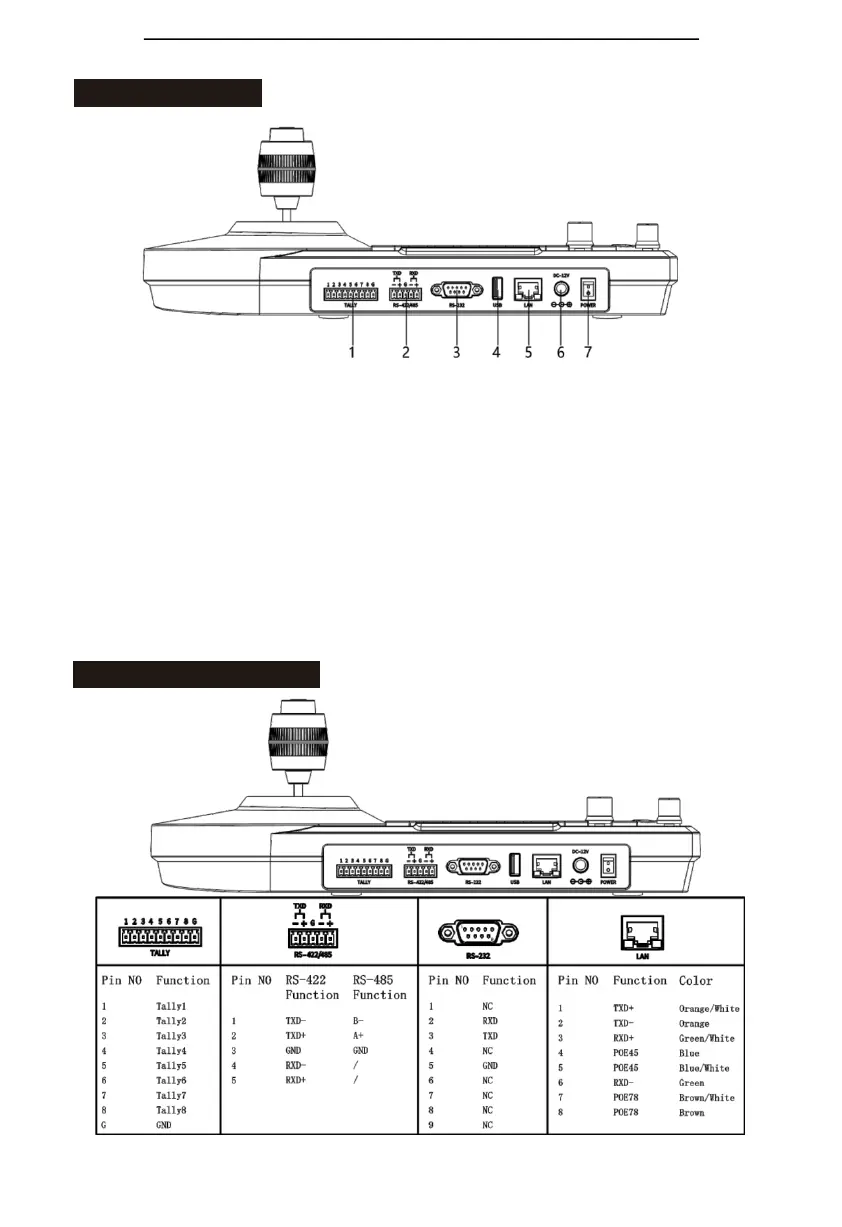

Product diagram
- 6 -
Interface:
1. Tally interface;
2. RS-422/485 interface;
Connect with RS-422 cable, up to 7 cameras can be controlled through VISCA protocol; Connect
with RS-485 cable, up to 7 cameras can be controlled through VISCA protocol and up to 255
cameras through PELCO protocol.
3. RS-232 interface;
Connect with RS-232 cable, up to 7pcs cameras can be controlled through VISCA and and up to
255pcs cameras through PELCO protocol.
4. USB interface (reserved interface, no function);
5. LAN port, connect the controller with network (up to 1000 network cameras can be saved);
6. DC-12V power input interface;
7. Power on/off.
Interface pin definition
