2 SAFETY PRECAUTIONS
To operate properly, this back-up system requires the monitor to be
connected to a 9-36 Volt Direct Current power source (Current limited
1.2A). To avoid an electric shock injury or damage to the system, we
recommend that a qualified technician with appropriate training and
experience be obtained to perform this critical connection. A wiring
diagram to make this connection is provided below at paragraph 4.2.2.
3 SYSTEM DESCRIPTION

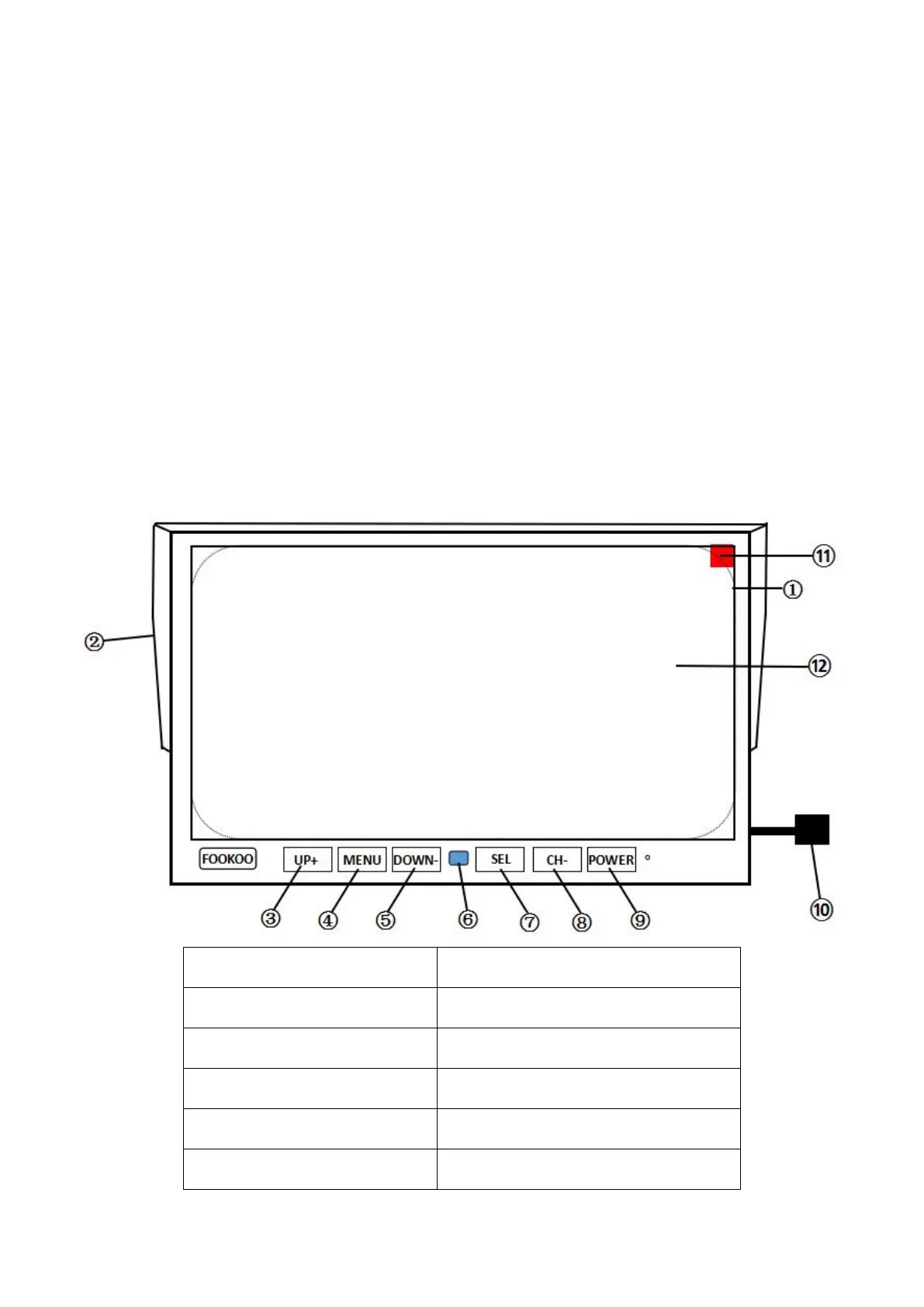

3.1 Monitor
① SD Card Placement
⑦ SEL Button (On/Off Recording)
②
Sunshade (Unremovable)
⑧
Camera/Channel Switch Button
③ Function Increase Button
⑨ Power ON/OFF Button
④ Menu Button
⑩ Monitor Harness Connector
⑤
Function Discrease Button
⑪
Red Tag
⑥ Power Indicator Light
⑫ Screen Protective Film
