Force-A DUALEX SCIENTIFIC+ - DUALEX SCIENTIFIC+TM Optical Leaf-Clip; Leaf-Clip Components Description

DUALEX SCIENTIFIC+
TM
FORCE-A User’s manual v.3.1
1
I DUALEX SCIENTIFIC+™ optical leaf-clip
I.1. Description

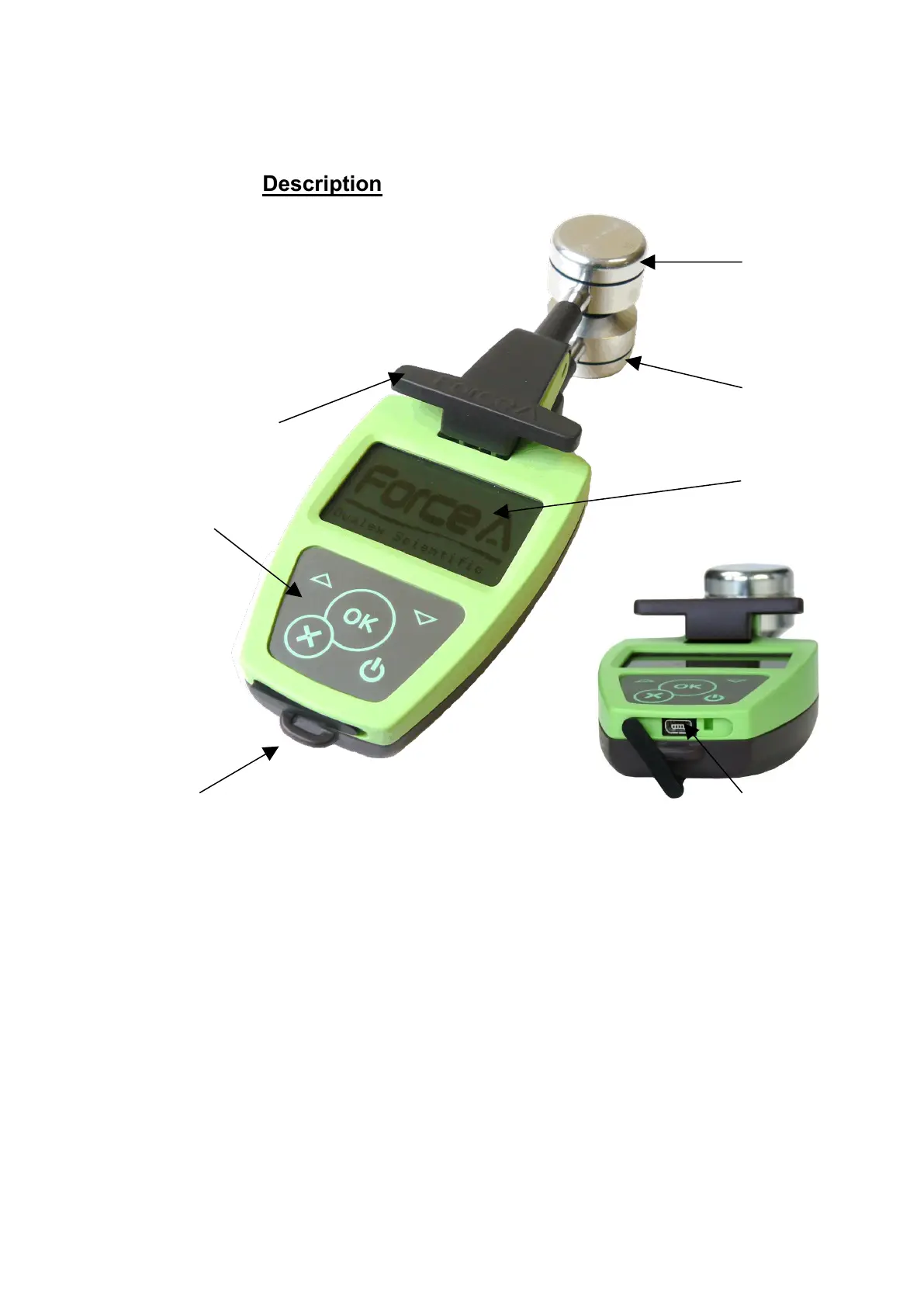

1) Handle to open the clip: when pressing on this handle, the clip opens and the leaf can be
introduced between the 2 heads. When released, the heads hold the leaf allowing the measurement
to be done. The testing position of the DUALEX
®
is with the clip closed.
2) The head that contains 5 different LEDs: 1 UV-A emitting LED, 2 visible-emitting LEDs and
two NIR-emitting LEDs.
3) The head that contains the optical detector: a filtered PIN photodiode.
4) Keyboard.
5) LCD Screen.
6) USB Interface that allows to download data, to upgrade the software and to charge the
DUALEX SCIENTIFIC+™ unit.
7) The wrist-strap must be tied to the DUALEX SCIENTIFIC+™ unit in order to avoid the fall of
the device.
2) Light source
5) LCD screen
3) Light detector
6) USB interface
4) Keyboard
7) Attach wrist-strap
1) Opening handle
