FO-4 I&T (Remastered Ver.1.2 ) 05-24-2015
DIFFERENTIAL, BEVEL GEARS & REAR
AXLE
DIFFERENTIAL
The differential is mounted in after
section of rear axle center housing
and may be removed without
disturbing transmission or power
lift units by removing the left hand
axle housing as shown in Fig. FO64.
84. REMOVAL. Drain housing and
block up under center center axle
housing to raise rear wheels. Remove
left rear wheel. Unbolt left axle
housing assembly from center housing
and pull assembly off tractor with axle
shaft as a unit, supporting it with a
lift or wheeled jack. Lift out
differential assembly, made accessible
by removal of axle housing.
Reinstall parts in reverse order of
removal using manufacturers standard
thickness axle housing to rear center
housing gaskets, to assure correct
differential bearing setting.
Connect/Report Errors – jcchapster@gmail.com

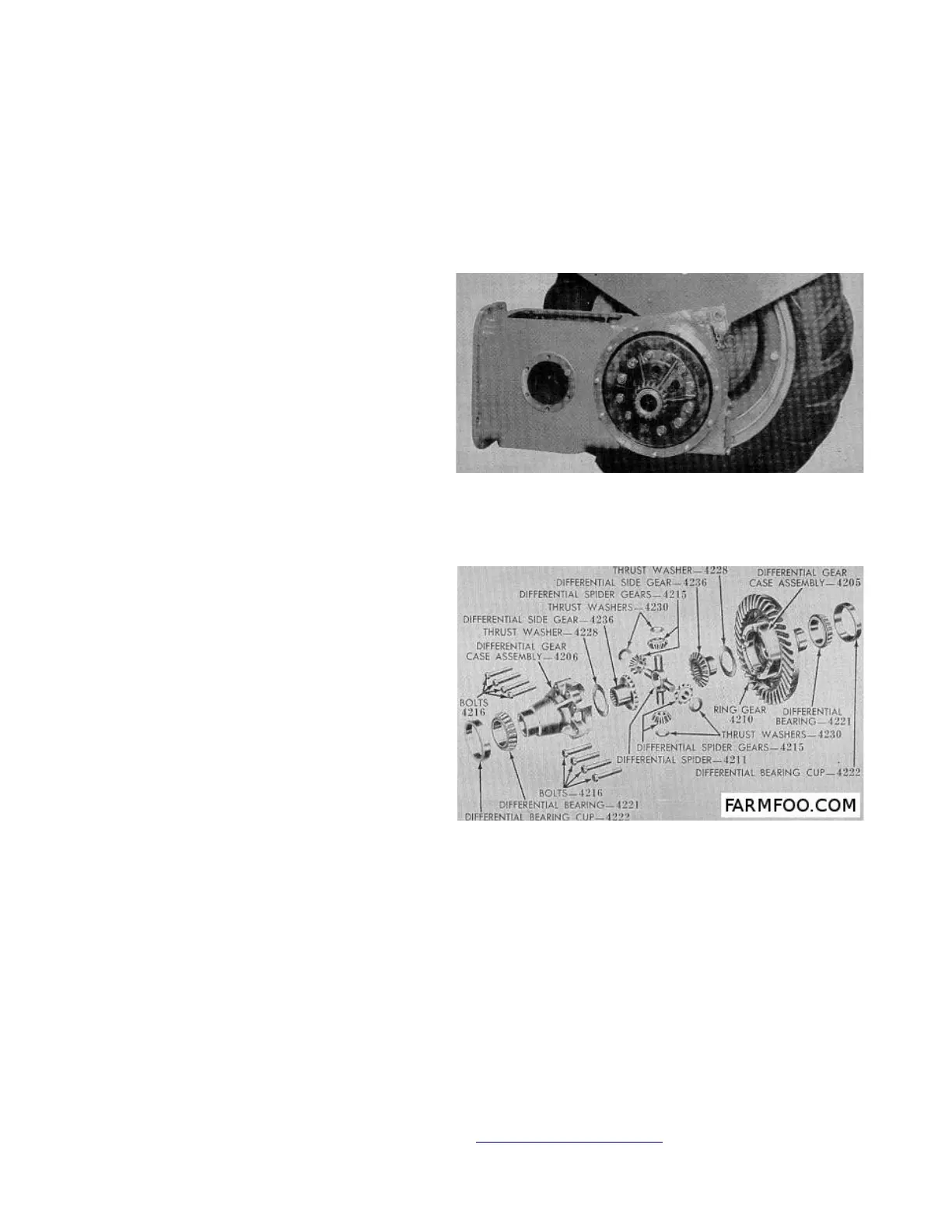

Fig. FO64 - When left axle housing is
removed, the differential can be lifted
out. Models
2N-8N-9N.
Fig. FO65 - Exploded view of differential
as used in models 2N-8N-9N. Bearing cups
(4222) are mounted in axle housings.
