Forma Scientific 8525 - Section 2 - Installation

Forma Scientific, Inc.________________________________________________Installation
2-7

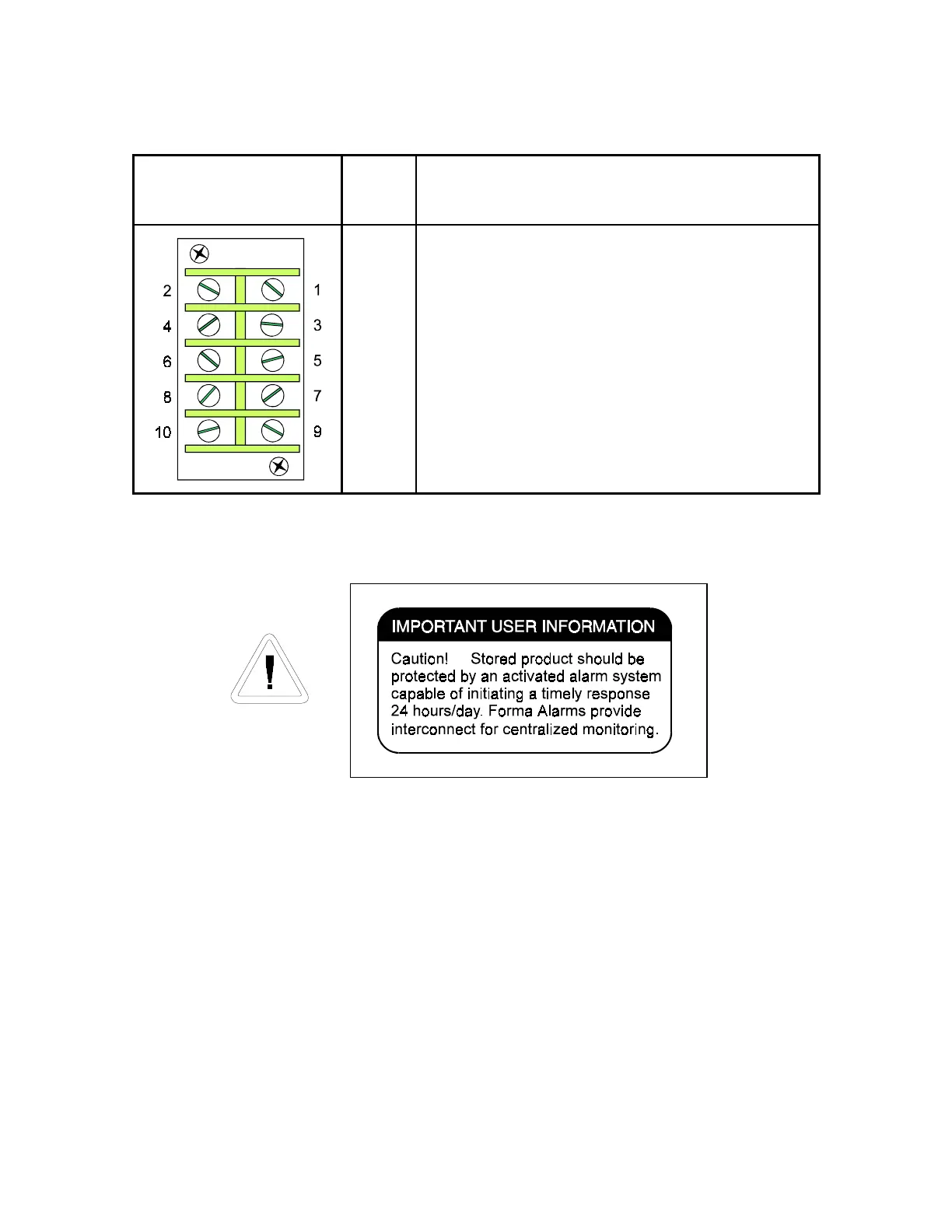

Key Pin # Description
1
2
3
4
5
6
7
8
9
10
Over temperature Common
Over temperature N.C.
Over temperature N.O.
Millivolt Out (Positive +)
Under temperature N.C.
Millivolt Out (Negative -)
Under temperature Common
Under temperature N.O.
(Not Used)
(Not Used)
Figure 2-3
