3. If an adjustment is necessary, press the #1 button to move the pen to the left or the
#2 to move the pen to the right. The button must be held about five seconds before
the pen begins to move. Release the button when the pen matches the thermometer.
Temperature probes for the CoBex Recorder and for the Enviro-Scan monitor are
located in the left front corner of the freezer chamber. (Figure 4-3) Figures 4-4 and 4-5
illustrate the temperature probes and the probe cover.
Note: The felt-tip pen on the CoBex recorder requires periodic replacement. Usually the ink
will appear to fade before replacement becomes necessary. Additional pen tips may be
purchased from Forma Scientific, Inc.
e. Recorder Outlet
The 115 VAC recorder outlet is located at the end of the relay enclosure. Refer to
Figure 4-4.
The outlet is to be only used for the CoBex recorders supplied by Forma.

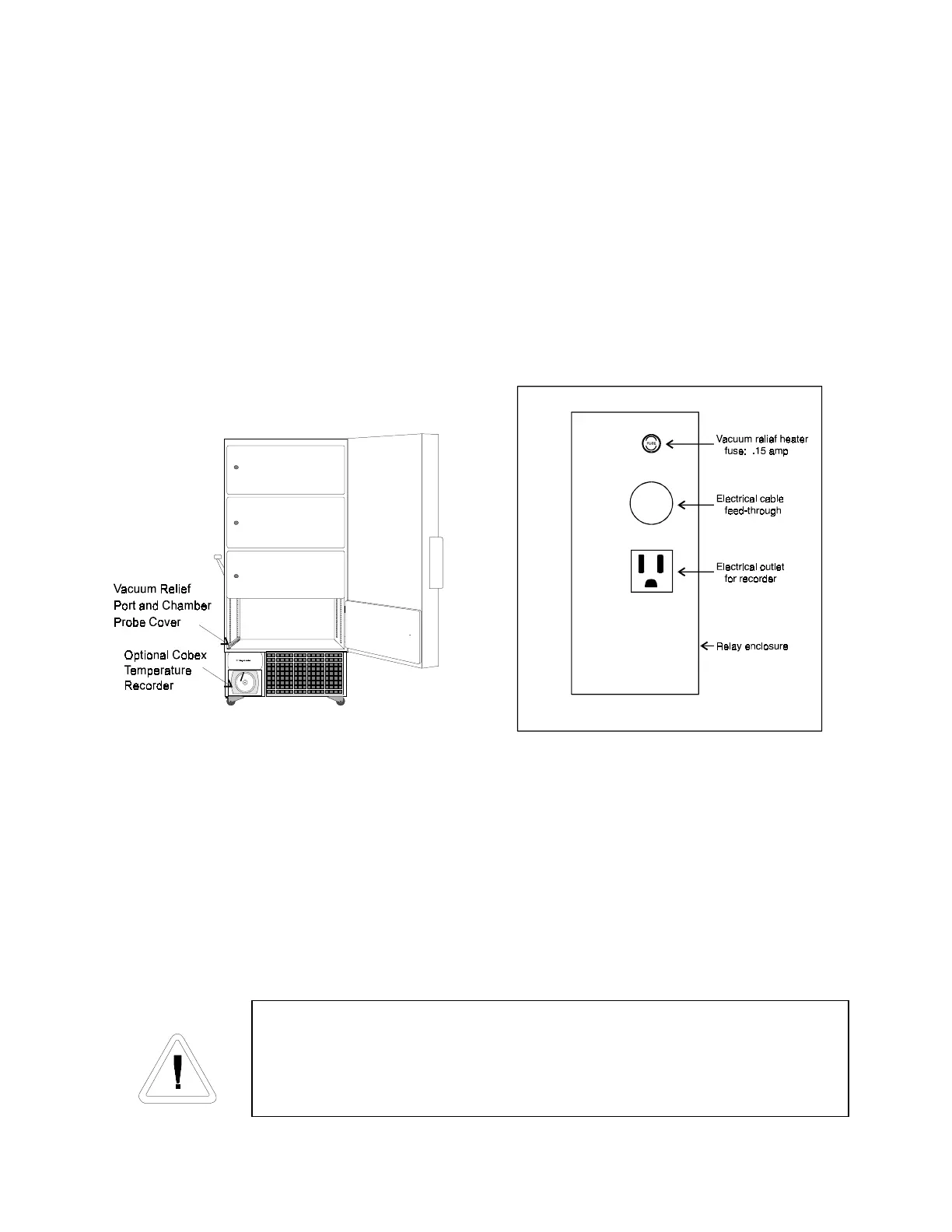

Figure 4-3
Temperature Recorder and
Chamber Probe Locations
Figure 4-4
Relay Enclosure showing
recorder outlet
