5756
Make sure that the seat is parallel to the upper pipe, and tighten the bolt or cam with the
recommended torque.
Attention! There is a special mark on the seatpost above which the seatpost cannot be raised.
It may be called Minimum insertion, Min. insertion, Maximum extension, Max. extension, Min
or Max. If this condition is not met, then the seatpost may bend or break, resulting in serious
injury.

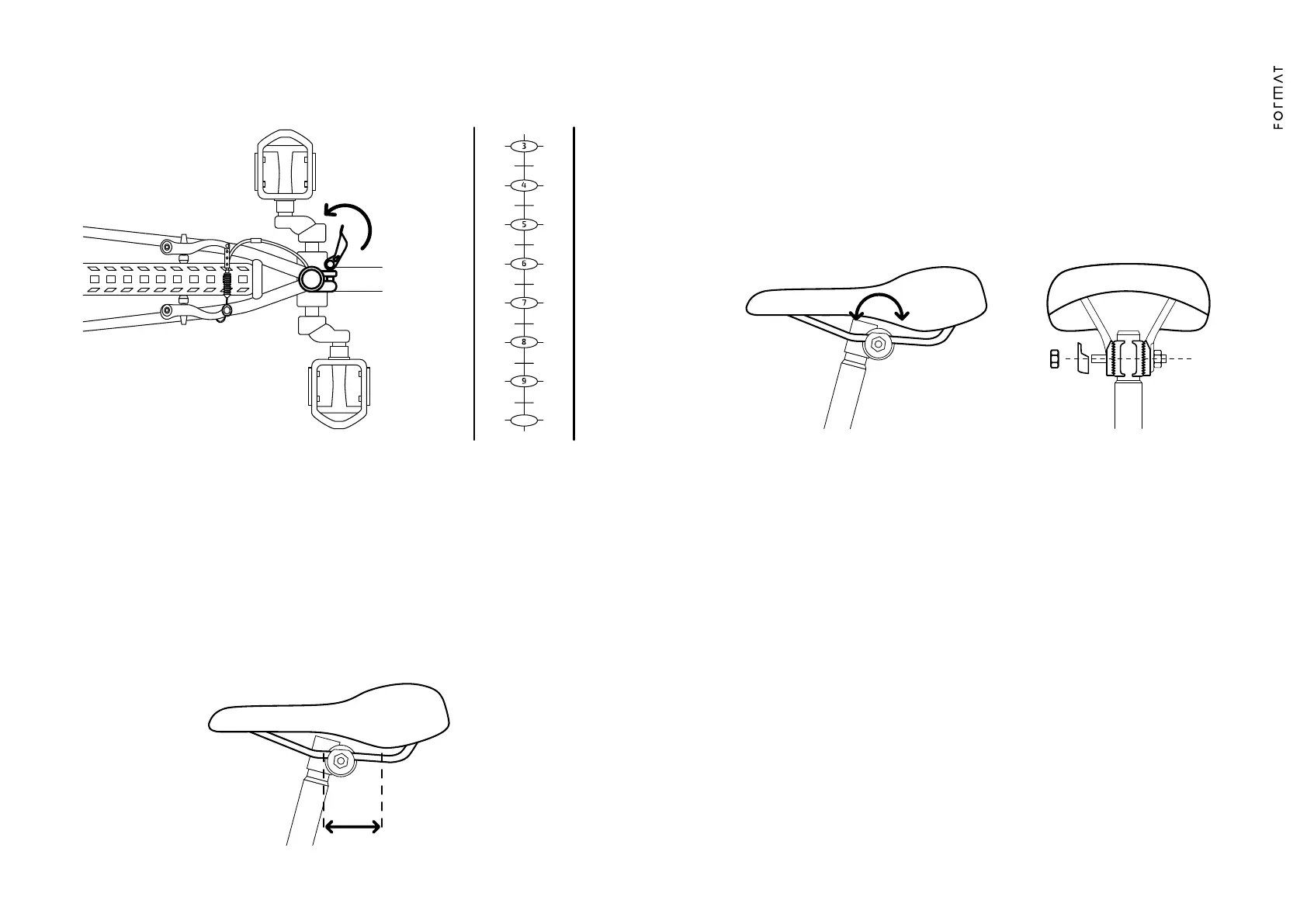

Adjustment of the longitudinal displacement of the seat.
Most of the seats can be adjusted forward / backward to select the optimal position of the
cyclist relative to the handlebar. When buying, ask the seller or bicycle mechanic to install a
seat under you and show how this adjustment is performed. When adjusting the longitudi¬nal
displacement of the seat yourself, make sure that the clamp secures the seat rails to their straight
part, without touching the bends. Check that the clamp bolts are tightened to the recommended
torque. If necessary, consult the seller.
Seat angle adjustment.
— Most people prefer a horizontal seat position, but some like the front part to be raised or
lowered. Seats have different mounting mechanisms, in which the angle of inclination varies in
different ways. Ask the seller or bicycle mechanic to adjust the angle of the seat for you and
show how this adjustment is made.
— Self-adjusting the angle of inclination is carried out using the appropriate screws on the
fastener of the seat post. Single or double bolt fastener design possible. In the case of single-
bolt fasteners, the adjustment is made by loosening the screw with its subsequent tightening. In
the second case, it is necessary to simultaneously tighten one bolt at the same time and release
the other.
Attention! When adjusting the single-bolt fastener design, be sure to ensure that the transverse
notches of the tilt adjustment mechanism are not worn. Whenever you ride a bicycle, you must
be sure that the seat is rmly xed.
Handlebar adjustment.
Format bikes are equipped with a threadless or threaded steering column.
Threadless handlebar column.
Changing the height of the handlebar is carried out by installing special adjusting rings for
removal or on the handlebar column pipe.
Attention! Such adjustment should be carried out by qualied specialists. Do not try to make
this adjustment yourself— contact the seller.
Threaded handlebar column.
Changing the height of the handlebar is carried out by adjusting the height of the offset. To do
this, loosen the fastening bolt located on the upper side of the stem. Raise / lower the stem by
setting the required height so that the handlebar is installed in a plane strictly perpendicular
to the plane of the front wheel. After that, it is necessary to tighten the fastening bolt with the
recommended effort. Ask the seller to make this adjustment.
MIN
