6766

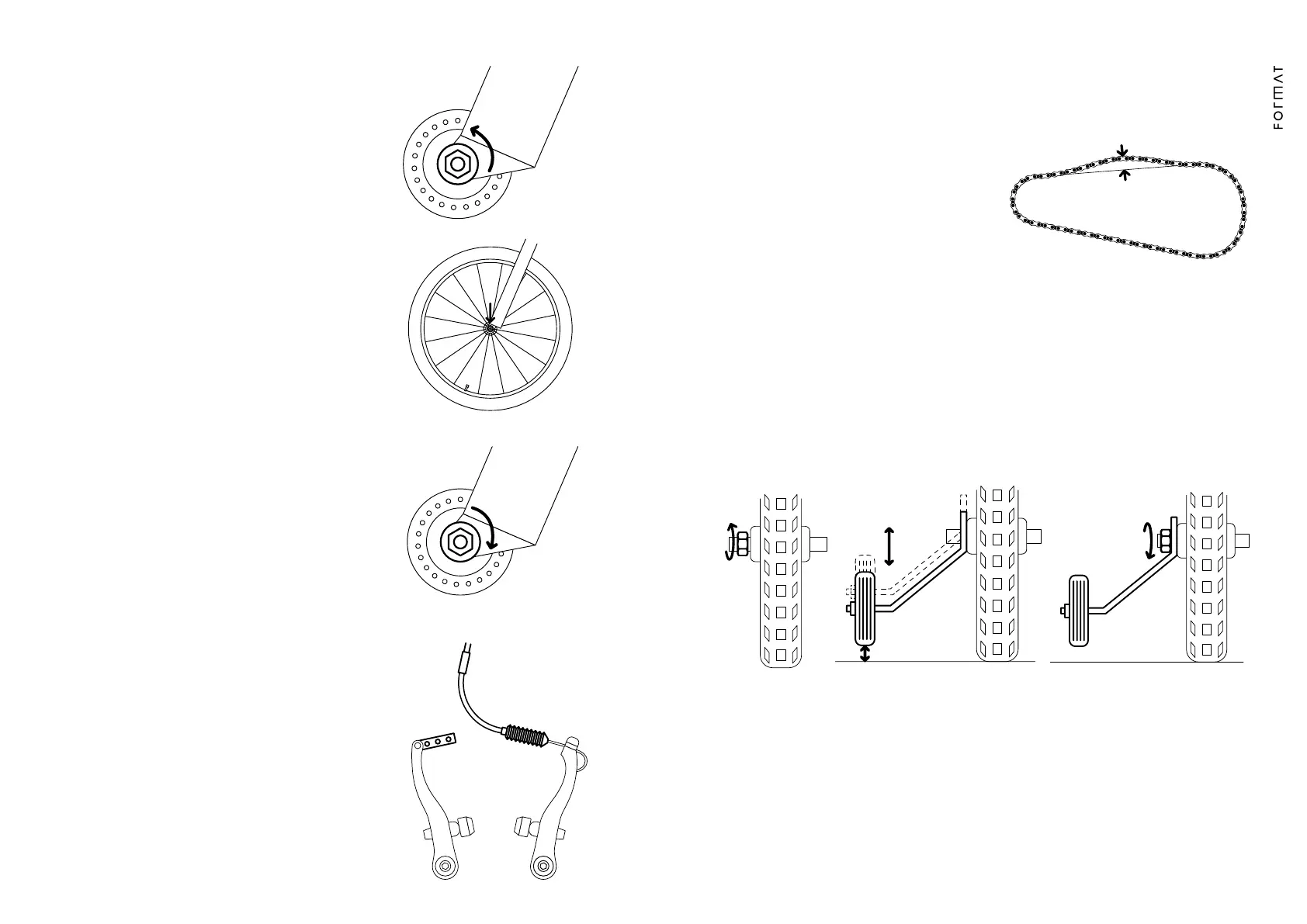

— Loosen the nuts.
— Under the weight of the bicycle, the wheel itself will t
exactly in the landing ends of the fork.
— Tighten the nuts rst with a little effort to precisely x the
wheel, then tighten the nuts with the recommended force.
Removing / installing wheel with V-Brake
— To remove / install the wheel with V-Brake type, release /
engage the brake coupler.
Installing the rear wheel on single-speed bikes
When installing the rear wheel on single-gear bicycles, it is necessary to ensure optimum chain
tension. Too low a tension can cause the chain to drop from the sprockets, and too much tension
will result in a difcult travel and excessive wear on the chain.
— The normal tension of the chain should be
such that its lower branch has a slight sag when
pulling the upper branch by hand. The deviation
in the middle part should be 20 - 25 mm.
— Then install the brackets with support wheels on the rear axle. The ledge of the bracket should
enter the groove of the dropout. Support wheels should be installed at a distance of 1 -1.5 cm
from the ground. When checking the indicated value, the bike must be strictly upright. Wheel
height above ground level is adjusted by moving the brackets up / down (special elongated
holes are provided in the brackets).
— After the support wheels are set to the required height, you should install the washers and
fasten the brackets to the axles with nuts.
Installation of support wheels on children’s bicycles
— To install the support wheels, you must rst remove the nuts and washers from the rear wheel
axle without removing the nut that secures the rear wheel to the dropouts.
20-25 mm
1-1,5 mm
