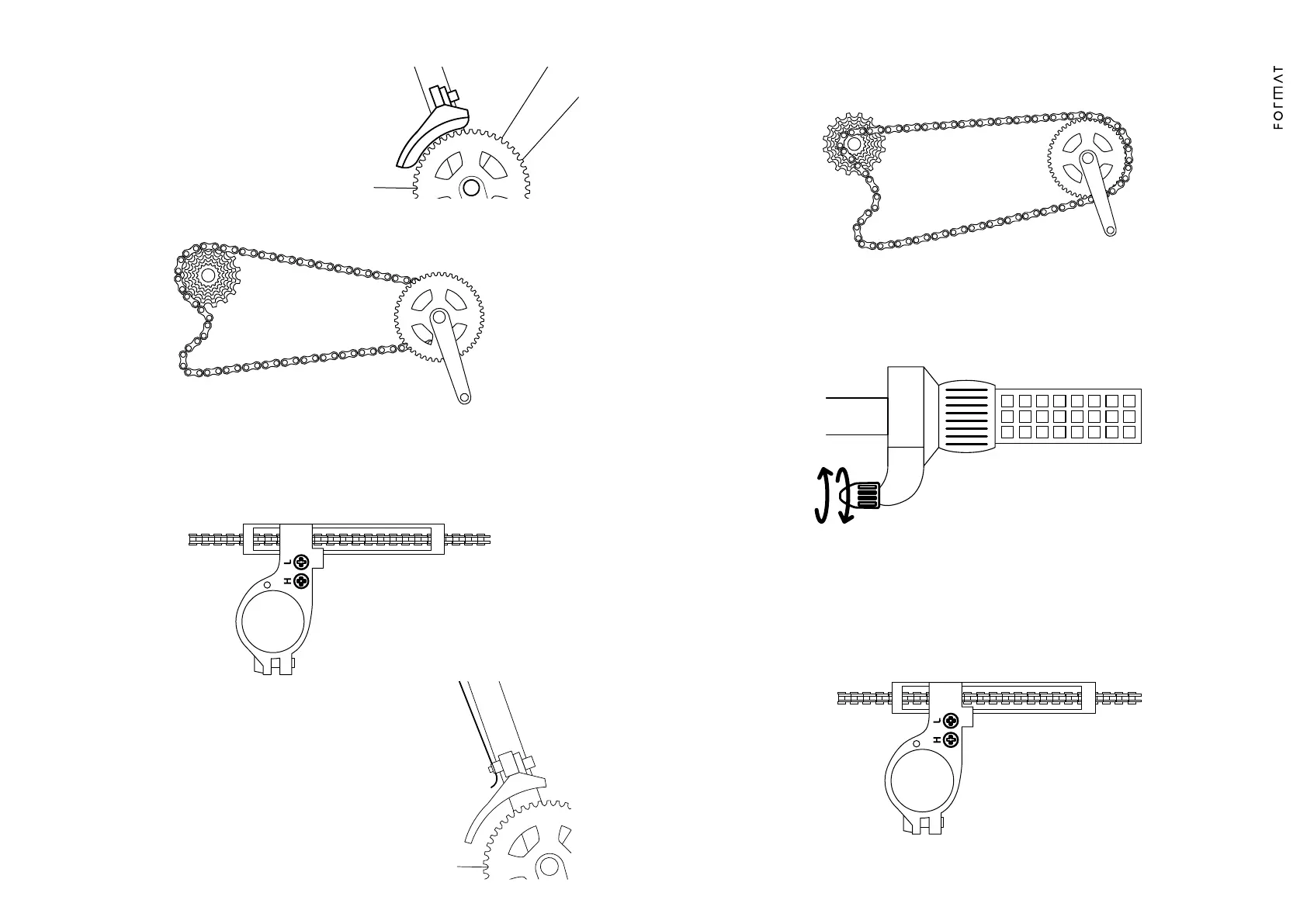

— The distance from the outer frame of the switch to the
large gear should be 2-4 mm.
— Tighten the xing bolt.
— Install the chain on the smallest chainring and on the
largest chainring.
— Using the L (low) limit screw, adjust the extreme inner position of the front derailleur so that the
chain is 1 to 2 mm from the inside of the frame.
— Turning the cranks forward, set the chain to the largest chainring and the smallest chainring.
— Using the adjusting screw on the shifter, get the front derailleur to work clearly.
— Using the limit screw H (high), adjust the outermost position of the front derailleur so as to limit
the movement of the derailleur towards the connecting rod, while the chain should freely switch
to the largest gear.
— With the left shifter in the «small gear’ position, lock the
front derailleur cable so that there is no loose cable slack.
Please note that the switch cable must be xed in a special
groove at the cable mounting location.
