FORST TR6 - Machine Transportation

P a g e | 21

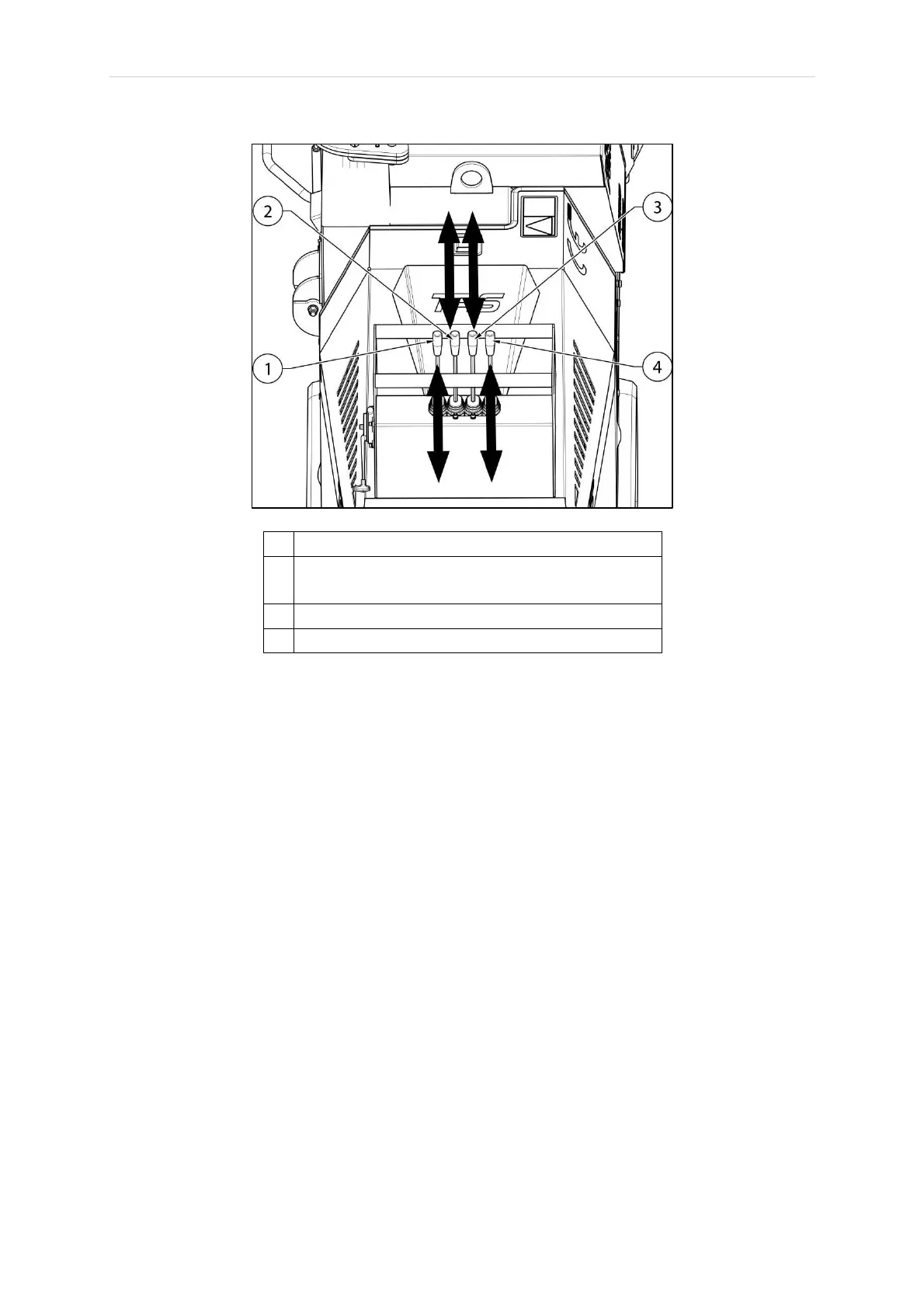

Tiltbed control
1
LEFT TRACK FORWARD & REVERSE
2
TRACK WIDTH FORWARD OUT BACK
IN
3
TILT FORWARD UP BACK DOWN
4
RIGHT TRACK FORWARD & REVERSE
Figure 9
The tiltbed has one extra control lever to tilt and lower the machine. On inclined
ground, the machine must face across the slope with track width at maximum . Tilt is
used to compensate and set the hopper horizontal see Figure 10.
