the inner blade tip, the outer blade tip should be 3mm from the anvil as shown in
Figure 20.
The complete blade fastener set must be replaced every time blades are changed.
DO NOT Lubricate the Bolts when fitting.
washer
Figure 19

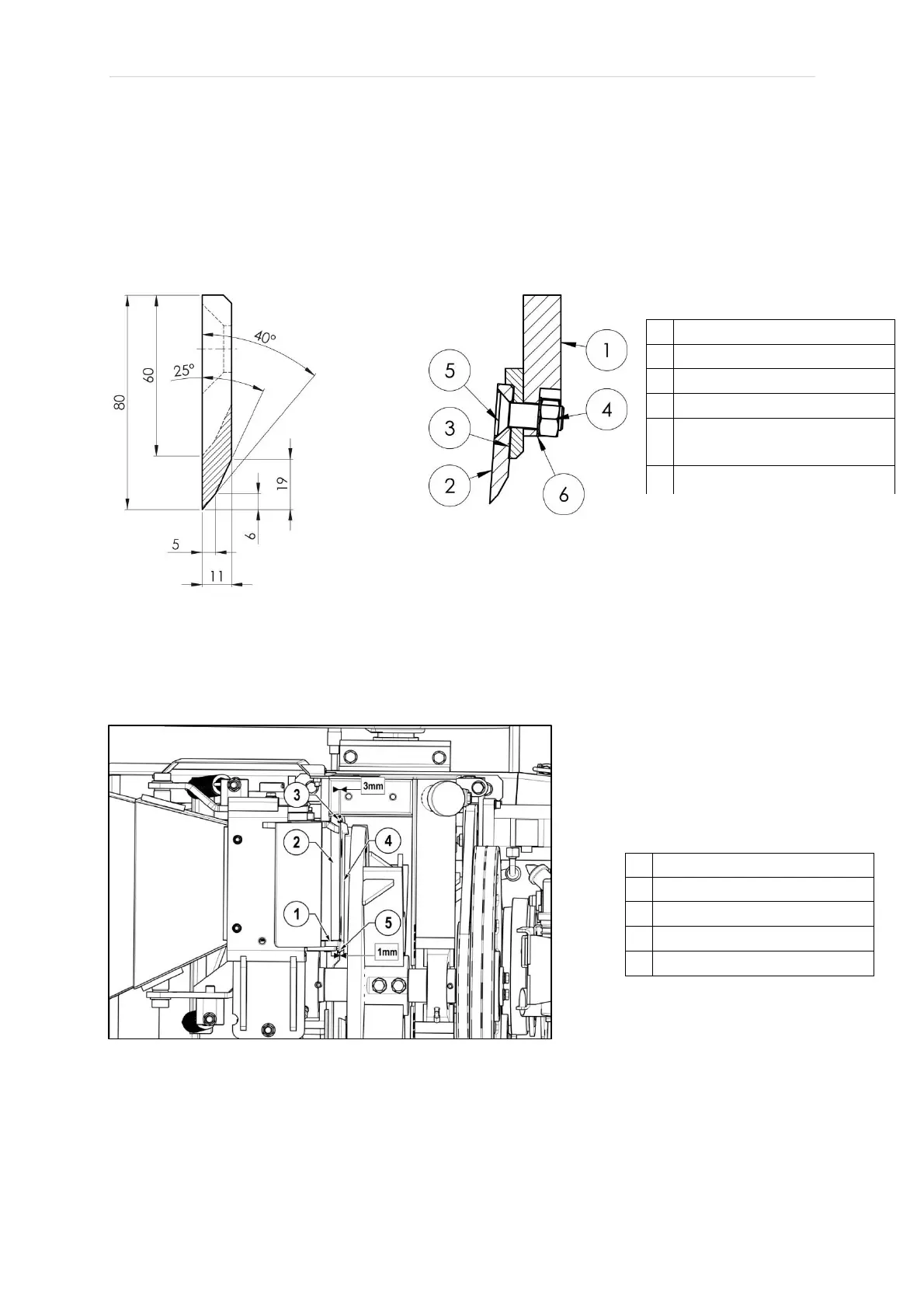

Blade sharpening limit
80mm to 60mm
Figure 18
Figure 20
Hydraulic oil filter
Use protective plastic gloves to keep oil off skin, dispose of oil and filter in an
environmentally responsible manner.
1. The spin-on filter is accessed via the left side panel (see covers Figure 13).
Thoroughly clean around filler housing before removing to help prevent debris
getting into oil.
