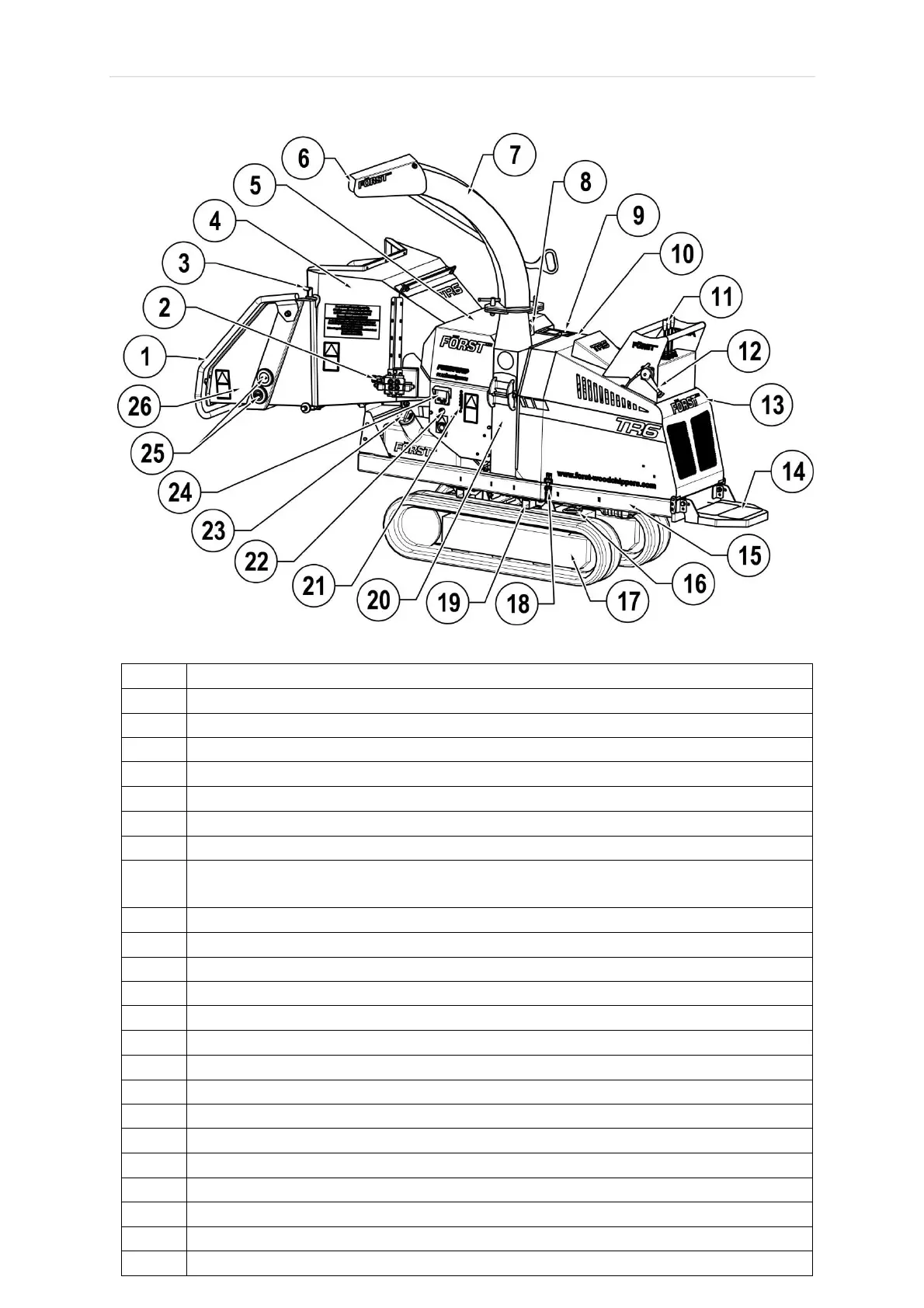

Exterior component identification
Figure 1
1
TRIP BAR
2
CONTROL VALVE FEED SPEED ADJUSTMENT
3
HOPPER TRAY LATCH
4
REMOVABLE HOPPER
5
CHIPPING CHAMBER COVER
6
CHUTE HOOD
7
CHUTE
8
MACHINE LIFTING EYE
9
MANUFACTURER'S STATUTORY PLATE ON CHIPPING CHAMBER
COVER UNDER ENGINE COVER
10
SERIAL NUMBER ON CHIPPING CHAMBER UNDER ENGINE COVER
11
TRACK CONTROL LEVERS
12
THROTTLE
13
ENGINE COVER
14
FOOT PLATE
15
CHASSIS
16
FRONT TRANSIT LASHING EYE
17
TRACK BASE
18
ENGINE COVER LATCH
19
TRACK BASE INTERFACE & JACK LIFTING POINTS
20
CHIPPING CHAMBER
21
GREASE POINT
22
IGNITION SWITCH
23
FUEL TANK
24
CONTROL PANEL
