Fortuna ES 50 - Electrical Connection and Start-up

Installing the machine
—————————————————————————————————————–———
———————————————————————————–––––––––––––––––––––––––
Operating Manual Skiving Machine ES 50-UK-V3/24.01.2012 27 von 45
1.10.5 Electrical connection
Electrical work must only be carried out by a qualified electrician.
A complete circuit diagram is part of the technical documentation of this
machine and can be found in the switch cabinet of the machine.
Observe the safety rules of the local power station.
Before connecting the machine to the mains ensure that the voltage and
frequency correspond to the values provided on the switch cabinet.
For more information please refer to Chapter 1.1.3 Electrical data (page 9).

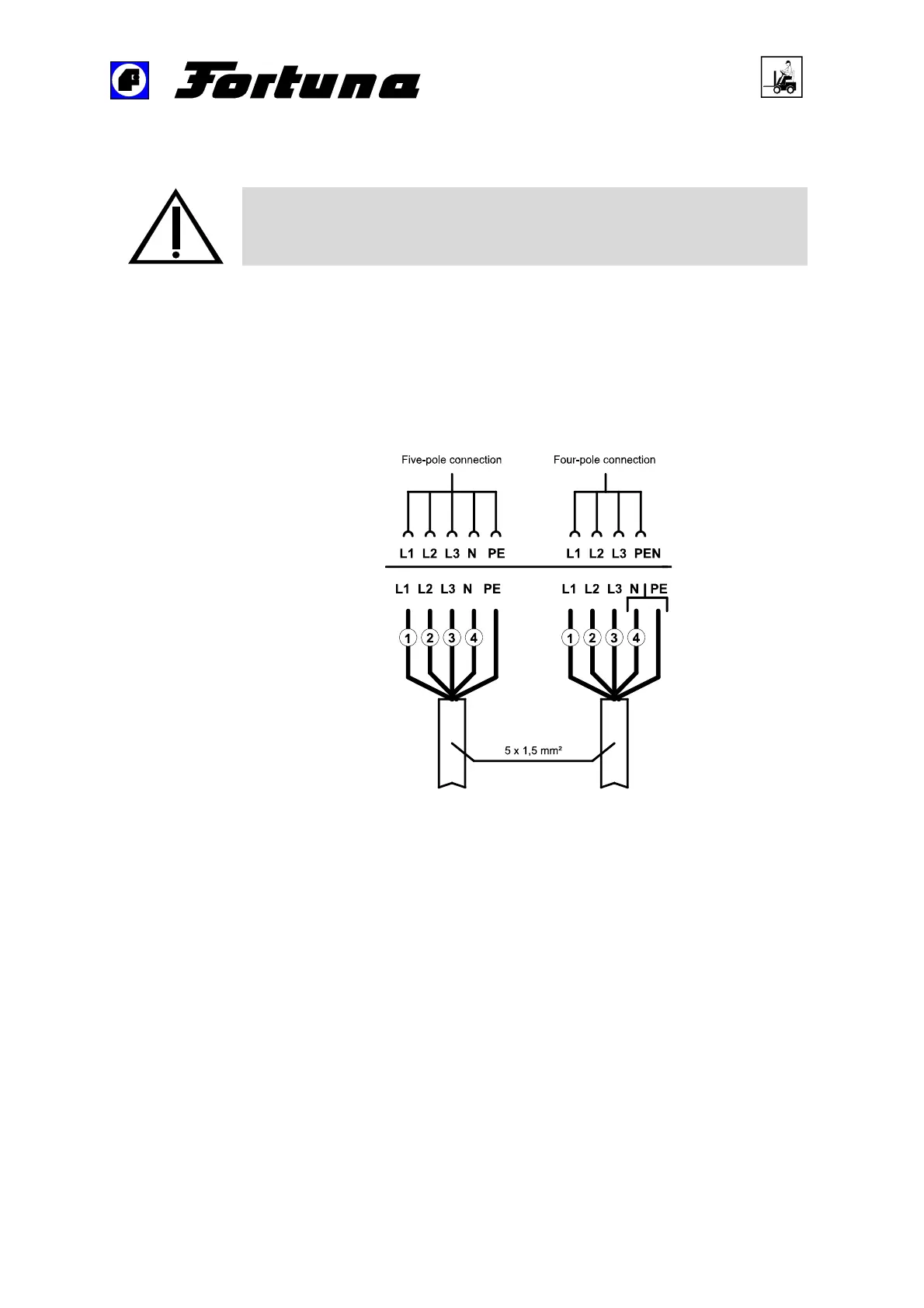

Figure 5: Mains connection cables of the machine
When connecting the cables, ensure that there is a right three-phase field
between the phases L1, L2 and L3.
