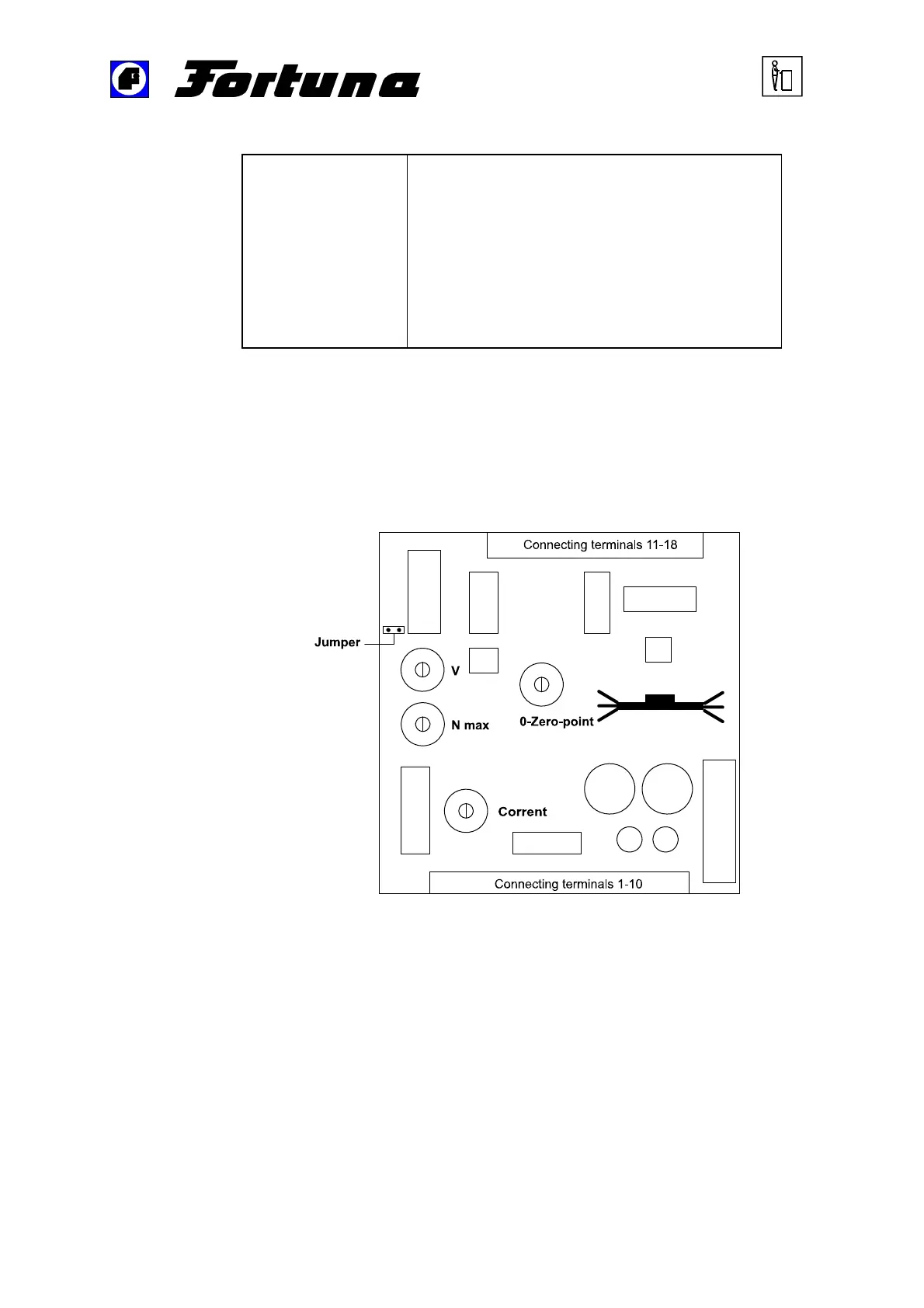

Fortuna ES 50 - Figure 8: Regulator

User manual
—————————————————————————————————————–———
———————————————————————————–––––––––––––––––––––––––
Operating Manual Skiving Machine ES 50-UK-V3/24.01.2012 37 von 45
Zero point
 Do not push the regulator pedal.
 Set the external potentiometer at the center
position (value 5).
 Turn the zero point potentiometer until the
feed motor just starts turning.
 Now turn back until the feed motor stops.
 Turning to the right increases the speed.
 Turning to the left decreases the speed.
Jumper
The jumper on the regulator board serves to bridge the external regulator
pedal.
Jumper plugged in - regulator pedal is bridged.
Jumper removed - regulator pedal connected.
Figure 8: Regulator
