Operating Manual Skiving Machine ES 50-UK-V3/24.01.2012 35 von 45
Programming
 Adjust the distance between knife and pressure foot mechanically to 0.4
mm.
 Position the analog sensor mechanically and fix it until the seven-segment
display shows 05.00.
 Press the SET key (4) to store the zero point.
 Move the knife mechanically towards the left position (the distance between
knife and pressure foot is 0.2 mm).
 Press the left key ◄ (5) to store this position.
 Move the knife mechanically towards the right position (the distance
between knife and pressure foot is 0.6 mm).
 Press the right key ► (3) to store this position.

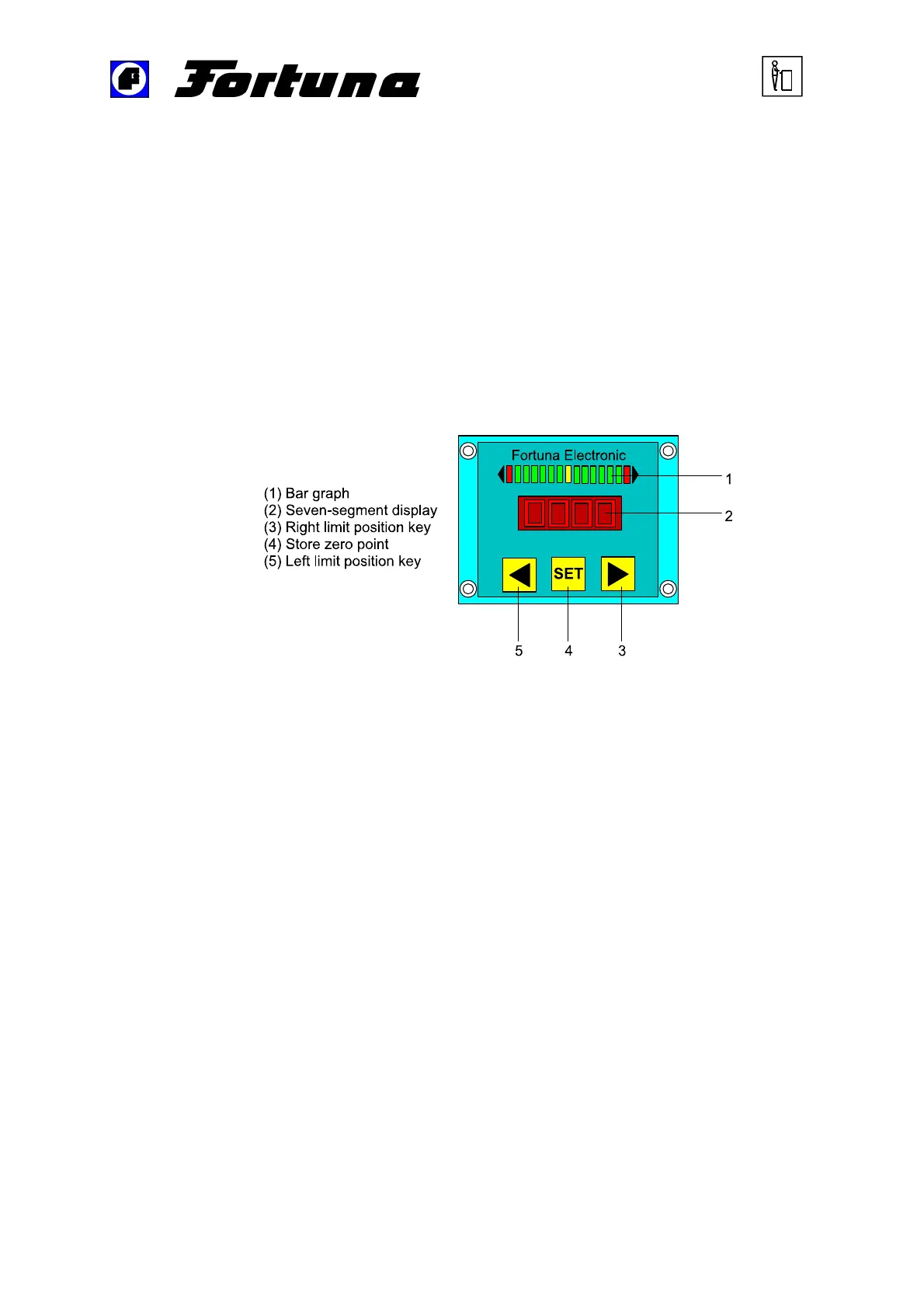

Figure 7: Knife position indicator
