Step 07: Click Save button to take effect.
When the motion has been detected during the detection time in the detection area, the camera will
alarm and adopt the corresponding alarm indicators.
NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere
and anytime.
4.6.2 IO Alarm
FI9815P supports IO alarm function
This IP camera provides a I/O alarm terminal block which is used to connect to external input / output
device.
The alarm device(door sensor, infrared sensor, smoke detectors, etc) send input command to the
network camera, then the network camera send output command to the alarm output device(local
audible alarm, lights alarm,etc.).

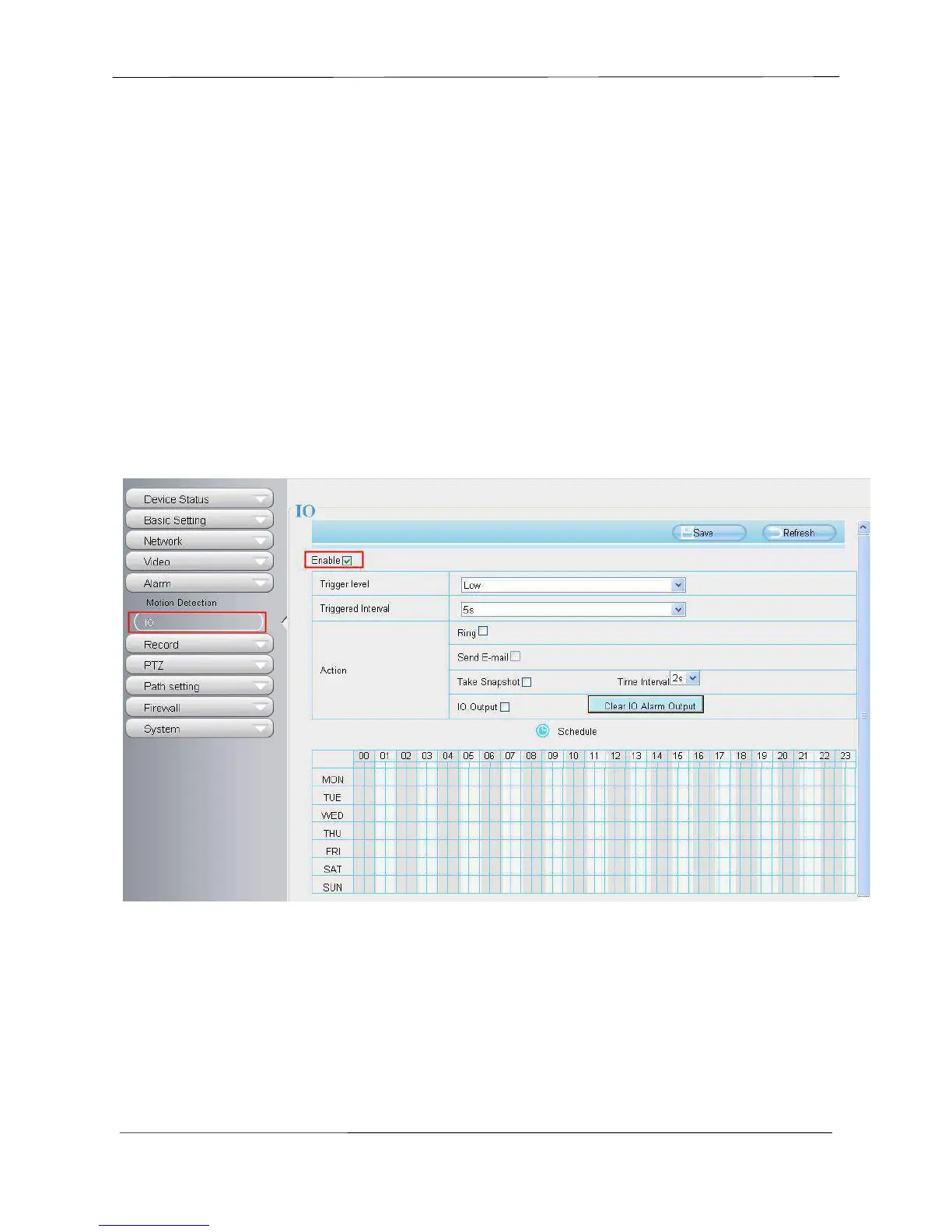

Figure 4.62
There is an IO alarm input/output lines in the FOSCAM camera tails, as shown in Figure 4.608. Enable
IO alarm need this cable to connect to the alarm device (door sensor, infrared sensor, smoke detector,
etc.).
I/O Alarm has four ports:
 Port 1 and port 2 indicate IO alarm output
 Port 3 and port 4 indicate IO alarm input
