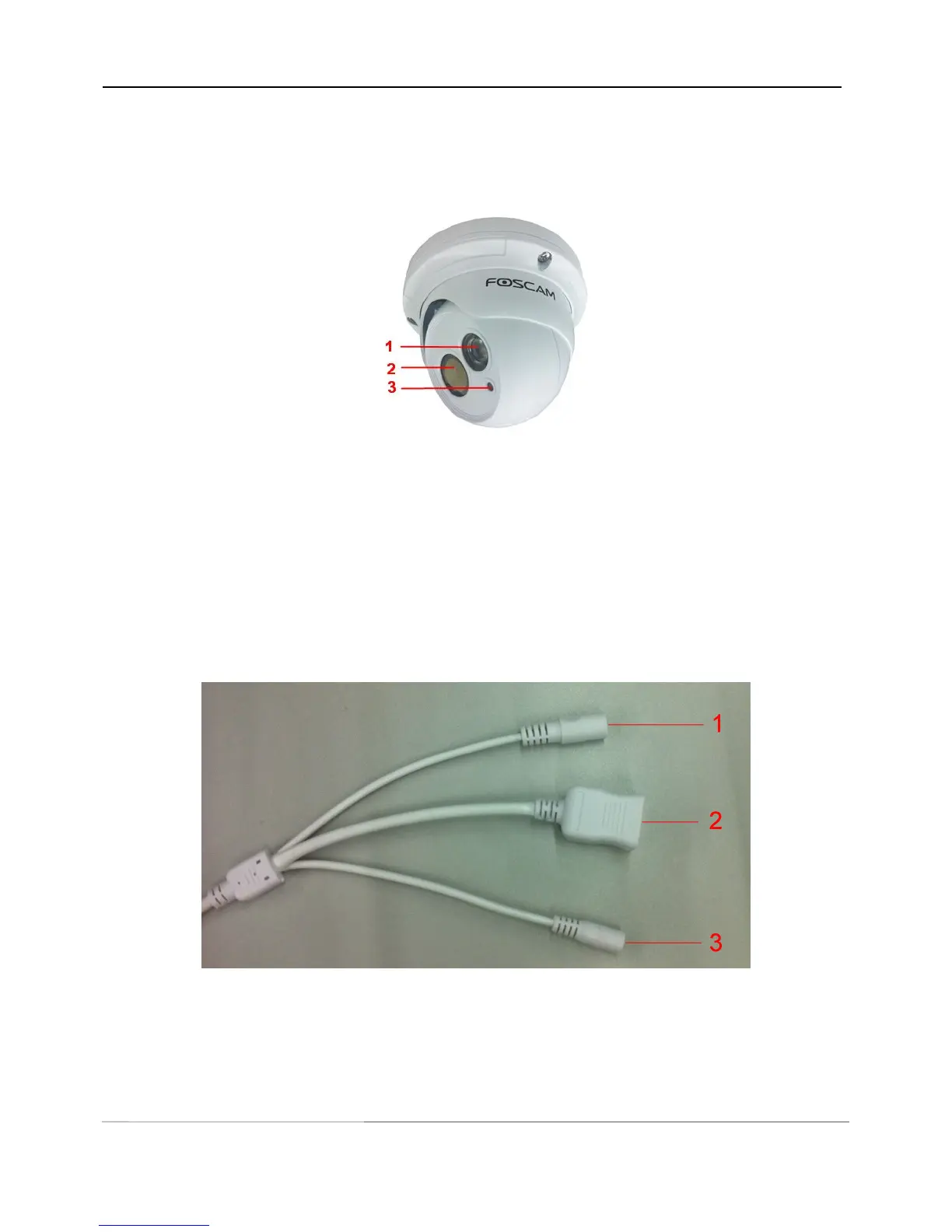

1.5 Physical Description
1.5.1 Front Panel
Figure 1.1
1 Infrared Lamp Array
2 LENS: CMOS sensor with fixed focus lens
3 Induction IC
1.5.2 Interface
Figure 1.3
1 Power Interface
Connect the external power adapter, request for 12V/1A power.
2 LAN
