Fostex 350 - SPECIFICATIONS

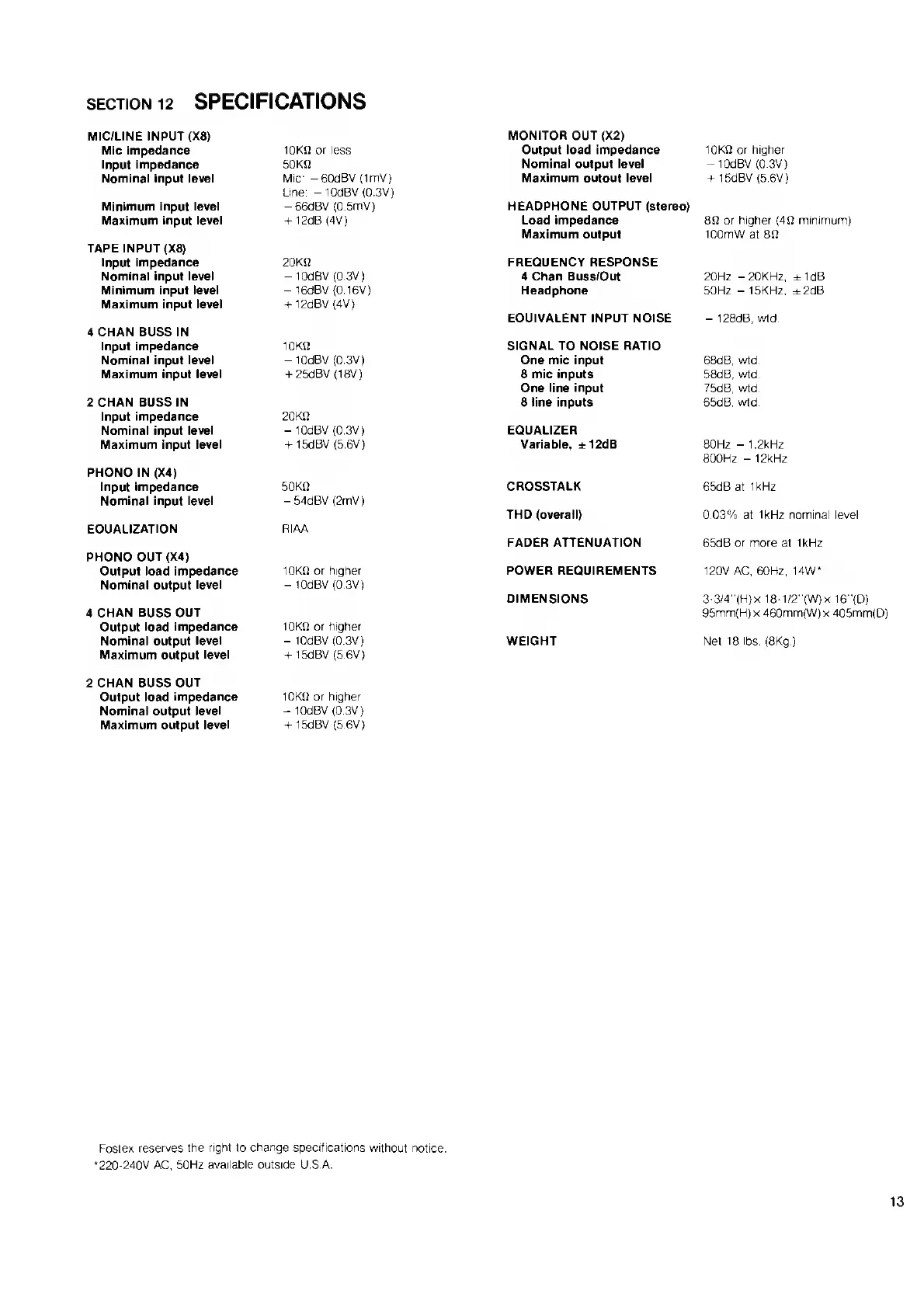

SECTION 12 SPECIFICATIONS
MIC/LINE INPUT (X8)
MONITOR OUT (X2)
Mic impedance
10Kft or less Output load impedance
Input impedance 50Kft
Nominal output level
Nominal input level Mic -60dBV (ImV)
Line: -i0dBV(0.3V)
Maximum outout level
Minimum input level — 66dBV (0.5mV) HEADPHONE OUTPUT (stereo)
Maximum input level + 12dB (4V) Load impedance
Maximum output
TAPE INPUT (X8)
Input impedance
20Kft
FREQUENCY RESPONSE
Nominal input level
- 10dBV (0.3V)
4 Chan Buss/Out
Minimum input level
- 16dBV (0.16V)
Headphone
Maximum input level
+ 12dBV (4V)
EQUIVALENT INPUT NOISE
4 CHAN BUSS IN
Input impedance
lOKft SIGNAL TO NOISE RATIO
Nominal input level
- lOdBV (0.3V)
One mic input
Maximum input level
+ 25dBV (18V)
8 mic inputs
One line input
2 CHAN BUSS IN 8 line inputs
Input impedance
20Kft
Nominal input level
- lOdBV (0.3V) EQUALIZER
Maximum input level
+ 15dBV (5.6V) Variable, ±12dB
PHONO IN (X4)
Input impedance
50Kft CROSSTALK
Nominal input level
- 54dBV (2mV)
THD (overall)
EQUALIZATION RIAA
FADER ATTENUATION
PHONO OUT (X4)
Output load impedance
10K£2 or higher POWER REQUIREMENTS
Nominal output level
- lOdBV (0.3V)
DIMENSIONS
4 CHAN BUSS OUT
Output load impedance
lOKft or higher
Nominal output level
- lOdBV (0.3V)
WEIGHT
Maximum output level
+ 15dBV (5.6V)
2 CHAN BUSS OUT
Output load impedance
10K1J or higher
Nominal output level
- lOdBV (0.3V)
Maximum output level
+ 15dBV (5.6V)
Fostex reserves the right to change specifications without notice.
*220-240V AC, 50Hz available outside U.S.A.
lOKfi or higher
- lOdBV (0.3V)
+ l5dBV (5.6V)
8H or higher (4ft minimum)
lOOmW at 8ft
20Hz -20KHz, ± IdB
50Hz - 15KHz. ±2dB
- i28dB, wtd.
68dB, wtd.
58dB, wtd.
75dB, wtd.
65dB. wtd.
80Hz - 1.2kHz
800Hz - 12kHz
65dB at 1kHz
0.03% at 1kHz nominal level
65dB or more at 1kHz
120V AC, 60Hz, 14W*
3-3/4"(H)x 18-1/2"(W)x 16"(D)
95mm(H) x 460mm(W) x 405mm(D)
Net 18 lbs. (8Kg.)
13
