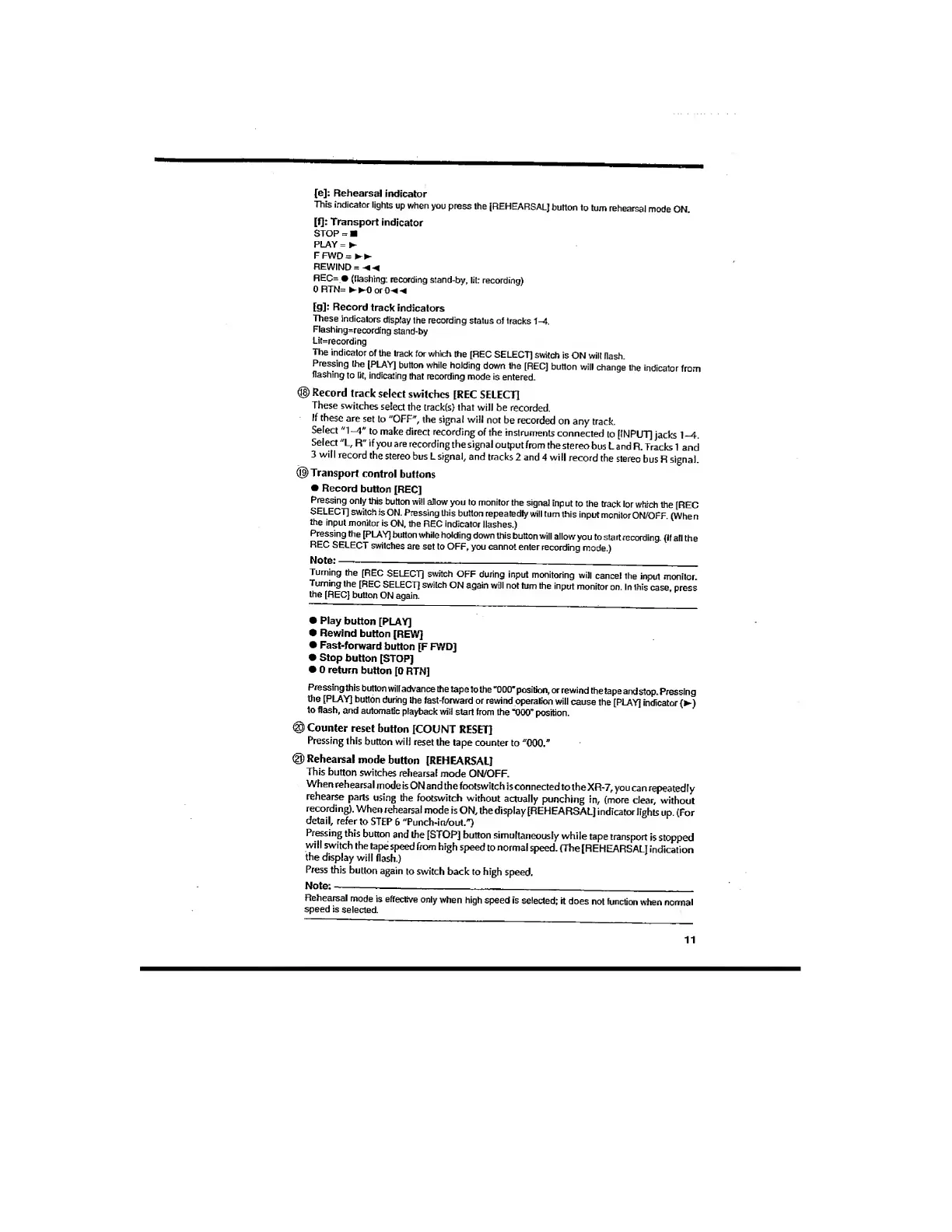

[e]: Rehearsal indicator
This indicator lights up when you press the [REHEARSAL] button to turn rehearsal mode ON.
[f|: Transport indicator
STOP = ■
PLAY = ►
FFWD=K^
REWIND =
REC= • (flashing; recording stand-by, lit: recording)
0 RTN= ^ ^0 or 0-4 -4
[g]: Record track indicators
These indicators display the recording status of tracks 1-4.
Rashing=recording stand-by
Lit=recording
The indicator of the track for which the [REC SELECT] switch is ON will flash.
Pressing Ihe [PLAY] button while holding down the [REC] button will change the indicator from
flashing to lit. indicating that recording mode is enlered.
® Record track select switches [REC SELECT]
These switches select the track(s) that will be recorded.
If these are set to "OFF", the signal will not be recorded on any track.
Select "1-^" to make direct recording of the instruments connected to [INPUT] jacks 1-4.
Select "L, R" if you are recording the signal output from the stereo bus L and R. Tracks 1 and
3 will record the stereo bus L signal, and tracks 2 and 4 will record the stereo bus R signal.
©Transport control buttons
• Record button [REC]
Pressing only this button will allow you to monitor the signal input to the track lor which the (REC
SELECT] switch is ON. Pressing this button repeatedly will turn this input monitor ON/OFF. (When
the input monitor is ON, the REC indicator flashes.)
Pressing Ihe [PLAY] button while holding down this button will alio w you to start recording. (If all Ihe
REC SELECT switches are set to OFF, you cannot enter recording mode.)
Note:--
Turning Ihe [REC SELECT] switch OFF during input monitoring will cancel the input monitor.
Turning the [REC SELECT] switch ON again will not turn the input monitor on. In this case press
the [REC] button ON again.
• Play button [PLAY]
• Rewind button [REW]
• Fast-forward button [F FWD]
• Stop button [STOP]
• 0 return button [0 RTN]
Pressing this button will advance the tape to the “000" position, or rewind Ihe tape and stop. Pressing
the [PLAY] button during Ihe fast-forward or rewind operation will cause the [PLAY] indicator ( ► )
to flash, and automatic playback will start from the “000” position.
@ Counter reset button [COUNT RESET]
Pressing this button will reset the tape counter to "000."
® Rehearsal mode button [REHEARSAL]
This button switches rehearsal mode ON/OFF.
When rehearsal mode is ON and the footswUch is connected to the XR-?, you can repeatedly
rehearse parts using the footswitch without actually punching in, (more clear, without
recording). When rehearsal mode is ON, the display [REHEARSAL] indicator lights up. (For
detail, refer to STEP 6 "Punch-in/oul.")
Pressing this button and the [STOP] button simultaneously while tape transport is stopped
will switch the tape speed from high speed to normal speed. (The [REHEARSAL] indication
the display will (lash.)
Press this button again to switch back to high speed.
Note:-----
Rehearsal mode is effective only when high speed is selected; it does not function when normal
speed is selected.
11
