605-01-414 REV A 5
NOTICE: Medium-strength thread-lock is
recommended on all bolts.
1. Please read the installation guidelines on
page 4 for instructions on how to properly lift
and secure the vehicle.
2. Remove both front wheels from the vehicle.

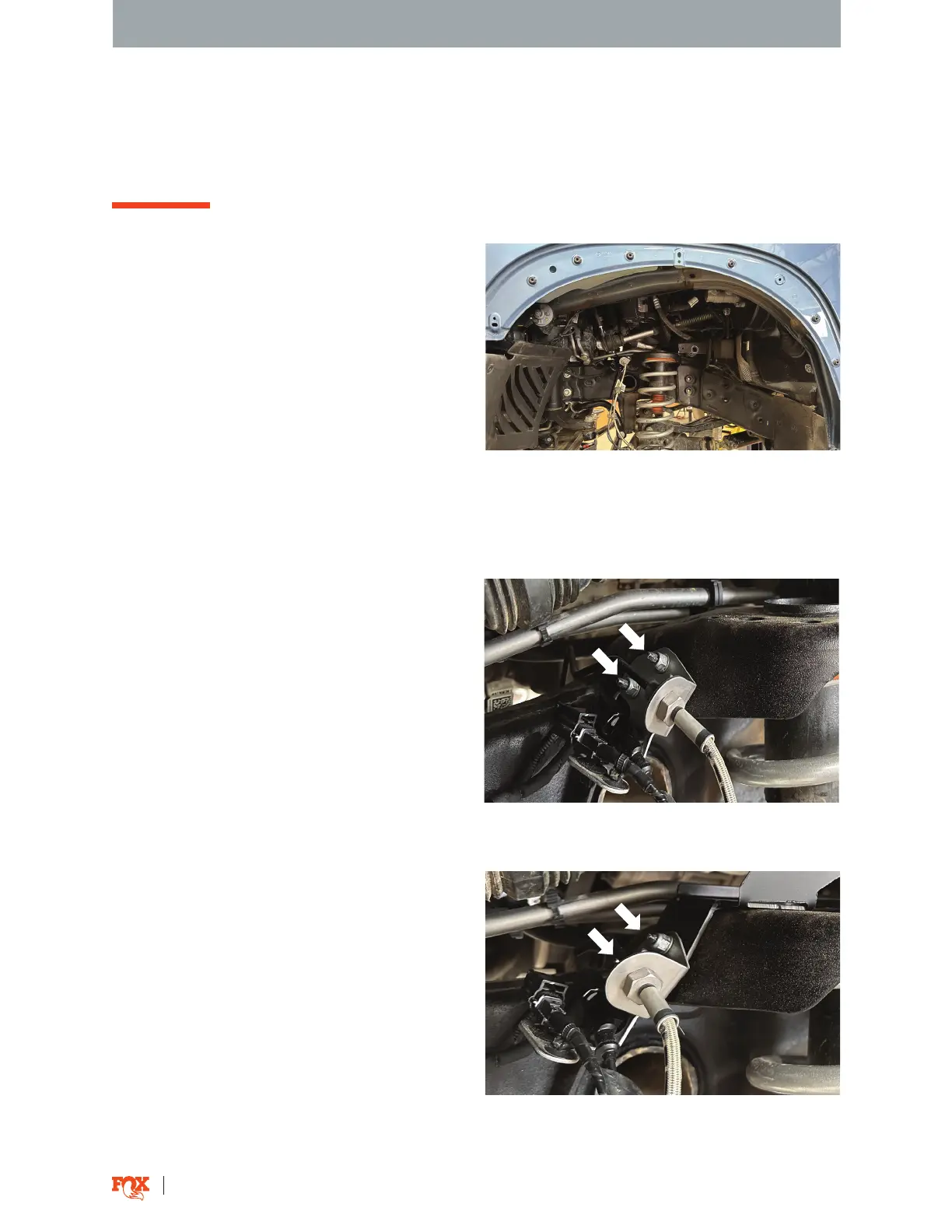

3. Pull the fender liner from the wheel well (Fig. 1).
FRONT SHOCK INSTALLATION
Fig. 2: Remove the brake bracket bolts.
Fig. 3: Mount the reservoir bracket under the brake
bracket.
RESERVOIR BRACKET INSTALLATION
1. Remove the bolts that fasten the brake bracket
to the frame of the vehicle (Fig. 2).
2. Mount the reservoir bracket under the brake
bracket. Replace the brake bracket and secure
the OEM fasteners (Fig. 3). Torque to OEM
specification.
Fig. 1: Pull the fender liner.
