605-01-414 REV A 6
STOCK SHOCK REMOVAL
1. Remove the bolt connecting the shock to the
axle, then remove the bolt connecting the shock
to the frame. It may be necessary to support or
raise the vehicle axle in order to remove bolts
and for installation of new FOX shock. Do not
discard bolts and nuts, as they will be used with
the FOX shock installation.

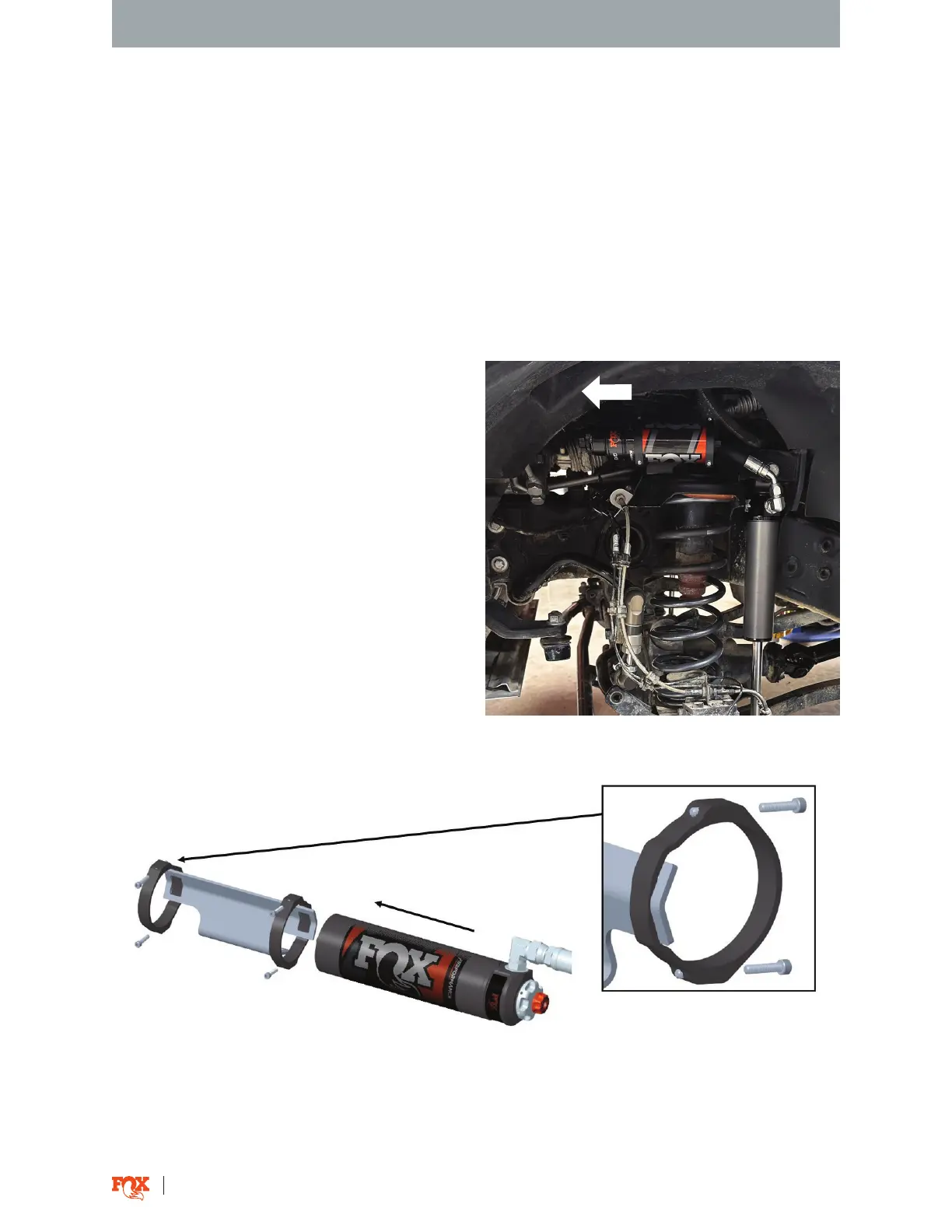

Fig. 4: Install the FOX shock.
FOX SHOCK INSTALL
1. Install the new shock assembly to the vehicle
mounts using OEM hardware. Make sure the hose
fitting faces outboard and the reservoir pointed
toward the front of the vehicle (Fig. 4). Torque to
OEM specifications.
2. Mount the reservoir to the mounting bracket with
the supplied reservoir clamps (D1-3). Utilize the
slots in the bracket to locate the clamps. Do not
feed the clamps through the slots in the bracket
(Fig. 5). Once installed, the reservoir should
mount flush with the mounting bracket (Fig. 6
and Fig. 7).
FRONT OF VEHICLE
Fig. 5: Diagram of reservoir and bracket interface.
