- Spindle & Light Wiring Diagrams

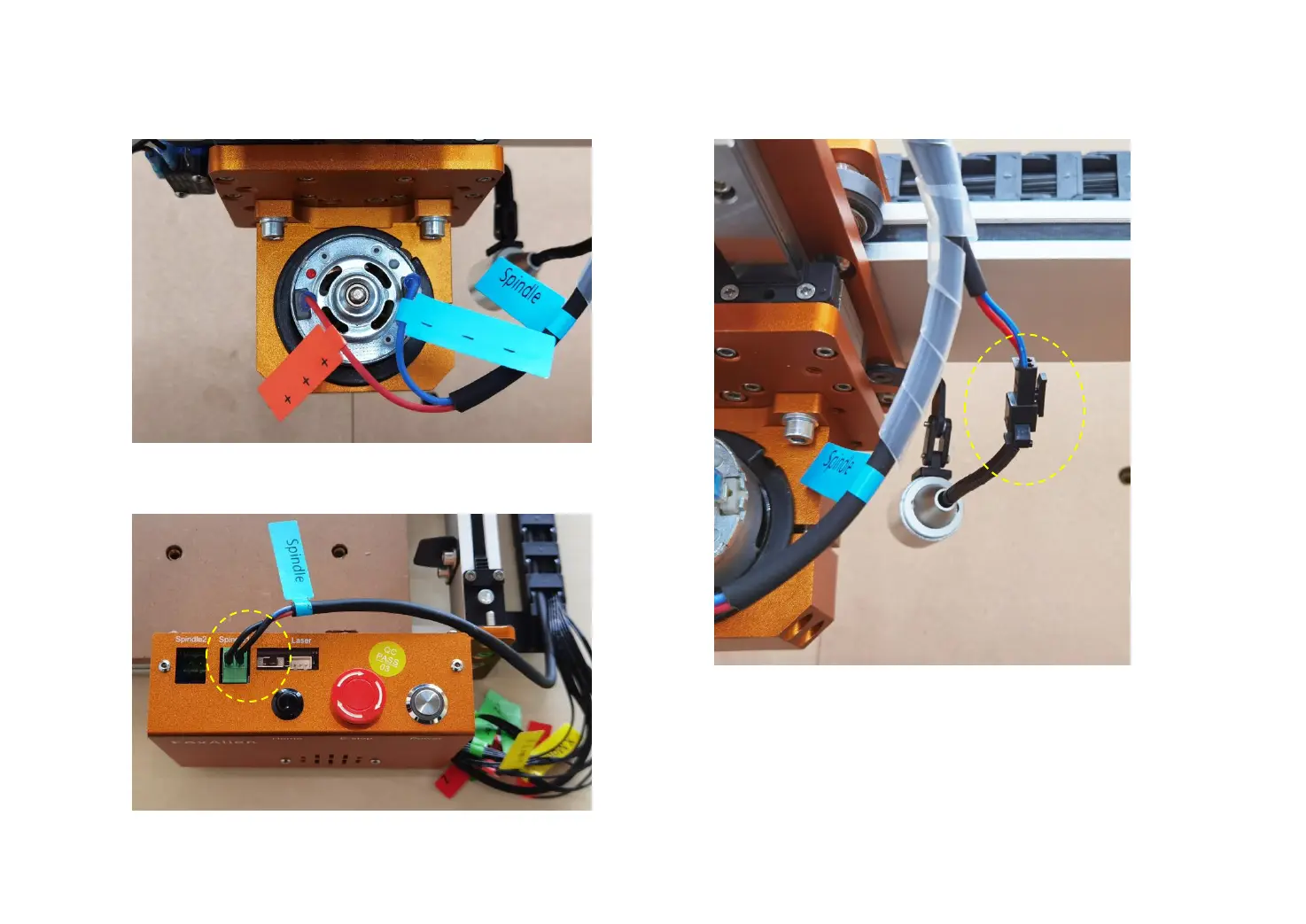

Positive wire (Red) connects to the port with red dot
Negative wire (Blue) connects to the other port
Light: Insert the plug to the socket
60W spindle plugged into Spindle 1 socket
Flip the toggle switch to the right side
