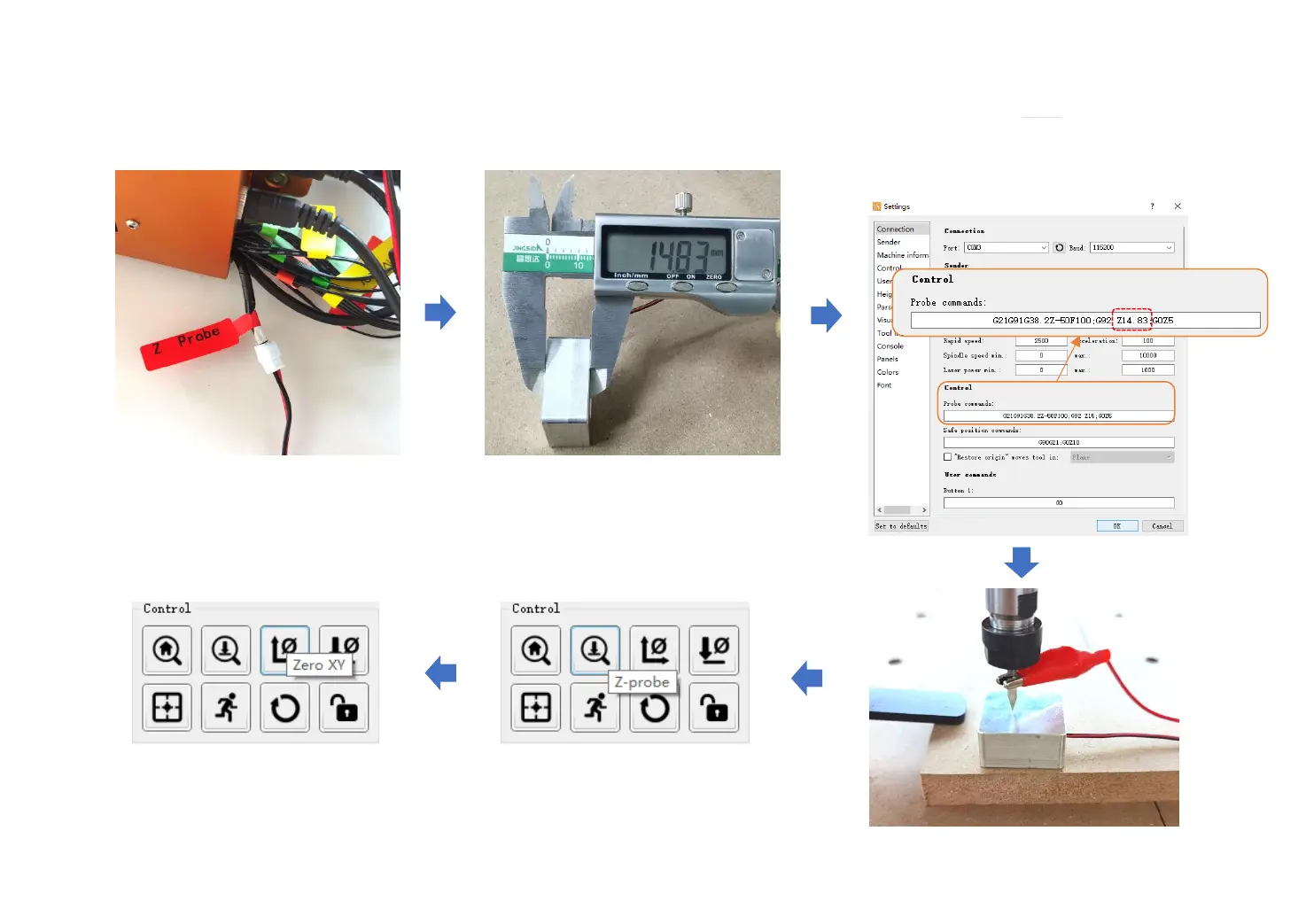

Z-Probe Operating
Place the probe as shown
Connect the wire
Click ”Zero XY”
Click Z-probe button to start detecting.
After Z-probe detection finished, remove
Z-probe, click “Send” to start engraving.
-26-
Modify Z-probe parameter. Default value is Z15,
change it to Z14.83 base of the parameter measured.
Measure Z probe actual size
(Thickness: 14.83mm)
To Next Page
