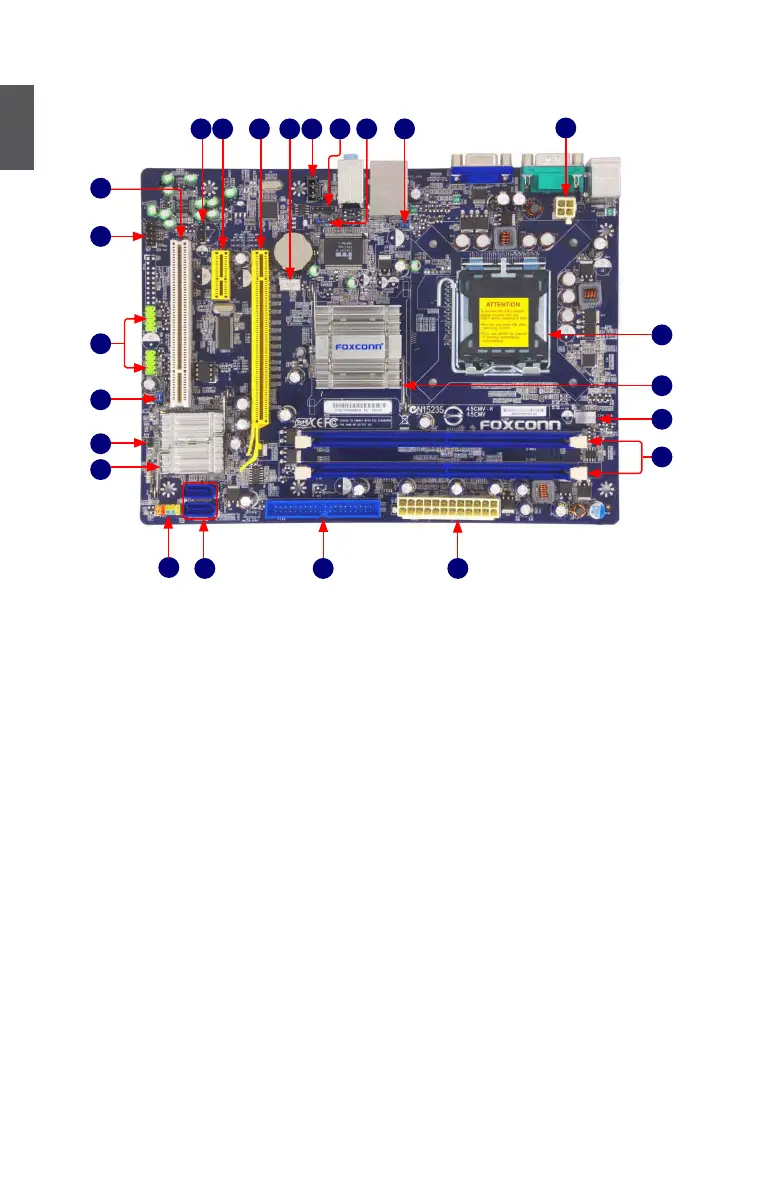

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. USBPWR2 Jumper
3. Clear CMOS Jumper
4. IrDA Connector
5. CD_IN Connector
6. SYS_FAN Header
7. PCI Express x16 Slot
8. PCI Express x1 Slot
9. Speaker Connector (or Buzzer)
10. PCI Slot
11. Front Audio Connector
12. Front USB Connectors
13. USBPWR1 Jumper
14. Chassis Intrusion Alarm Header
15. South Bridge: Intel
®
ICH7
16. Front Panel Connector
17. SATA Connectors
18. IDE Connector
19. 24-pin ATX Power Connector
20. DDR2 DIMM Slots
21. CPU_FAN Header
22. North Bridge: Intel
®
945GC Chipset
23. LGA 775 CPU Socket
10
11
13
14
15
8
9
12
18
16
17 19
21
20
23
1
3
5
46
7
2
22
