Chapter 2 Installation Instructions

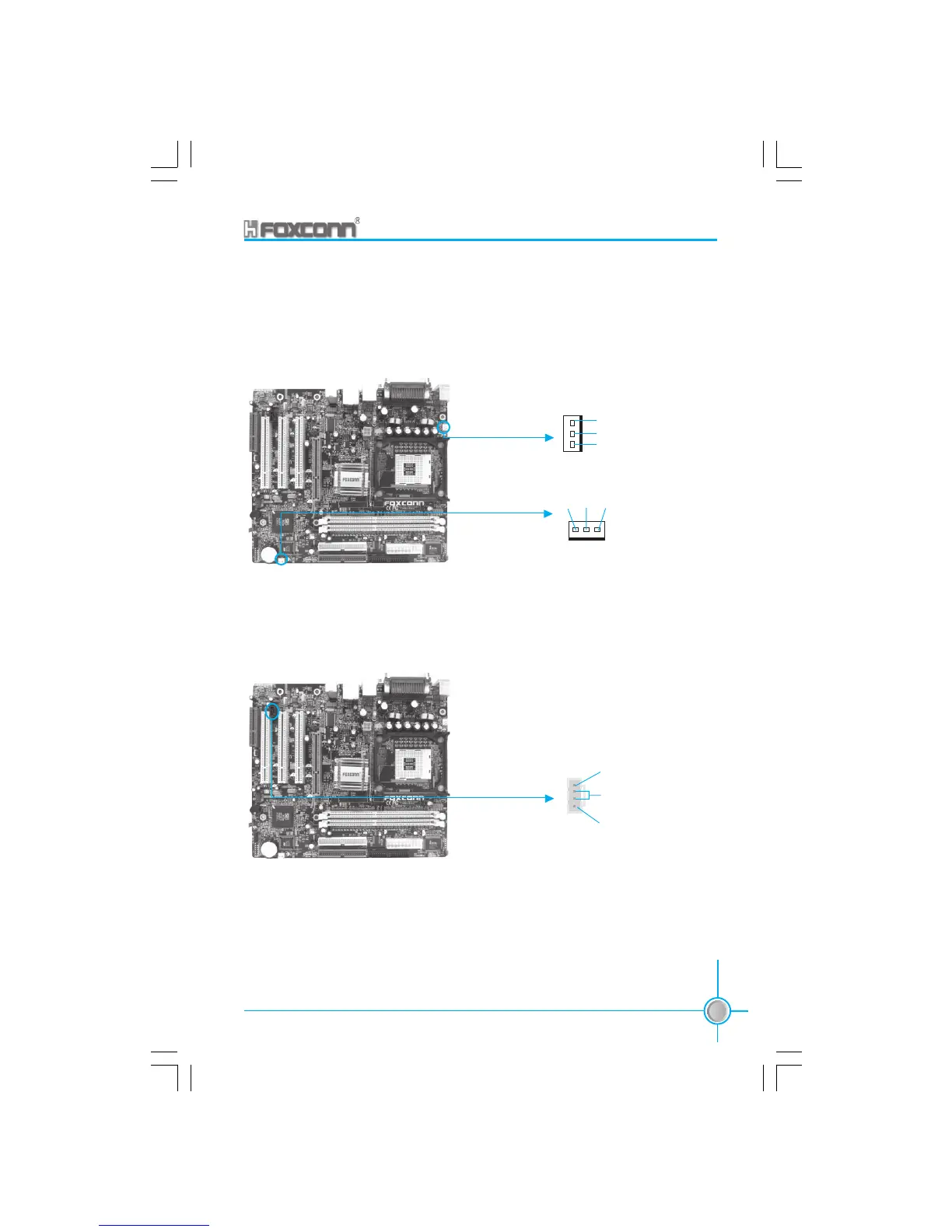

Fan Connectors: CPU_FAN, FAN1
The speed of CPU_FAN and FAN1 can be detected and viewed in “PC Health
Status” section of the CMOS SETUP. These fans will be automatically turned off
after the system enters suspend mode.
+12V
CPU_FAN
GND
SENSE
FAN1
Audio Connectors: CD_IN
CD_IN is Sony standard CD audio connector, it can be connected to a CD-ROM
drive through a CD audio cable.
CD_IN
CD_L
GND
CD_R
1
SENSE
+12V
GND
1
1
