Chapter 2 Installation Instructions
24
661M03 Series User Manual

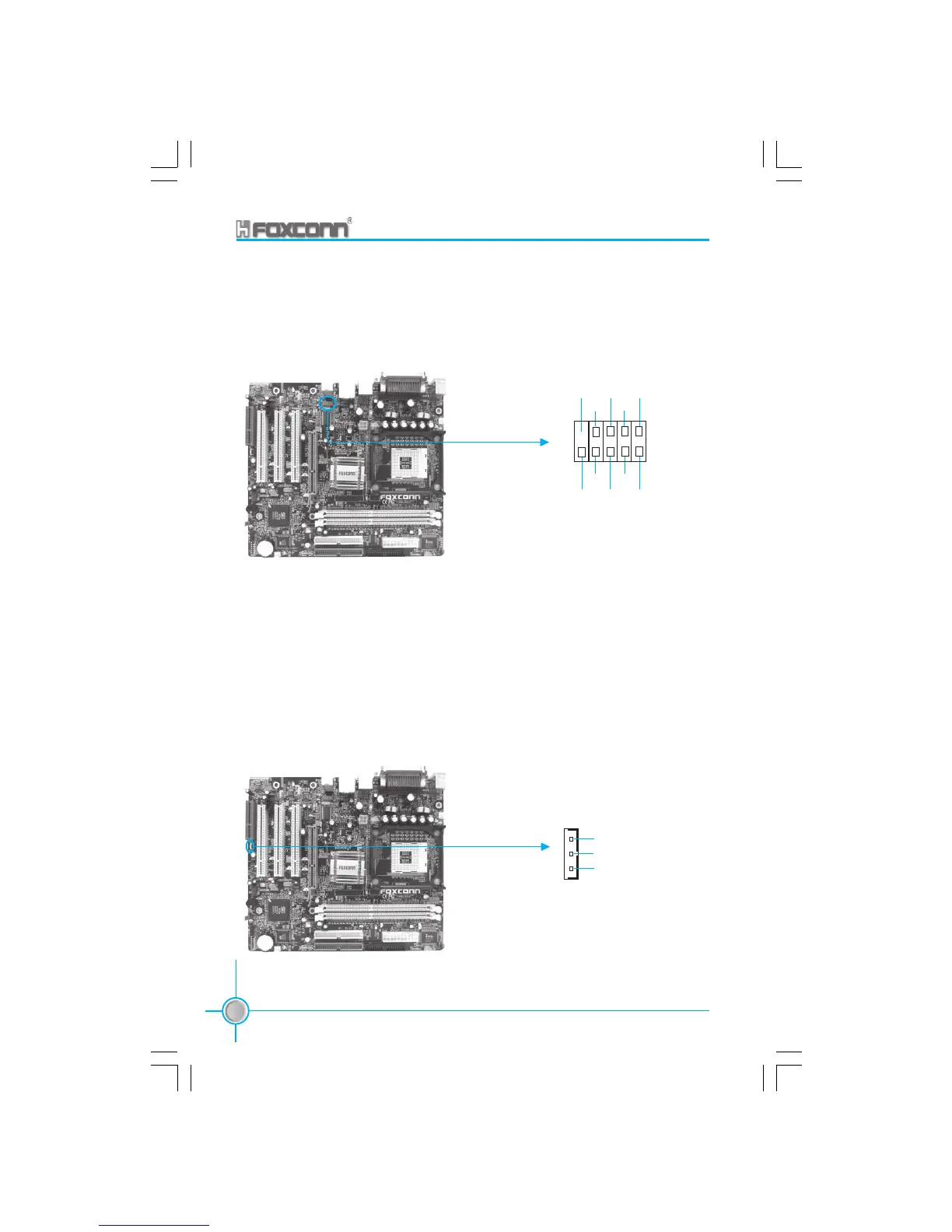

1394 Header: F_1394 (optional)
The 1394 expansion cable can be connected to either the front (provided that
the front panel of your chassis is equipped with the appropriate interface) or
real panel of the chassis.
Wake-Up On LAN: WOL
Through the Wake-Up On LAN function, a wake event occurring from the net-
work can wake up the system. To utilize this function, please be sure an ATX 12V
power supply with a 5VSB line capable of delivering a current of at least 720mA,
and a LAN adapter which supports this function. Then connect the header to the
relevant connector on the LAN adapter, set “MACPME Power Up Control” and
“PCIPME Power Up Control” to enabled in the “POWER MANAGEMENT SETUP”
section of the CMOS SETUP. Save and exit, then boot the operating system
once to make sure this function takes effect.
5V SB
GND
WOL
1
LAN wake up
F_1394
GND
VCC
B -
GND
A -
1
VCC
B +
GND
Empty A +
To Next Page
