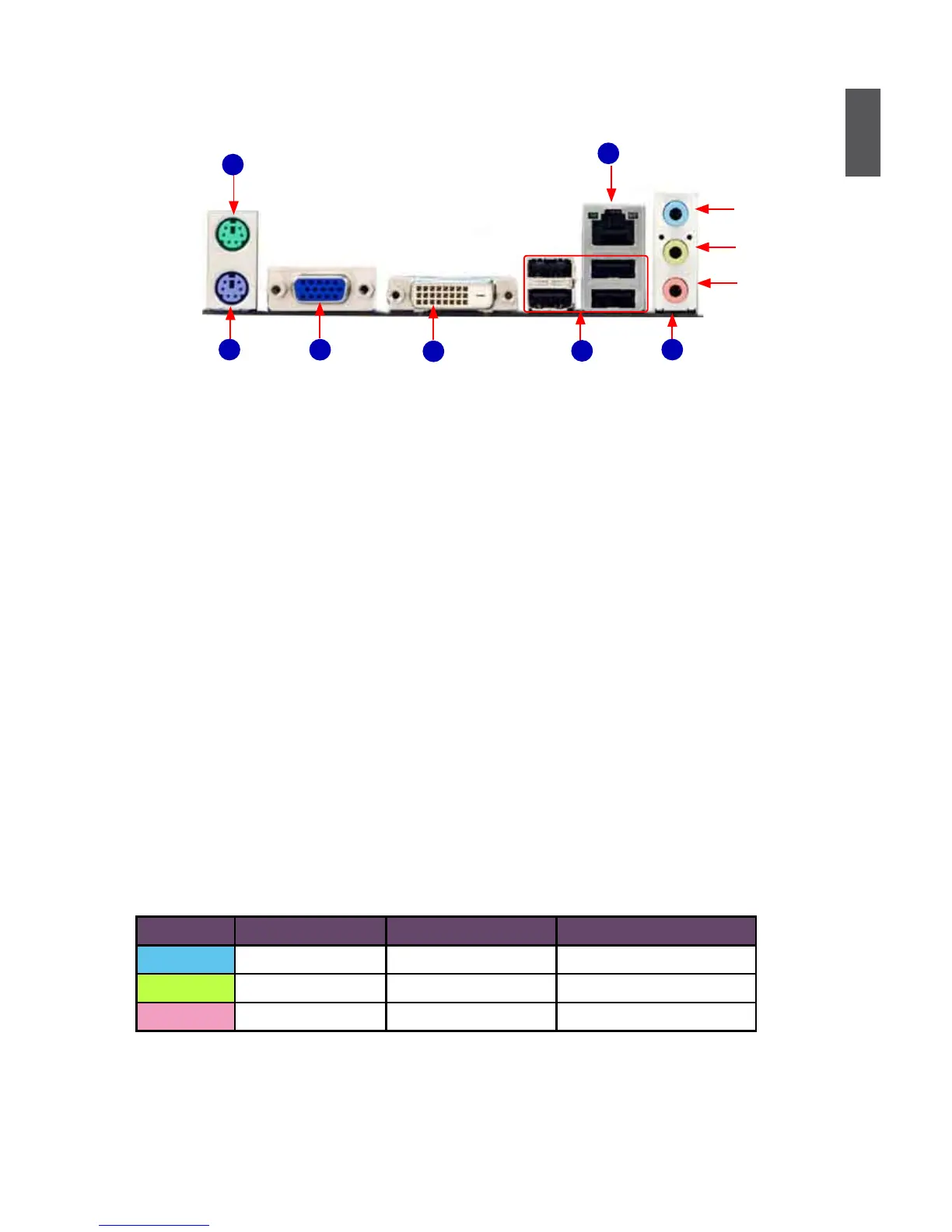

1-3 Back Panel Connectors
1. PS/2 Mouse Port
Use the PS/2 port (purple) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. VGA Port
To connect with external display devices, such as monitor or LCD display.
4. DVI-D Port
The DVI-D port supports DVI-D specication. Connect a monitor that supports DVI-D connection
to this port.
5. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
6. Audio ports
For the denition of each audio port, please refer to the table below :
Port 2-channel 4-channel 5.1-channel
Blue Line In Rear Speaker Out* Rear Speaker Out*
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Center/Subwoofer Out*
* : Please refer to Chapter 4, and install the audio driver (in CD) to assign the audio output ports
for different applications of 2/4/5.1 channels. The fundamental audio outputs are depicted in
the table above.
LAN Port
PS/2 Mouse Port
Audio Ports
Line Out
Microphone
Line In
7
VGA Port
3
6
4
PS/2 Keyboard Port
DVI-D Port
2
5
1
USB Ports
