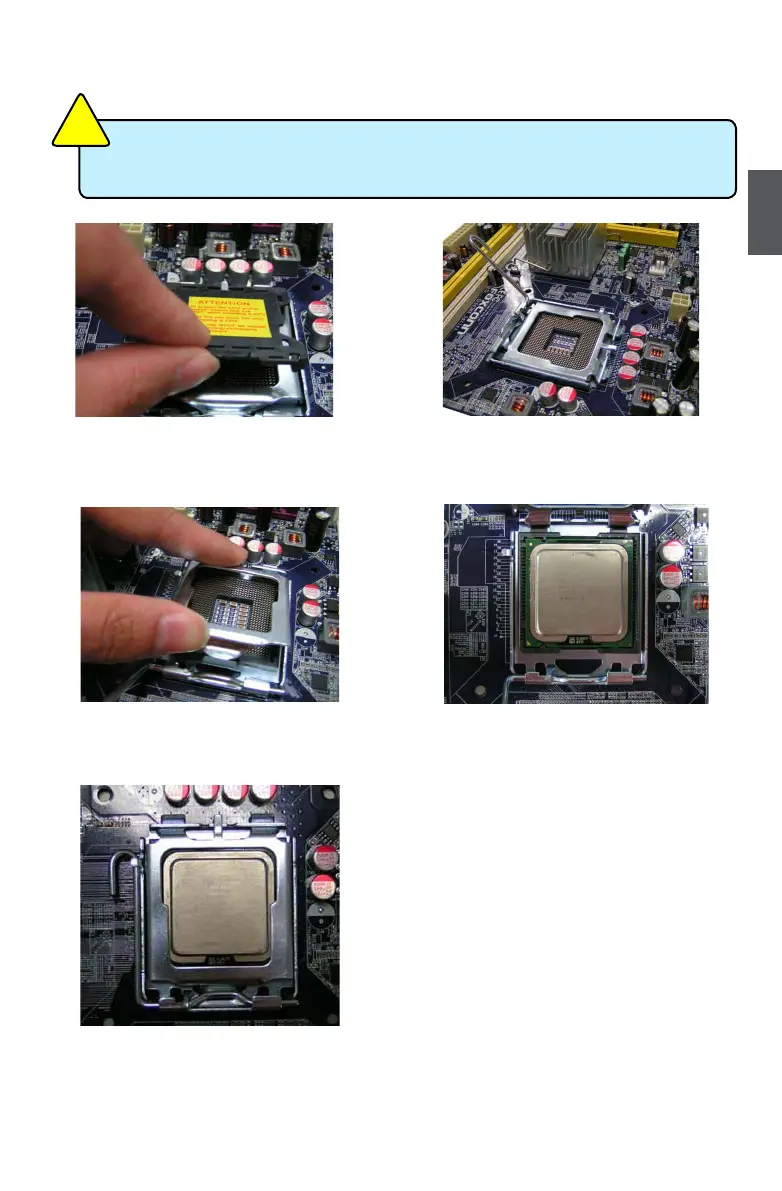

Follow the steps to install the CPU onto the CPU socket :
1. Remove protective socket cover. 2. Release the CPU socket lever.
3. Lift the metal cover on the CPU
socket.
5. When CPU is properly seated,
replace the metal cover and push the
CPU socket lever back to its locked
position.
4. Check Pin-1 marking (triangle) with
the Pin-1 corner of the CPU socket,
align the CPU notches with the socket
alignment keys and gently put the
CPU onto the socket.
Before installing the CPU, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the CPU.
