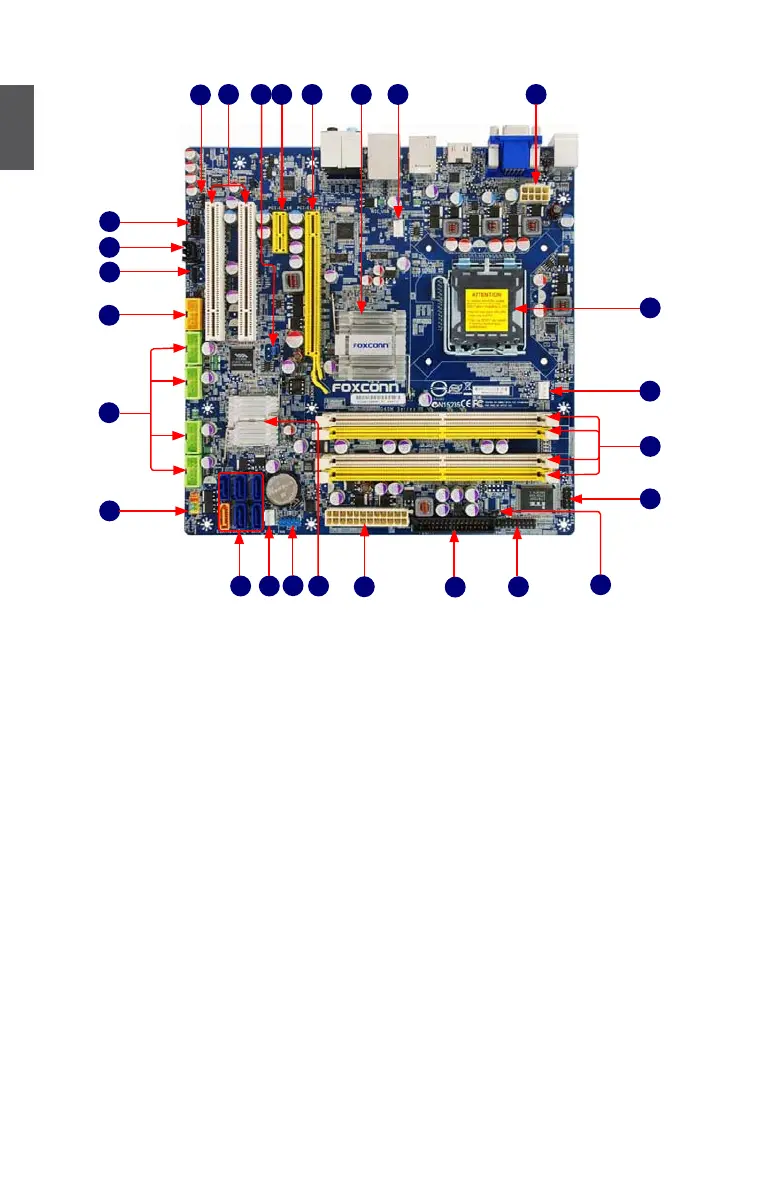

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 8-pin ATX 12V Power Connector
2. NB (North Bridge) Fan Header
3. North Bridge: Intel
®
G45
4. PCI Express x16 Slot
5. PCI Express x1 Slot
6. Clear CMOS Jumper
7. PCI Slots
8. S/PDIF_OUT Connector
9. Front Audio Connector
10. CD_IN Connector
11. Speaker Connector
12. 1394a Connector (G45M-S)
13. Front USB Connectors
14. Front Panel Connector
15. SATA Connectors
16. SYS_FAN Header
17. COM1 Header
18. South Bridge: Intel
®
ICH10 (G45M)
Intel
®
ICH10R (G45M-S)
19. 24-pin ATX Power Connector
20. Floppy Connector
21. TPM Connector
22. Chassis Intrusion Alarm Header
23. IrDA/CIR Connector
24. DDR2 DIMM Slots
25. CPU_FAN Header
26. LGA 775 CPU Socket
1
13
9
15
22
21
17
3
20
12
16
10
18
19
14
4
2
23
11
26
24
25
67
8
5
