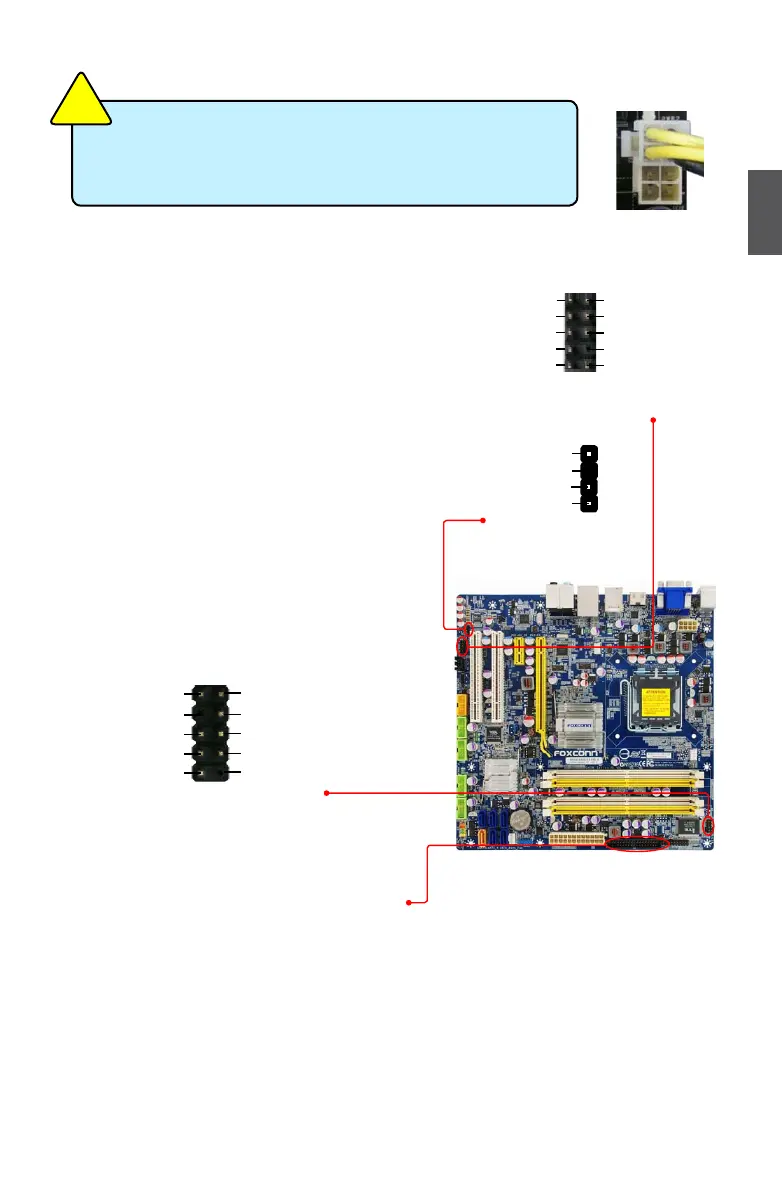

Audio Connector : F_AUDIO
The audio connector supports HD Audio standard. It
provides the Front Audio output choice.
S/PDIF OUT Connector : SPDIF_OUT
The connector is used for S/PDIF output.
IrDA/CIR Connector : IR/CIR
This header supports infrared wireless transmitting
and receiving device.
Floppy Disk Drive Connector : FLOPPY
This motherboard includes a standard oppy disk
drive (FDD) connector, supporting 360KB, 720KB,
1.2MB, 1.44MB, and 2.88MB FDDs.
SPDIF_OUT
+5V
EMPTY
SPDIF_OUT
GND
1
2
3
4
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1
2
109
F_AUDIO
PORT2_R
Connect a 4-pin
power plug
We recommend you using an 8-pin ATX 12V power supply. If
you are using a 4-pin power supply, you need to align the ATX
power connector according to the picture on the right.
C
A
U
T
I
O
N
!
+5V
EMPTY
IRRX
GND
IRTX
+5VSB
CIRRX
CIRTX
GND
EMPTY
IR/CIR
1 2
9 10
