Foxconn H77MXV-D User Manual

HARDWARE INSTALLATION
15

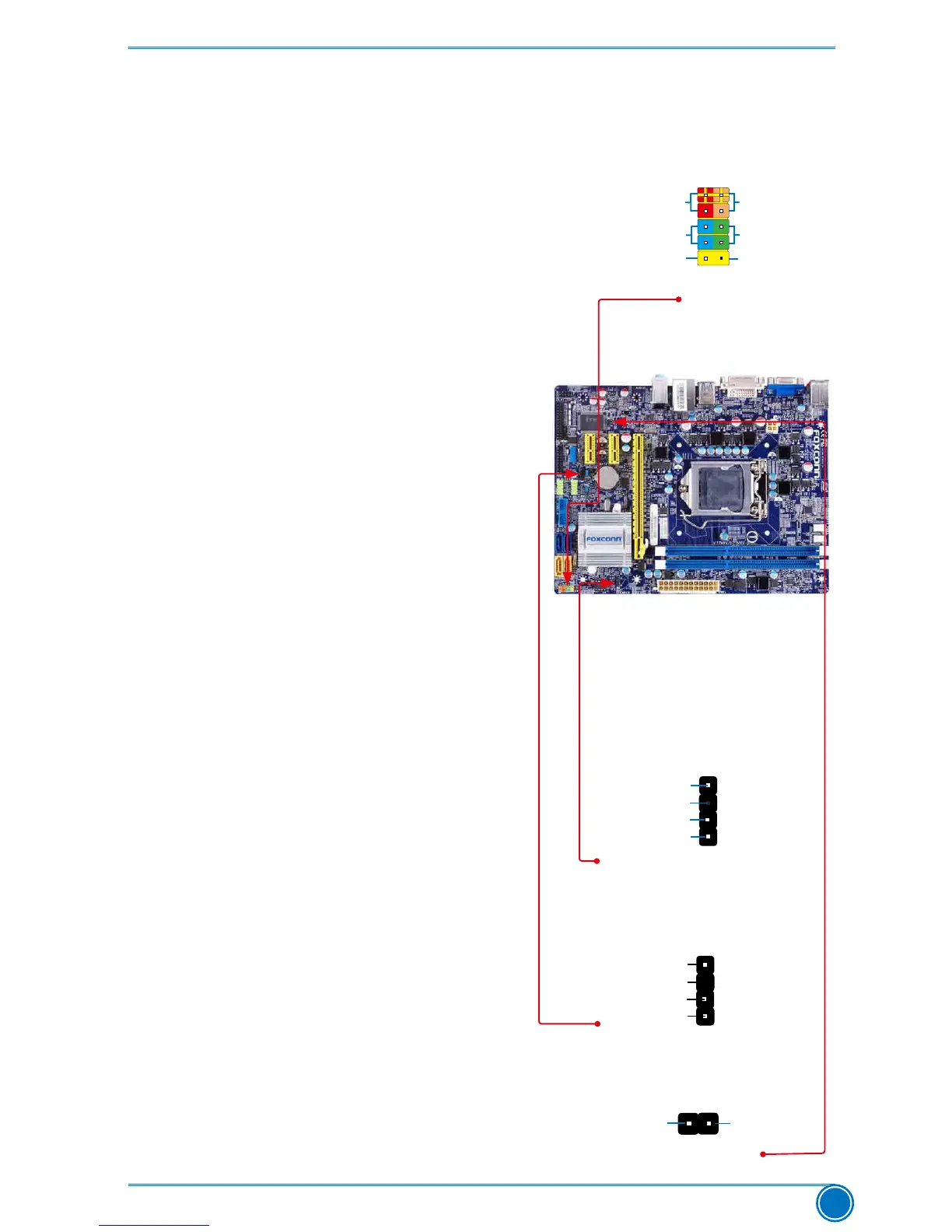

Front Panel Connector: FP1
This motherboard includes one connector for
connecting the front panel switch and LED
Indicators.
Hard Disk LED Connector (HDD-LED)
Connect to the chassis front panel IDE
indicator LED. It indicates the active status
of the hard disks. This 2-pin connector is
directional with +/- sign.
Reset Switch (RESET-SW)
Attach the connector to the Reset switch on
the front panel of the case; the system will
restart when the switch is pressed.
Power LED Connector (PWR-LED)
Connect to the power LED indicator on the
front panel of the chassis. The Power LED
indicates the system’s status. When the
system is in operation (S0 status), the LED
is on. When the system gets into sleep mode
(S1) , the LED is blinking; When the system
is in S3/S4 sleep state or power off mode
(S5),theLEDisoff.This2-pinconnectoris
directional with +/- sign.
Power Switch Connector (PWR-SW)
Connect to the power button on the front
panel of the chassis. Push this switch allows
the system to be turned on and off rather than
using the power supply button.
Speaker Connector: SPEAKER
The speaker connector is used to connect speaker
of the chassis.
S/PDIF Connector: SPDIF_OUT
The connector is used for S/PDIF output.
Chassis Intruder Alarm Connector : INTR
The connector can be connected to a security
switch on the chassis. The system can detect
the chassis intrusion through the function of this
connector. If eventually the chassis is closed, the
system will send a message out.
NC
PWR
EMPTY
SPEAKER
SPKJ
1
2
3
4
INTR
GND
INTRUDERJ
1
+5V
EMPTY
SPDIF_OUT
GND
1
2
3
4
SPDIF_OUT
HDD-LED
RESET-SW
NC
+
-
PWR-SW
+
-
PWR-LED
EMPTY
1
2
10
9
FP1
