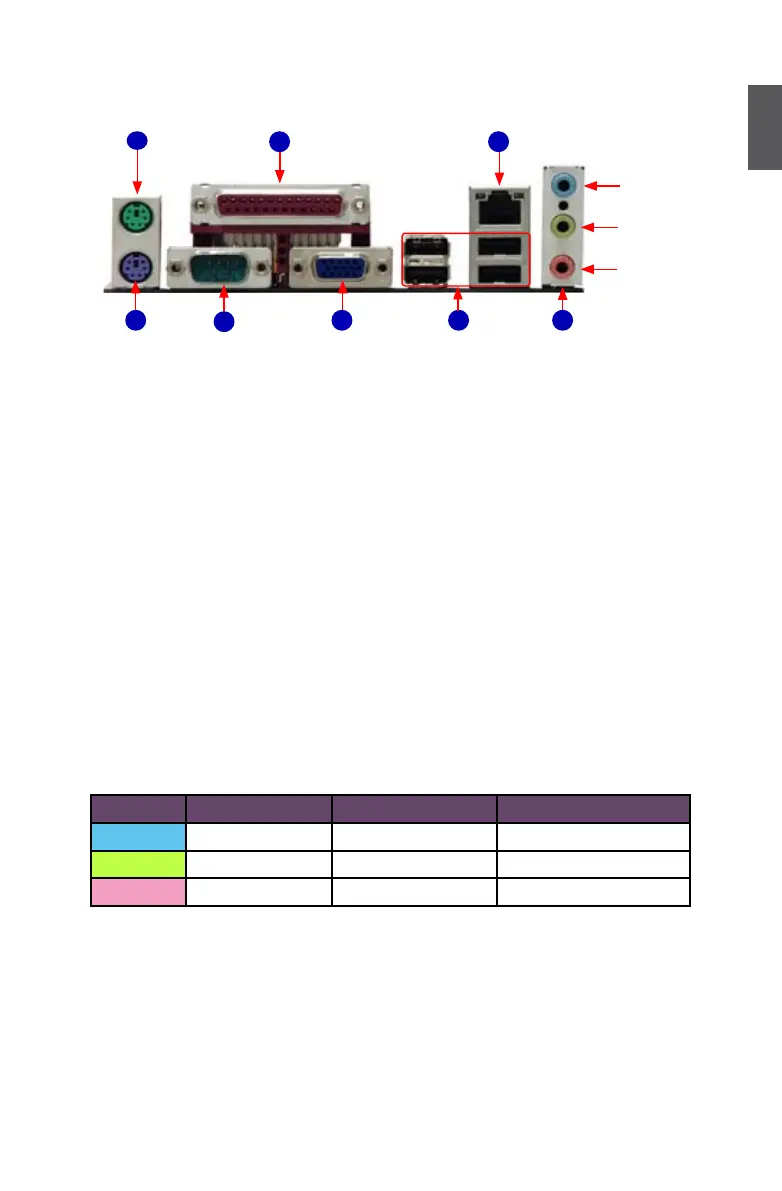

1-3 Back Panel Connectors
1. PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. Parallel Port
This connector provides printer port interface.
4. Serial Port
This is output of RS232 COM1 port.
5. VGA Port
To connect with external display devices, such as monitor or LCD display.
6. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
7. Audio Ports
For the denition of each audio port, please refer to the table below :
* : Please refer to Chapter 4, and install the Realtek audio driver (in CD) to assign the audio
output ports for different applications of 2/4/5.1 channels. The fundamental audio outputs are
depicted in the table above.
USB Ports
LAN PortParallel Port
PS/2 Keyboard Port
PS/2 Mouse Port
7
1
3
Audio Ports
8
VGA Port
4
5
2
6
Line Out
Microphone
Line In
Serial Port
Port 2-channel 4-channel 5.1-channel
Blue Line In Rear Speaker Out* Rear Speaker Out*
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Center/Subwoofer Out*
