5.1.1 Quick Scan
Quick Scan performs an automatic system test to determine which control modules are installed on
the vehicle and provides diagnostic trouble codes (DTCs) overview. Depending on the number of
control modules, it may take 10 minutes or longer to complete the test.
To perform an automatic system scan:
1. Scroll with the arrow keys to highlight Quick Scan from the menu and press ENTER to start.

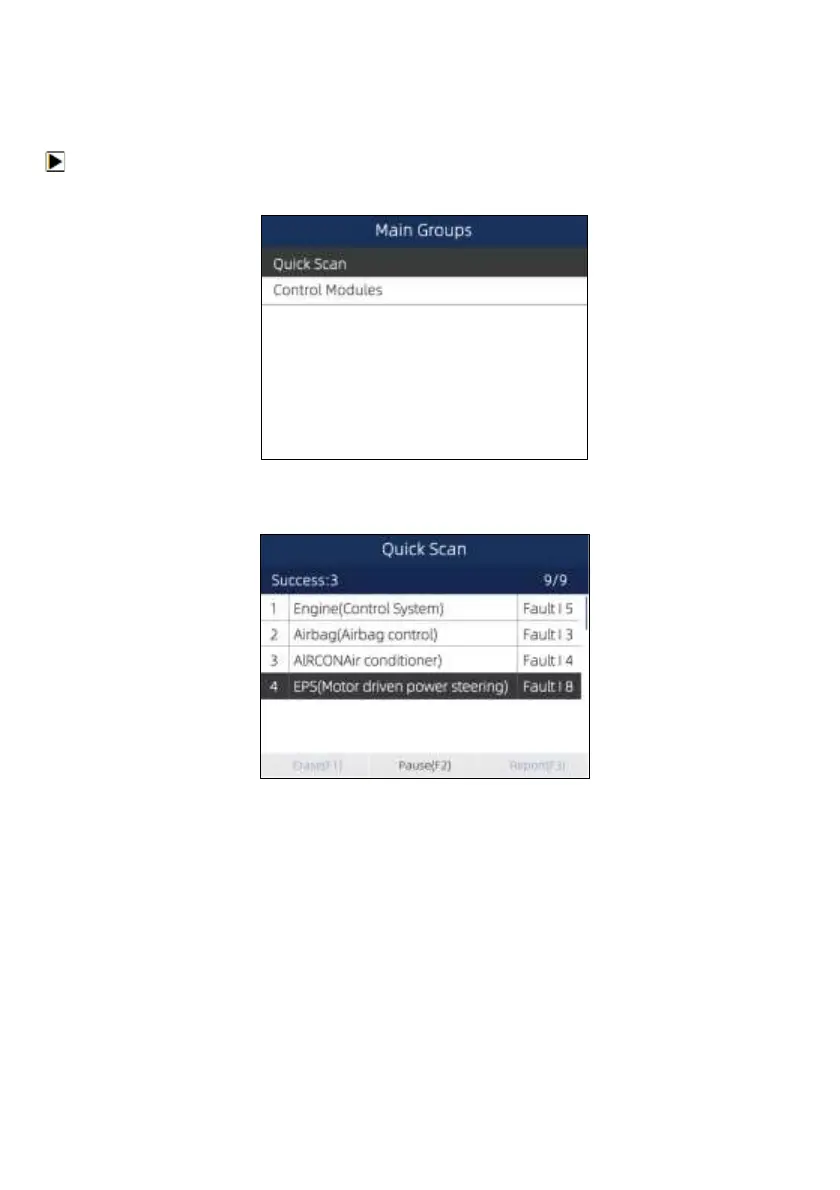

Figure 5-1 Sample Main Group Screen
2. To pause the scan, press the function key corresponding with Pause on the screen.
Figure 5-2 Sample Quick Scan Screen
3. At the end of successful automatic controller scan, a menu with a list of installed controllers
together with their DTC overview displays.
