FPV Model T20 - Assistant Software: Monitoring and Calibration

8
Remote Control Assistant Software Operation
Channel monitoring and calibration

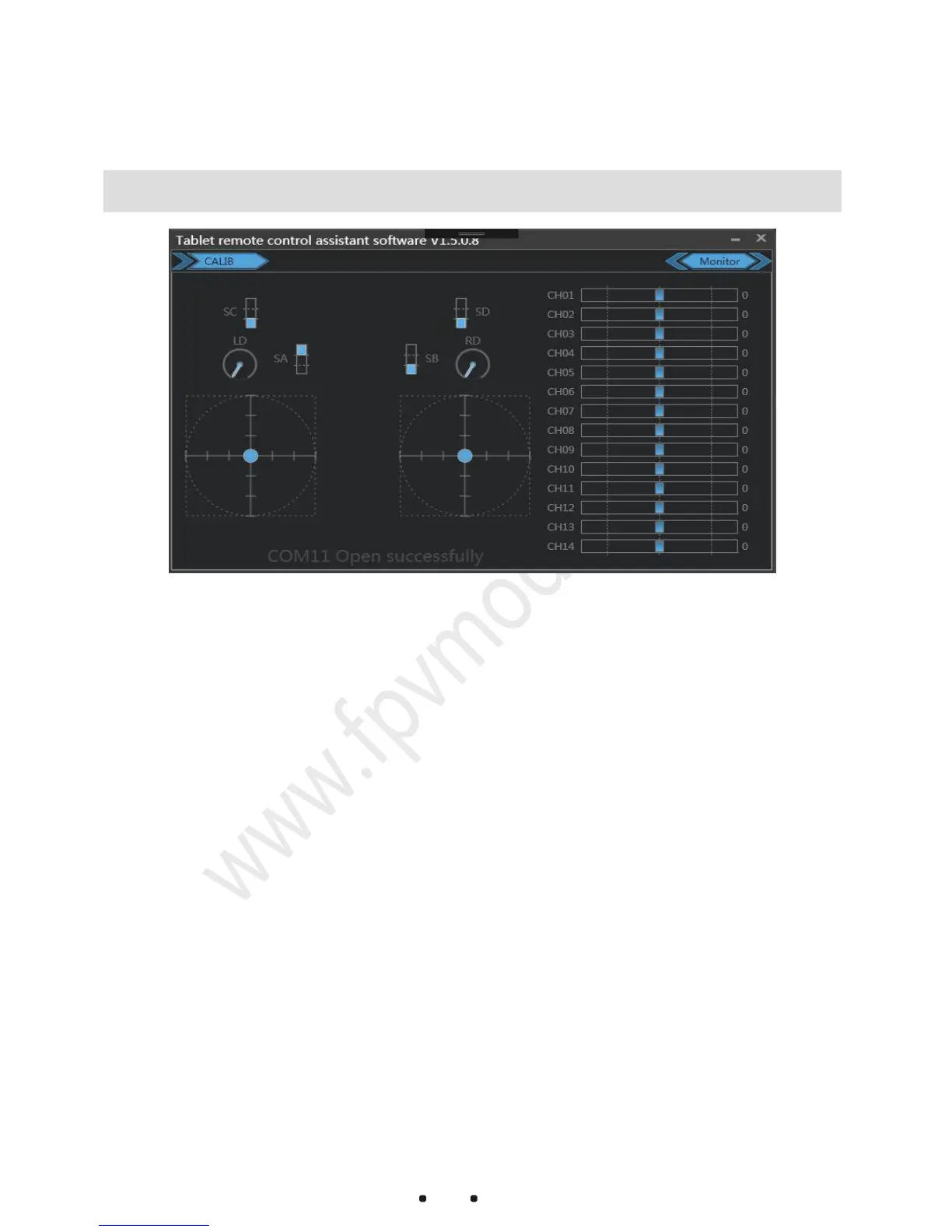

Figure 1-2
1. Turn on the remote controller and computer power button, and then
open tablet remote control assistant software.
2. Figure 1-2 is the monitor interface. Toggle each switch or joystick to
check if they are working.
3. Click on “CALIB”button. Then toggle the joysticks and rotate the knobs
maximally in 10 seconds.Now the software will collect the maximum value of
each joystick or knob and perform calibration (the factory has already
calibrated before delivery)
