Receiver Installation Guide
1. Tighten and install the antenna to the transmitter SMA connector.
2. Fix the transmitter to the plane, with the antenna vertically down

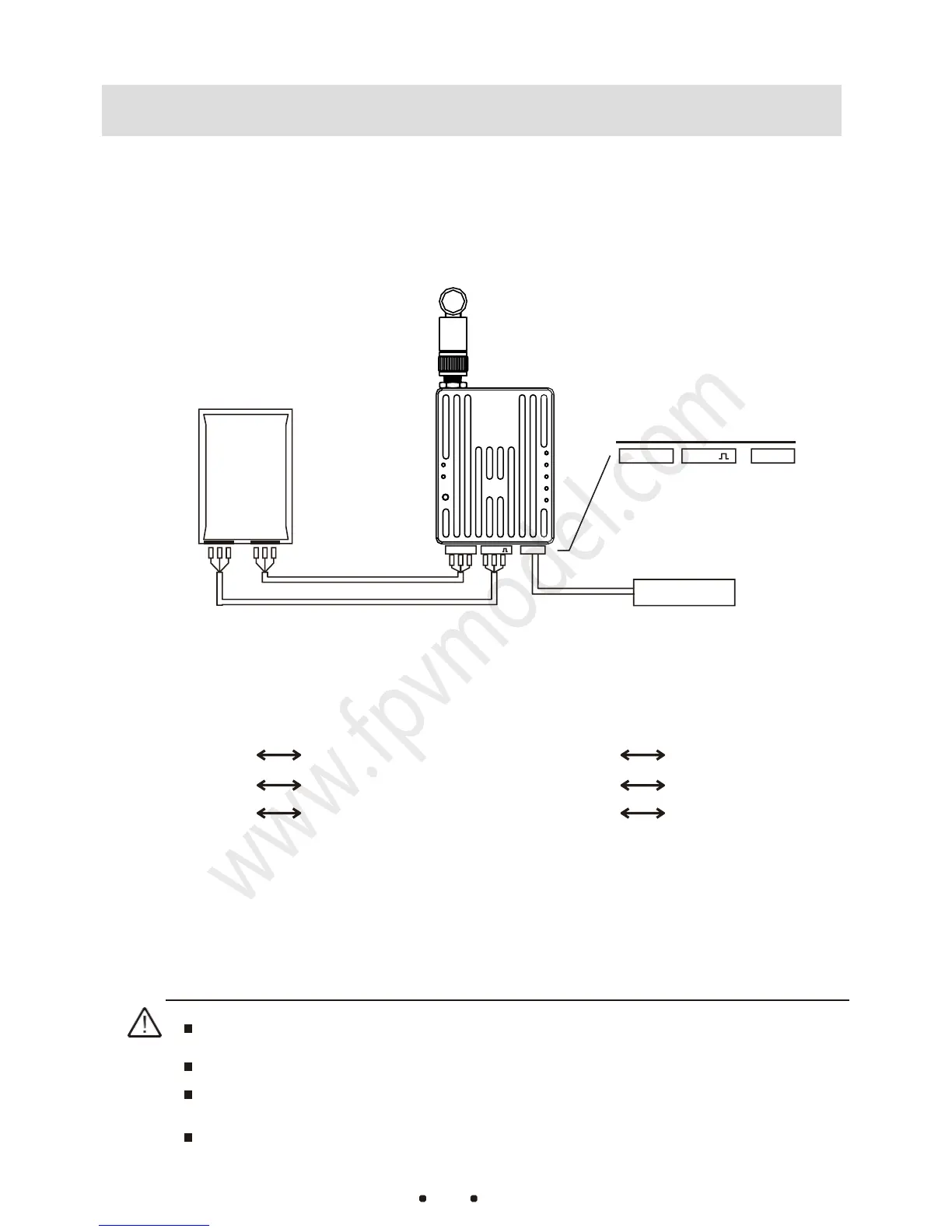

Figure 1-1
3. As shown in Figure 1-1, use the servo wire to connect the COM port and S-
BUS of the transmitter with other devices.
RX TX S S
Receiver GND GND
FC or other
Receiver+
+
FC or other
TX RX devices
-
-
devices
4.
Connect to a stable 7.4-12V DC Power supply.Ensure that the supply
current is greater than 2A. When the L1 indicator flashes blue, it
indicates that the transmitter and remote controller are connected
properly.
The receiver power is 1W. Please keep the receiver antenna away from other electronic devices
(GPS, compass, etc.) to avoid interference with flight.
Make sure to install the antenna before power on,otherwise the radio module may get burned
Try to get the antenna upside down and avoid obstructed obstacles when using, to avoid
communication distance shortened and even unable to communicate.
Be sure to use the specified model of antenna to properly install and use. Do not use other
types of antenna
DC:7.4~12V
TXGNDRX
- + - +
TX GNDRX
Flight
Controller
S-BUS
COM
- +
- +
