18
4 LAYOUTS & SWITCHES
Every layout includes 12 switch denitions, even though the FC-6 has only 6 switches.

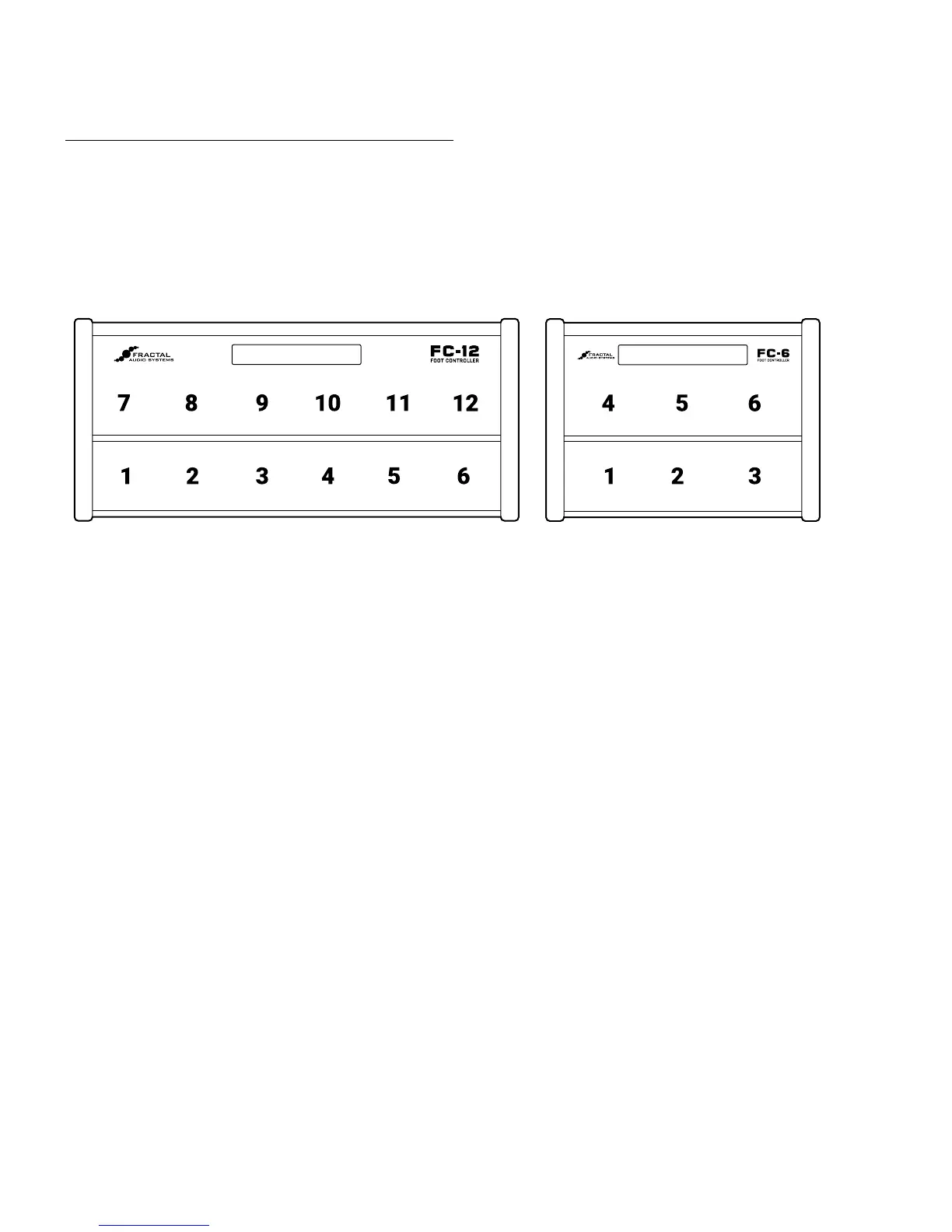

The 12 switches of every layout “flow” differently on the FC-6 and an FC-12, as illustrated below.
Switch denitions beyond the rst 6 are only for use on the FC-12.
Switch denitions that don’t t on one FC don’t “spill over” to another daisy-chained unit, and it is not possible to
“shift” to the other half of a layout on a single FC-6.
