Framo Cargo Pump SD125-5/ SD150-5
INSTRUCTION FOR MAINTENANCE AND REPAIR
No.
Date/sign.:
Page:
Rev. B:
1000-0131-4
Jan99/AGAa
8 of 21
22Feb06/JEB

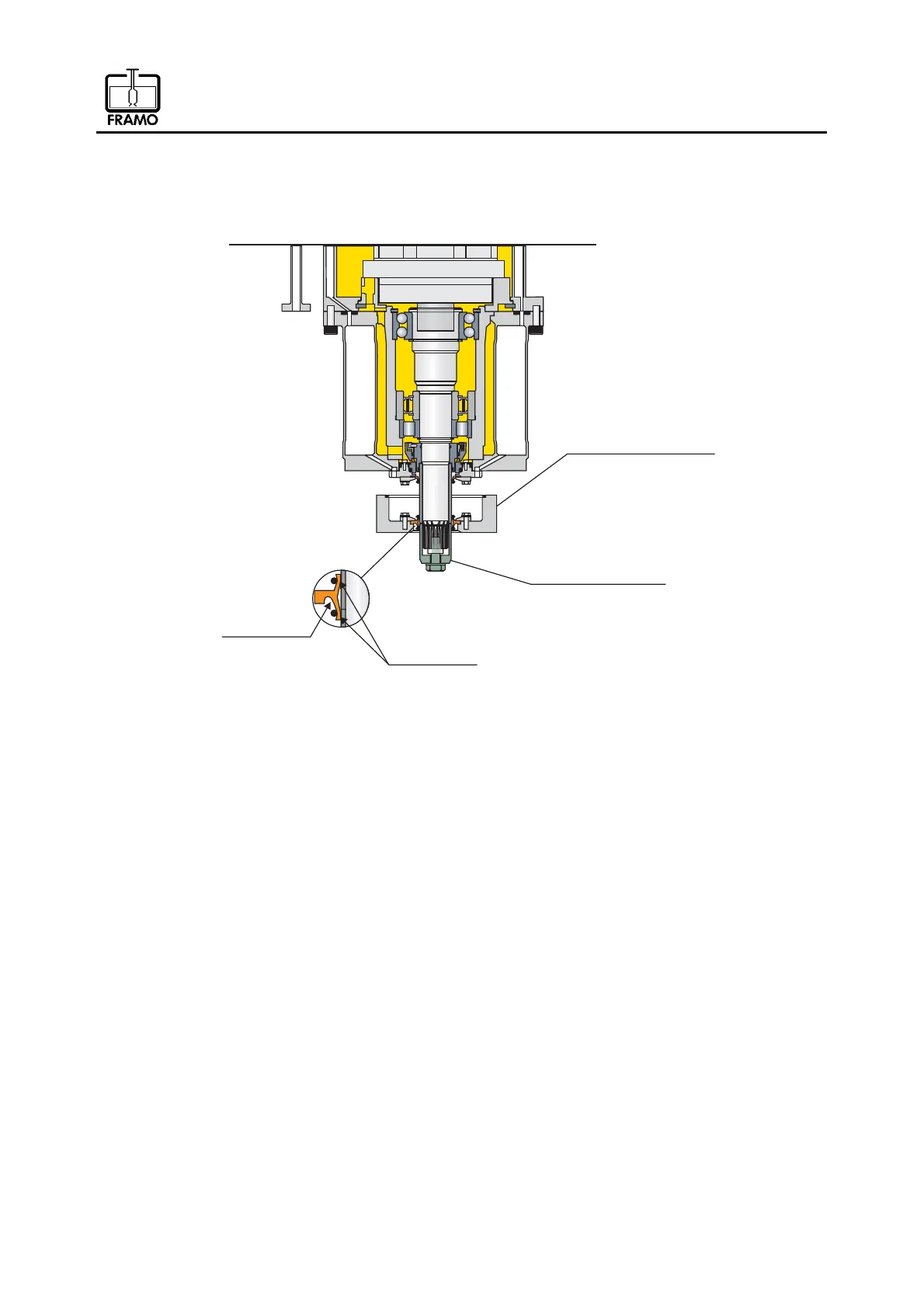

Install assembling cylinder to keep ceramic sleeve in place. See fig. 7.
Remove seal ring housing. Use bolts for seal ring housing as extractor bolts if necessary.
Í»¿´®·²¹¸±«-·²¹
©·¬¸½±²²»½¬·±²¬±
½±ºº»®¼¿³½¸»½µ°·°»
ß--»³¾´·²¹½§´·²¼»®
Í»²-·¬·ª»´·°-
ÒÞÿÙ®±±ª»
Fig. 7
Dismantle support rings and single/ double lip seal. Single and double lip seal is called Framo seal set.
Check and clean ceramic sleeve. Change Framo seal set if necessary.
Note! The ceramic sleeve must be handled very carefully as it is very brittle and may crack if
dropped.
