Framo Cargo Pump SD125-5/ SD150-5
INSTRUCTION FOR MAINTENANCE AND REPAIR
No.
Date/sign.:
Page:
Rev. B:
1000-0131-4
Jan99/AGAa
9 of 21
22Feb06/JEB

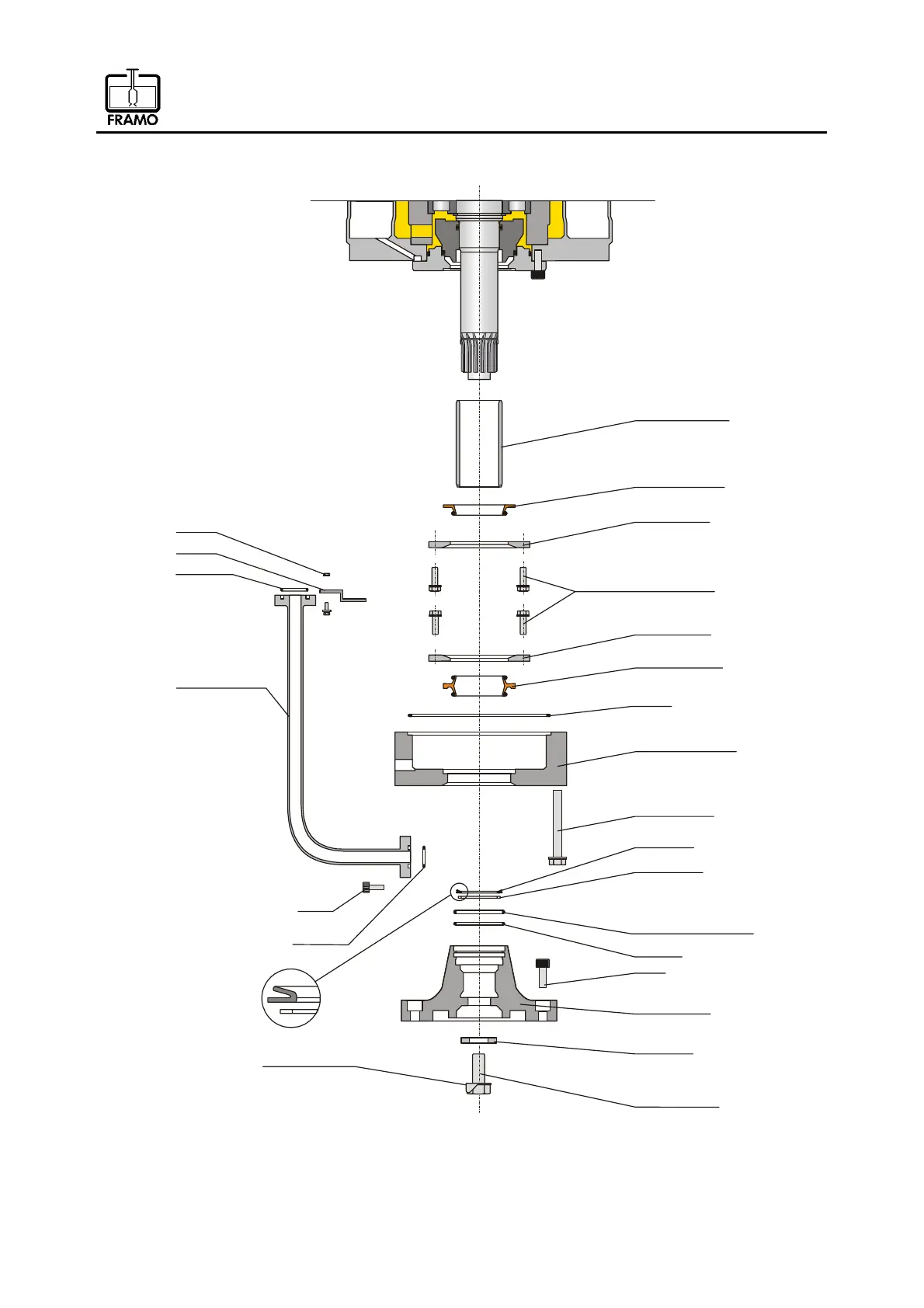

Exploded view of lip sea larrangement.
Fig. 8
Single lip seal
Support ring
Hexagon bolt
Support ring
Double lip seal
O-ring
Seal ring housing
Hexagon bolt
Drive ring
Framo seal element
O-ring
Bolt
Lower part of
cofferdam pipe
Seal ring
Bolt
Impeller hub
Washer
Bolt with
locking washer
Ceramic sleeve
Bracket
Seal ring
Replace
locking washer
at every service.
Plastic ring,
to be replaced
at every service.
Nut
