Pull the front out completely. Undo the
screw for the front stop, which is located
on the underside of the cooker hood, and
the pull it as far towards the front as pos-
sible, Fig. 7.
Fig. 8

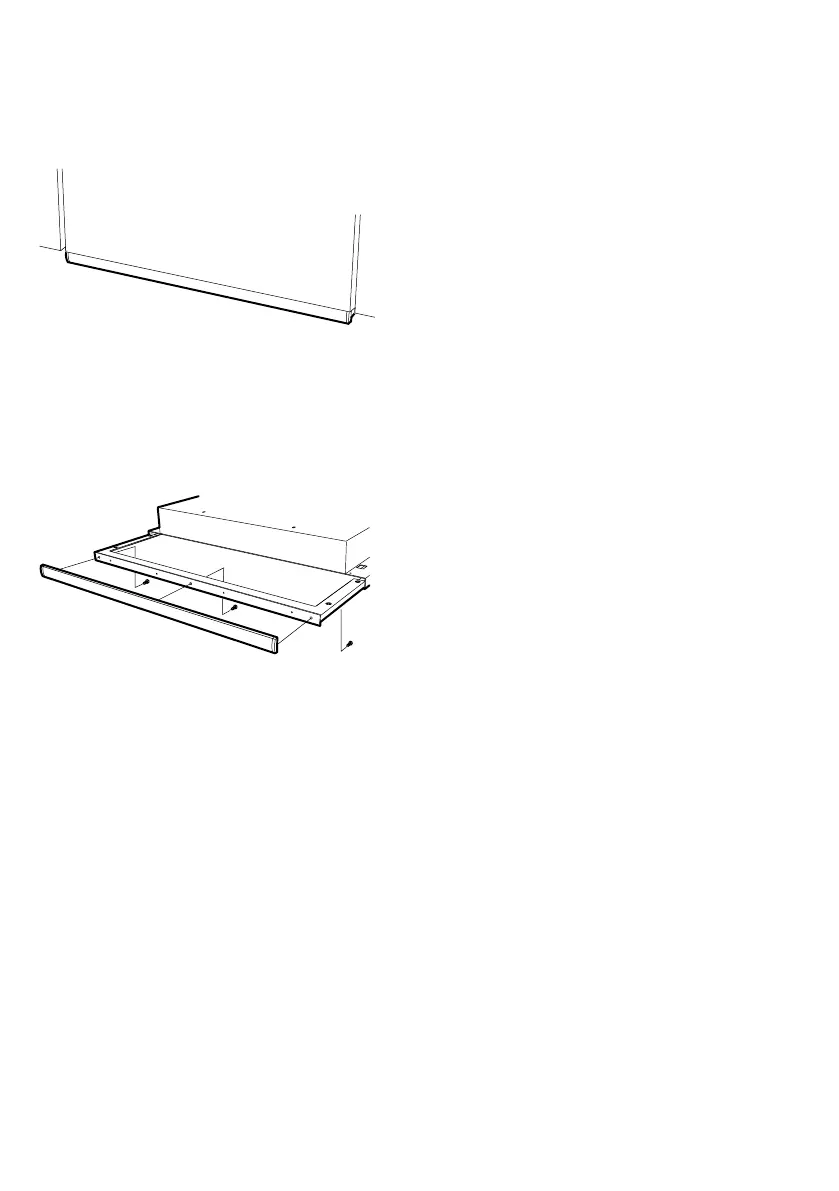

Slide in the front until it is correctly positio-
ned in relation to the cupboards, Fig. 8. Pull
out the front again and tighten the front
stop screw.
Changing front.
Fig. 9
The front is removable to enable replace-
ment with another front moulding. Undo
the screws according to Fig. 9.
14
