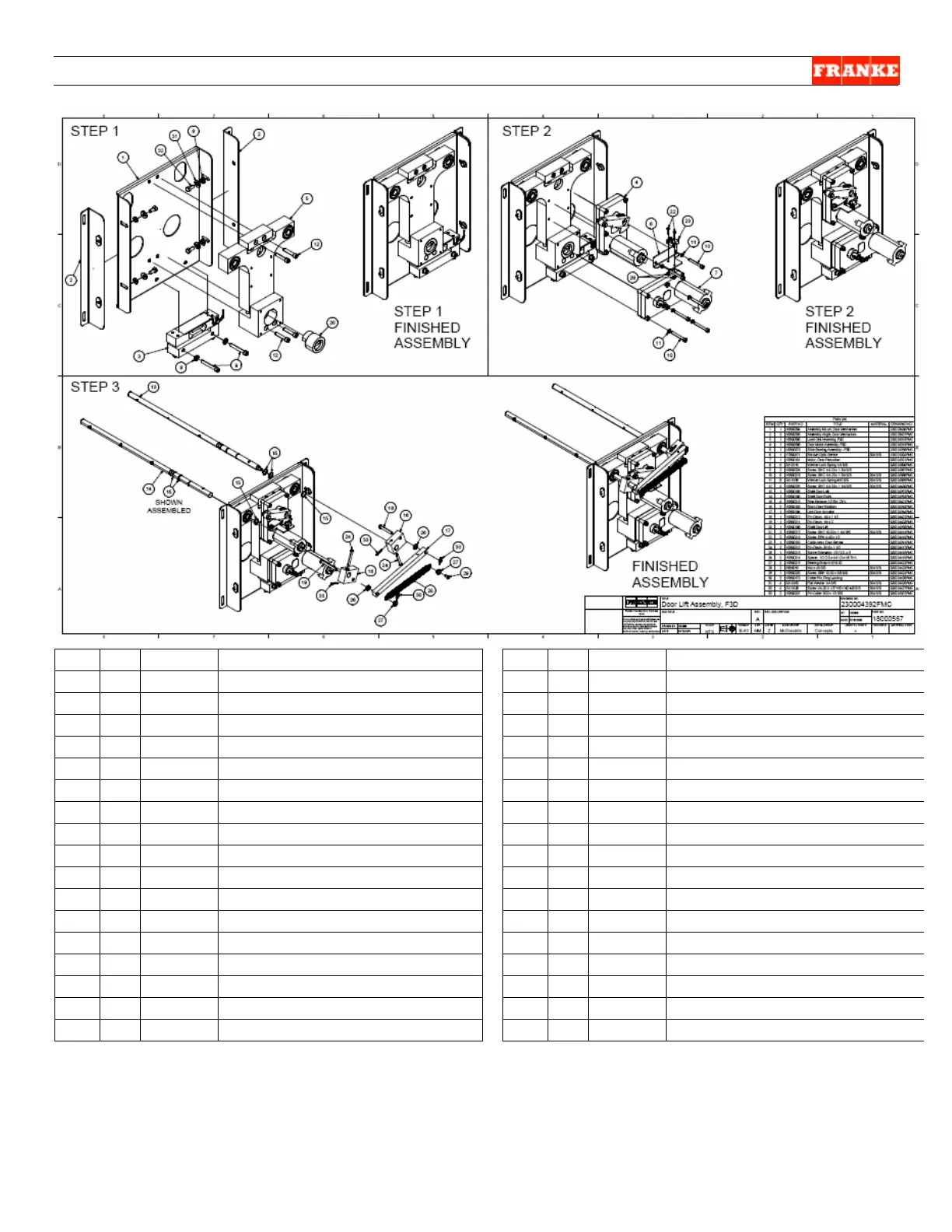

Franke F3Dn Twin - Parts List & Component Diagrams; Step 1 Finished Assembly; Step 2 Finished Assembly; Step 3 Assembled

F3Dn Service Manual Parts List & Component Diagrams / Section 1.4
For Technical Support, Call 800-537-2653. Copyright  2006 Franke, Inc. All rights reserved.
ITEM QTY PART NO TITLE
1 1 18000334 Assembly Mount, Door Mechanism
2 2 18000335 Assembly Angle, Door Mechanism
3 1 18000555 Load Cell Assembly, F3D
4 1 18000558 Door Motor Assembly, F3D
5 1 18000673 Slide Bearing Assembly - F3D
6 1 17000471 Bracket Optic Sensor
7 1 19000161 Motor, Gear Reduction
8 6 3416116 Washer Lock Spring 1/4 S/S
9 2 19000224 Screw, SHC 1/4-20 x 1 3/4 S/S
10 6 19000218 Screw, SHC 1/4-20 x 1 3/4 S/S
11 8 3416138 Washer Lock Spring #10 S/S
12 4 19000225 Screw, SHC 1/4-20 x 1 1/4 S/S
13 1 19000195 Shaft Door Left
14 1 19000196 Shaft Door Right
15 6 19000215 Ring Retainer 1/2 Ext. Zink
16 2 19000193 Block Door Rotation
ITEM QTY PART NO TITLE
17 1 19000194 Link Door Actuator
18 1 19000212 Pin Clevis, 1/4 x 1 1/2
19 1 19000211 Pin Clevis, 1/4 x 2
20 1 19000198 Shaft Door Lift
21 2 19000217 Screw, SHC 10-32 x 1 1/4 S/S
22 2 19000216 Screw, PPH 4-40 x 1/2
23 1 19000192 Cable Assy. Door Sensor
24 2 19000210 Pin Clevis, 3/16 x 1 1/2
25 1 19000213 Spring Extension, 1/2 O.D. x 5
26 2 19000214 Spacer, 1/2 O.D.x1/4 I.D.x1/8 THK
27 2 19000219 Bearing Snap-In 5/16 ID
28 2 3589010 Nut 4-40 S/S
29 1 19000220 Screw, SBH 10-32 x 3/8 S/S
30 2 19000170 Cotter Pin, Ring Locking
31 4 3416160 Flat Washer 1/4 S/S
32 4 3113128 Screw 1/4-
20 X 1/2" HEX HD MS S/S
33 2 19000207 Pin Cotter 3/32 x 1/2 S/S
Rev. 1 6/06
