Franke F3Dn Twin - General Service Instructions; The Basics; WARNING; Suggested [On-Truck] Repair Parts

F3Dn Service Manual General Service Instructions / Section 2.1
For Technical Support, Call 800-537-2653. Copyright  2006 Franke, Inc. All rights reserved.
2.1 An Introduction To F3Dn Service Manual
The Basics:
1) Technicians should be authorized to work on Franke
Equipment and be qualified to diagnose and repair
refrigeration equipment.
2) The F3Dn operates on 120VAC/60Hz or 230VAC/50Hz
power and is provide with a grounded plug and 10’ [3-
meter] power cord.
3) The F3Dn refrigeration system is charged with ozone-
safe R404A refrigerant. Only use R404A refrigerant
when recharging this unit.
4) Always verify proper unit loose component assembly,
proper unit cleaning and correct use of controls by unit
operators, before replacing or repairing components.
5) The F3Dn Compressor Package is top mounted and may
require use of a sturdy ladder to access components,
check for leaks or to replace the compressor.
Suggested [On-Truck] Repair Parts:
We suggest the following to ensure first-trip fix of the F3Dn:
120V/60Hz 230V/50Hz Description Quantity
19000388 19000388 Freezer Door Gasket 1
19000161 19000161 Drum/Door Lift Rotor Motor 2
19000165 19000165 Load Cell 1
18000558 18000558 Door [Open] Motor 1
19000192 19000192 Door-Open Sensor 1
19000798 19000798 Operator Touch Pad Control Panel 1
3126151 19000978 Main Power Switch 1
19000514* 19000515** Temperature Controller Kit 1
3156 3156 Siemens 24-Volt Power Supply 1
19000800 19000800 Main Control Board 2
18000795 18000795 Kit, Low Product Sensor 2
18000796 18000795 Kit, Basket Present Sensor 2
18000797 18000797 Kit, Drive Shaft Rotor Repair 2
18000798 18000798 Kit, Spring & Link Repair 2
18000799 18000799 Kit, Product Door (1-Side) 2
18000800 18000800 Kit, Product Baffle (6 Baffles) 2
3589847 19001086 Condenser Fan Motor 1
19001082 19001080*** Start Relay 1
[Continued on page 2]

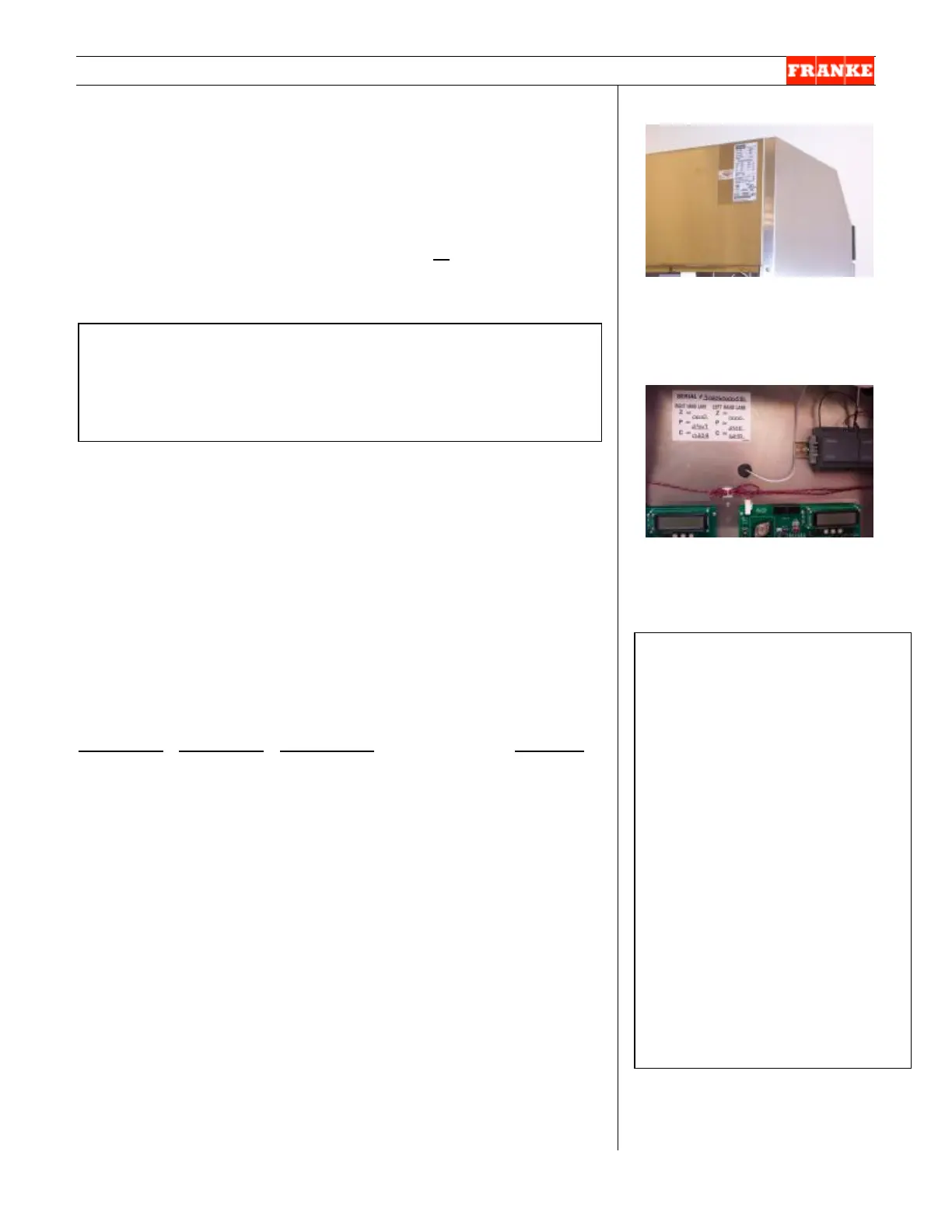

[Photo 1]
The F3Dn Unit Serial Number is
located at the top of the Model
Number & Data sticker, which is
on the back of the unit.
[Photo 2]
Load cell weight values are
checked and recorded on sticker
above main control boards,
before unit ships from Franke.
19000282 Cordset [8-
feet] 1
Rev. 1 12/06
@Tools Required:
[For Mechanical Systems Repair]
Ø 3/8” [10 mm] flat screw driver
Ø ¼” [6-7 mm] flat screw driver
Ø 1/16” [2 mm] flat screw driver
Ø 1/8” [3 mm] Allen/hex wrench
Ø 3/16” [5 mm] Allen/hex
wrench
Ø 5/32” [4 mm] Allen/hex
wrench
Ø 5 mm Allen/hex wrench
Ø 13 mm Allen/hex wrench
Ø 7/16” [11 mm] box/socket
wrench
Ø Razor knife
Ø Needle nose pliers
Ø ‘C’ ring pliers
Ø Small wire cutters
Ø Rubber mallet
Ø Feeler or Gap Gauge
Ø Plastic Wire Ties
WARNING:
Unplug unit from power source whenever servicing electrical
components or removing the rear service access panel.
Failure to unplug this unit may result in electric shock, burns
or death.
