4-in-1 tap
Avoid burns and scalding and pay attention when
using hot water. The temperature of the hot water
may be higher than 55°C.
Avoid burns and scalding and pay attention when
using boiling water. The temperature of the water
may be higher than 100°C.
Tiled and stone sinks will not withstand boiling
water; the difference in temperature can cause
these to crack. Always open the cold water tap
when pouring out boiling water and preferably
pour the boiling water directly into the drain.
Boiler
Before commissioning, ensure that the boiler is
filled with water.
Never pick up or carry the boiler with the hoses or
the mains lead.
M Box
The appliance must be connected always with the
cold water supply.
Before installation of the M-Box please make sure
that the drain outlet port of the M-Box is at least
12 cm above the connection of the waste pipe.
The drain hose must be connected with a
continuous downwards gradient to ensure that the
M-Box drains correctly, therefore please note you
may need to cut the drain hose. The connection
point of the drain hose should be downline of the
sink siphon.
Filter cartridge
The use of a water filter is mandatory to protect
the product against lime scale deposits.
After storage at a temperature of 0°C, the
filter must first be stored for 24 hours at room
temperature before it is installed.
The filter cartridge must not be opened or
damaged.
The filter cartridge and the system must be
intensively flushed after a prolonged standstill
period and/or during maintenance work (2 litres
of flushing water after 1 week standstill; 10 litres
of flushing water after 4 weeks’ standstill).
The filter cartridge must be replaced if, after
commissioning, it has not been in operation for
3 months.
Water quality requirements
pH value
7 – 9.5
Waterhardness
3 - 20˚dH / 14 - 21˚F / 15 - 25˚E/Clark
Iron content (Fe)
< 0.2 mg/l
Chlorine content (Cl)
< 150 mg/l
Conductivity
< 125 mS/m
Chemical additions
Not permitted
Installation instructions
CAUTION: Never use serrated tools in order
to avoid damage. Where necessary, always
use the appropriate tools for tightening the coupling.

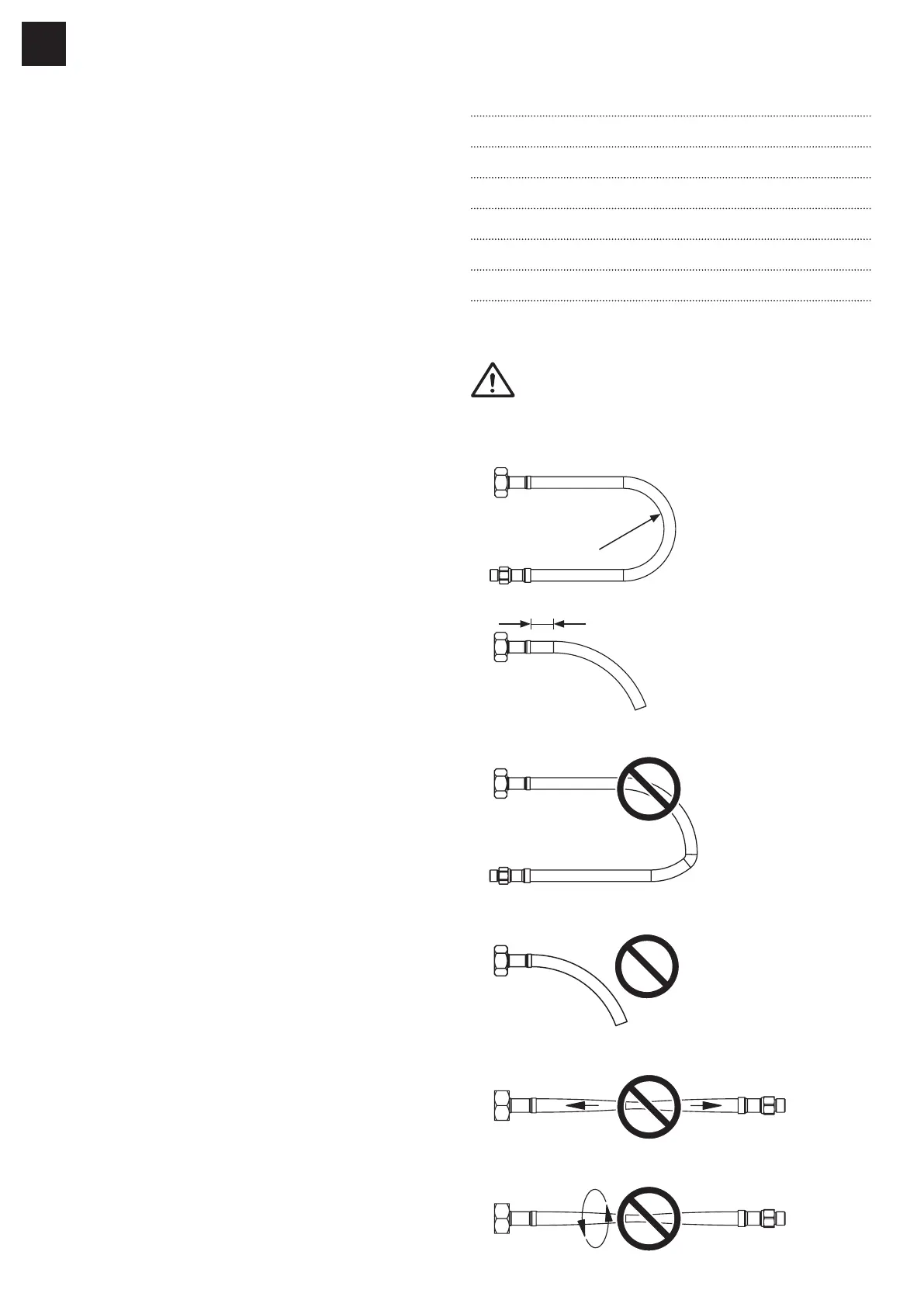

Minimum bending radius after installation.
∅
min.
∅
min :
DN 6 =
∅
50 mm
DN 8 =
∅
60 mm
DN10 =
∅
70 mm
DN13 =
∅
90 mm
min. 2
∅
Without bends after installation.
Without bend immediately after connection.
Without tension after installation.
Without torsion after installation.
