Freeform F100 - Assembly Instructions

Please note: No.1 Fitness takes no responsibility for any injury or illness resulting from the use of this
product, as the onus is on the user to ensure that all safety precautions possible are used prior to use
ASSEMBLY INSTRUCTIONS

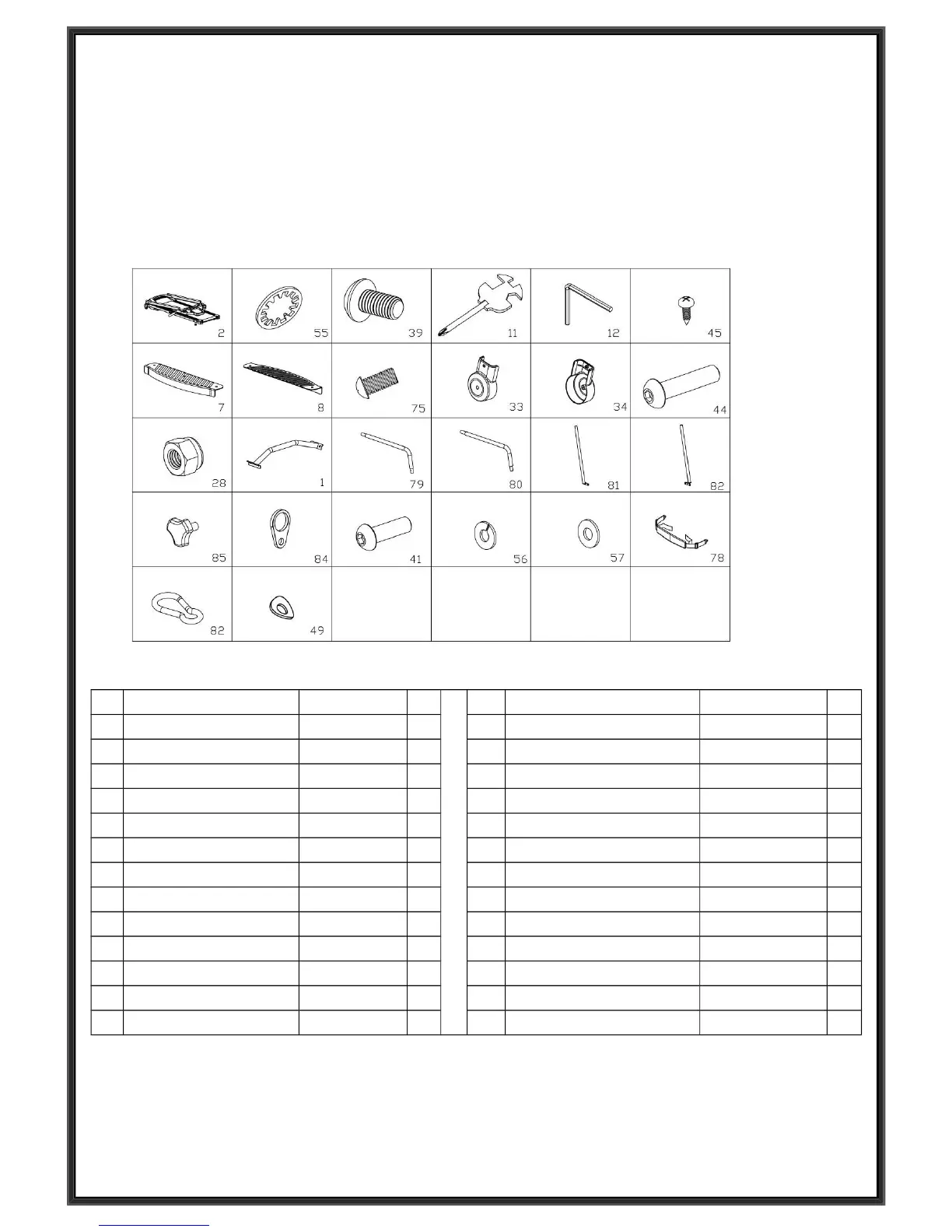

When you open the carton, you will find the below parts for assembly:
Parts List:
NO.
DESCRIPTION
SPE. QTY NO.
DESCRIPTION
SPE. QTY
2 MAIN FRAME 1
55
LOCK WASHER 8 12
39
BOLT M8*15 8
11
WRENCH W/ SCREW DRIVER S=13
、
14
、
15 1
12 5# ALLEN WRENCH
5mm
1 45 SCREW ST4.2*15 6
7
LEFT FOOT PEDAL 1 8 RIGHT FOOT PEDAL 1
75
BOLT M5*12 4 33 LEFT SIDE COVER 1
34 RIGHT SIDE COVER 1 44 BOLT M8*50 4
28 NUT M8 4 1 CONNECTING TUBE 1
79
LEFT HANDLEBAR
1 80 RIGHT LEFT HANDLEBAR 1
81 LEFT SUPPORT TUBE 1 82 RIGHT SUPPORT TUBE 1
85 TRIANGLE KNOB M6*10 6 84 HOOK 2 2
41 BOLT M8*25 4 56 SPRING WASHER 8 4
57 WASHER 8 4 78 SAFETY BAND 1
82 HOOK 2 49 ARC WASHER 8 8
