Assembly tools:
5#Allen wrench 5mm 1pcs
、
COMBINATION WRENCH W/SCREW DRIVER: 13mm, 14mm, 15mm 1pcs.
Notice: Do not power up the unit before assembly is complete.

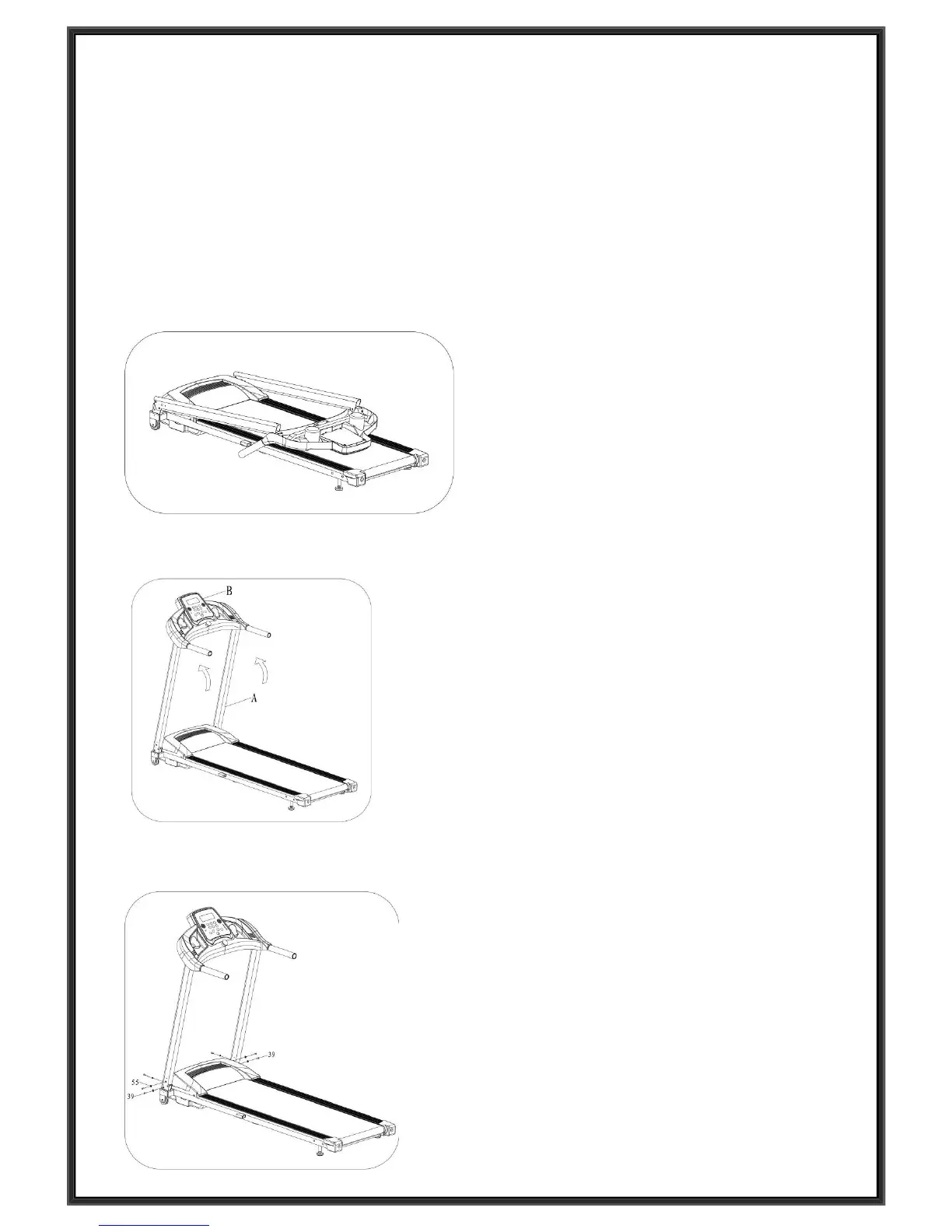

Step 1:
Step 2:
Step 3:
Open the carton， and carefully remove all
the parts from the box.
Lift up the Console (A) and upright supports (B)
in the direction indicated by the arrows.
Note: Be careful when putting the Console in
place. There are wires running through the
uprights when lifting please ensure the wire is
not being pinched. Hold the uprights to prevent
the console falling until it has been secured as
per step 3
Use the 5# Allen wrench and M8*15 bolt
(39) and lock washer (55), lock the upright
tube onto the main frame.
Notice: Support the Upright to avoid it falling
down.
